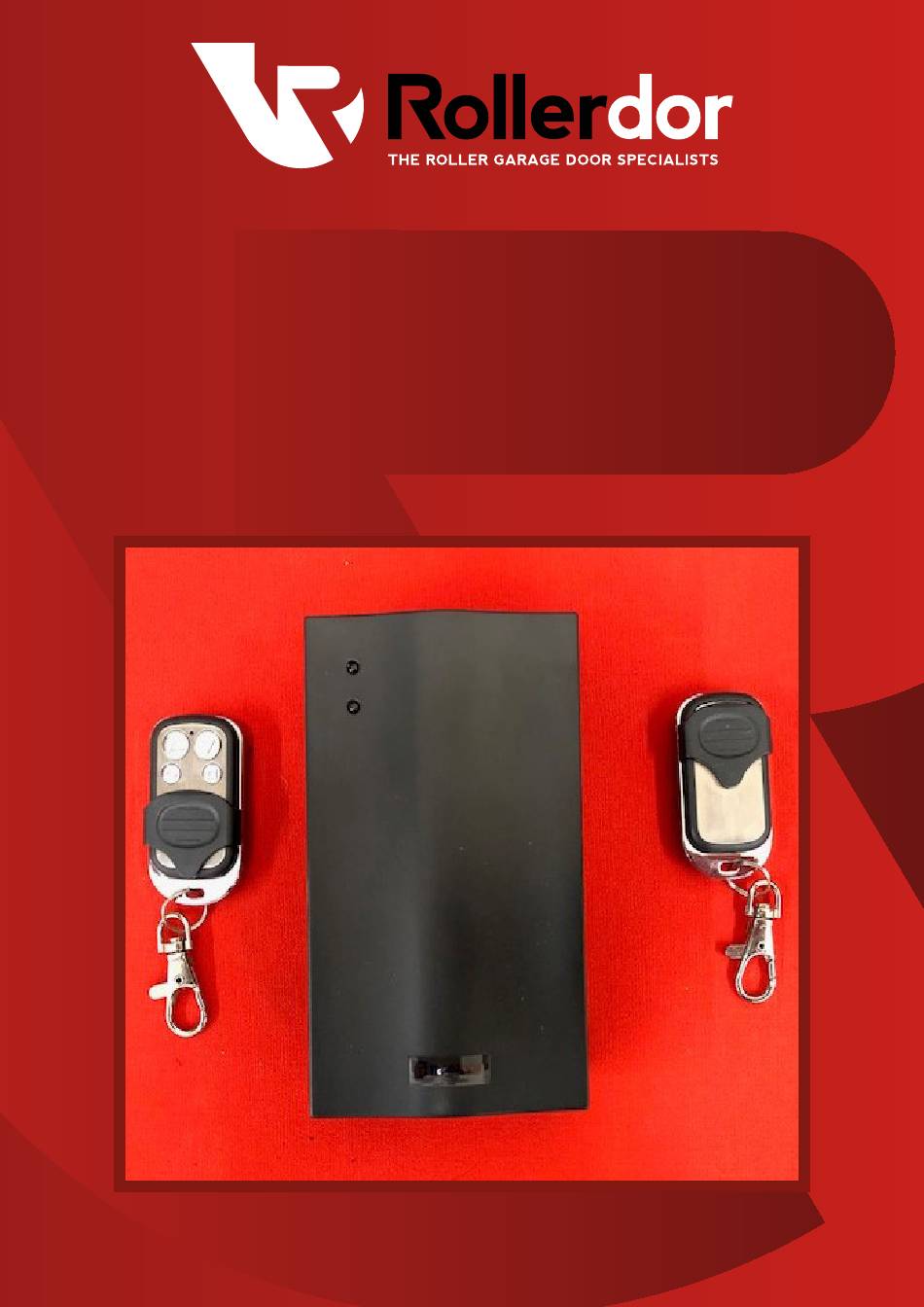

- Page 1 Rollerdor RD1X2 Control Box, Edition 2022/1 RD1X2 Control Box Installation guide for Roller Shutters with no vehicle/pedestrian access Edition 2022/1...
- Page 2 1. INSTALLING RECEIVER BOX Remove the lid of the receiver box by squeezing each side at the bottom where the wires come into the box (fig.1A). Place the Receiver box on the wall with the cable pointing downwards at a comfortable height to operate the push buttons, but out of the easy reach of children.
- Page 3 Rollerdor RD1X2 Control Box, Edition 2022/1 2. PROGRAMMING REMOTE CONTROL HANDSETS Slide the cover down on the remote control handset and you will see there are four buttons (fig.4). Press and hold the top left button ( ), then press and...
- Page 4 3. OPTIONAL EXTRAS HARD WIRED ROCKER / KEY SWITCH WIRING AS FOLLOWS: (fig.6) Receiver Box Green 6 Block Terminal U – Up wire from switch D – Down wire from switch G – Common wire for the supply to the switch fig.6 Up wire Rocker Switch (fig.7):...
- Page 5 10 & 12 Jarrold Way Bowthorpe Employment Area Norwich Norfolk NR5 9JD +44 (0)1603 743215 sales@rollerdor.net www.rollerdor.net Company Registration Number. 10676267 Registered Office Address: Rollerdor Ltd, Bankside 300 Peachman Way, Broadland Business Park, Norwich, Norfolk, United Kingdom, NR7 0LB Edition 2022/1...
