Vermeer SC252 Quick Start Manual

Hide thumbs Also See for SC252:

Advertisement

Table of Contents

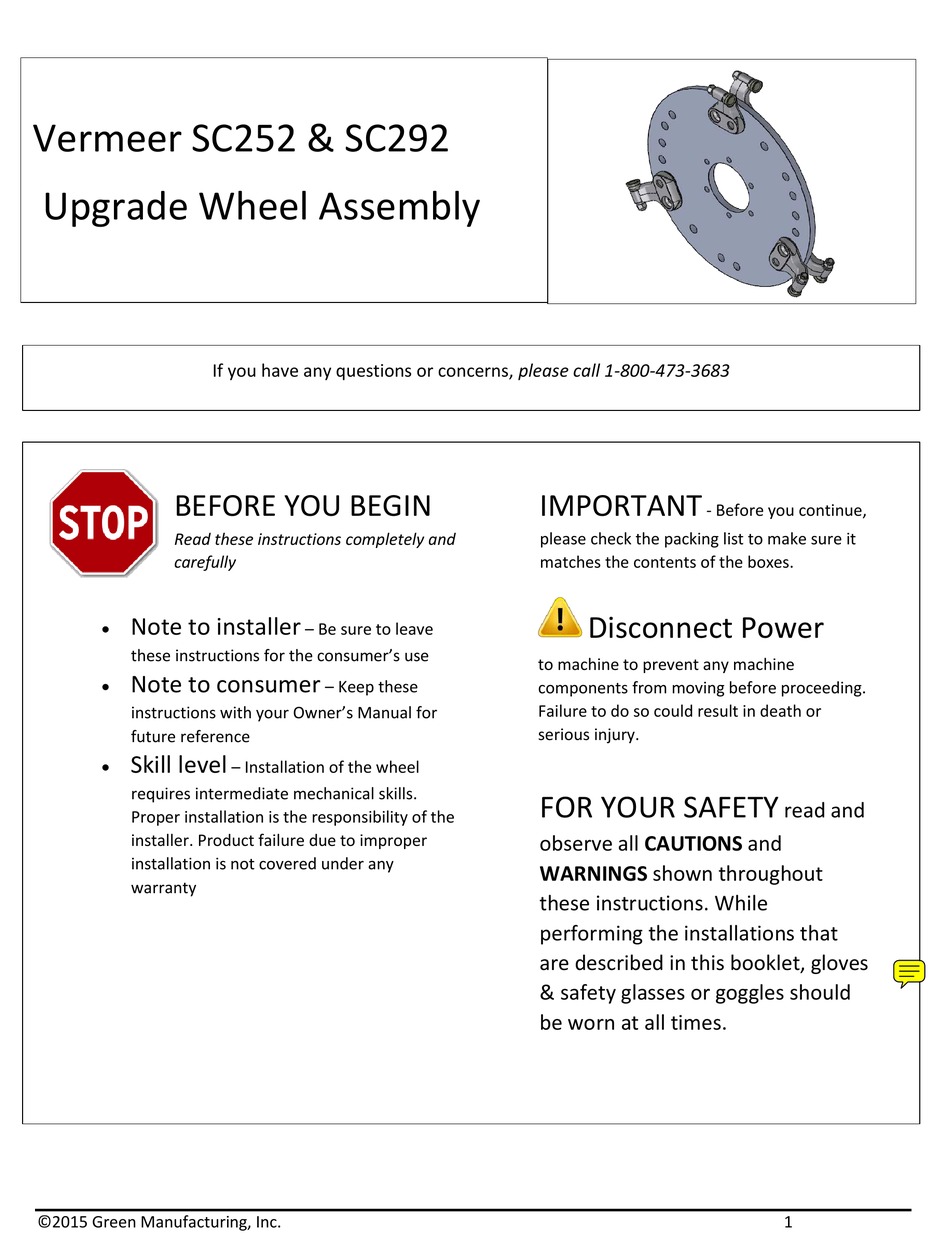

Vermeer SC252 & SC292
Upgrade Wheel Assembly
BEFORE YOU BEGIN
Read these instructions completely and
carefully
Note to installer
these instructions for the consumer's use
Note to consumer
instructions with your Owner's Manual for
future reference
Skill level
requires intermediate mechanical skills.
Proper installation is the responsibility of the
installer. Product failure due to improper
installation is not covered under any
warranty
©2015 Green Manufacturing, Inc.
If you have any questions or concerns, please call 1-800-473-3683
– Be sure to leave
– Keep these
– Installation of the wheel
IMPORTANT
- Before you continue,
please check the packing list to make sure it
matches the contents of the boxes.
Disconnect Power
to machine to prevent any machine
components from moving before proceeding.
Failure to do so could result in death or
serious injury.
FOR YOUR SAFETY
observe all CAUTIONS and
WARNINGS shown throughout
these instructions. While
performing the installations that
are described in this booklet, gloves
& safety glasses or goggles should
be worn at all times.
read and
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC252 and is the answer not in the manual?

Questions and answers

Related Manuals for Vermeer SC252

Summary of Contents for Vermeer SC252

  • Page 1 Vermeer SC252 & SC292 Upgrade Wheel Assembly If you have any questions or concerns, please call 1-800-473-3683 BEFORE YOU BEGIN IMPORTANT - Before you continue, please check the packing list to make sure it Read these instructions completely and matches the contents of the boxes.
  • Page 2 Installation Preparation TOOLS SUPPLIED: ½” Drive, ½” 6pt Impact Allen Wrench Socket TOOLS YOU WILL NEED: 5/8” Socket Wrench ½” Drive Torque Wrench Green-Seize™ TORQUE SETTINGS: 900 Series Nut: 35ft. lbs. (47Nm) LoPro™ Bolt (lubricated with Green-Seize™): 180 to 200ft. lbs. (244 Nm) MANUFACTURER’S PARTS LIST: Part Number Description...
  • Page 3 Table of Contents Assembly Instructions ................ 4 Upgrade Assembly Diagram ............... 7 Greenteeth® Guarantee ..............8 Material Safety Data Sheet ..............9 ©2015 Green Manufacturing, Inc.

  • Page 4: Assembly Instructions

    Assembly Instructions 1. Locate the pocket set with straight pockets on your wheel. Make sure to refer to the Upgrade Assembly Diagram found on page 7 for the next 28 steps. 2. Remove one set of straight pockets (Notice you will be leaving this area blank). 3.
  • Page 5 18. Remove the one set of straight pockets (Notice you will be leaving this area blank). 19. Proceed to the pocket set below the space left empty in step 18. This should be an angle pocket set. 20. Remove the one set of angle pockets (Notice you will be leaving this area blank). 21.
  • Page 6 32. Once all pockets and teeth are torqued properly start the machine engine and engage the wheel. 33. Ensure there are no noises emanating from the upgrade installation. ©2015 Green Manufacturing, Inc.

  • Page 7: Upgrade Assembly Diagram

    Upgrade Assembly Diagram ©2015 Green Manufacturing, Inc.

  • Page 8: Greenteeth® Guarantee

    GREENTEETH™ GUARANTEE NEW SETUPS AND FIRST TIME CUSTOMERS: If you purchase a Greenteeth® setup and are not completely satisfied with its performance, please contact Green Manufacturing at 800.473.3683 to request a return authorization within 30 days of purchase date for a product refund or exchange. PRODUCT QUALITY: We strive to provide exceptional quality product.

  • Page 9: Material Safety Data Sheet

    MATERIAL SAFETY DATA SHEET I - PRODUCT IDENTIFICATION Trade Name: Tungsten Carbide Chemical Family: Refractory Metal Alloy Chemical Formula: WC CAS#: 12070-12-1 II - HAZARDOUS INGREDIENTS Hazardous Components % OSHA/PEL ACGIH/TLV Sec. 302 Sec. 304 Sec. 313 Tungsten Carbide 0-100 N/E N/E No No No Tungsten compounds 0-100 5 mg/m3 C - 1 0 mg/m3 No No No HM IS Ratings (0-4): Health: 3 Flammability: 0 Reactivity: 0 HM IS Protective Equipment: H: glasses, gloves, clothing, combo respirator...
  • Page 10 Target Organs: May affect the respiratory system. Carcinogenicity: NTP: No IARC: No OSHA: No EMERGENCY AND FIRST AID PROCEDURES: INHALATION: Remove victim to fresh air. Keep warm and quiet, give oxygen if breathing is difficult and seek medical attention. INGESTION: If conscious, give 1-2 glasses of milk or water and induce vomiting (Never induce vomiting or give anything by mouth to an unconscious person).
