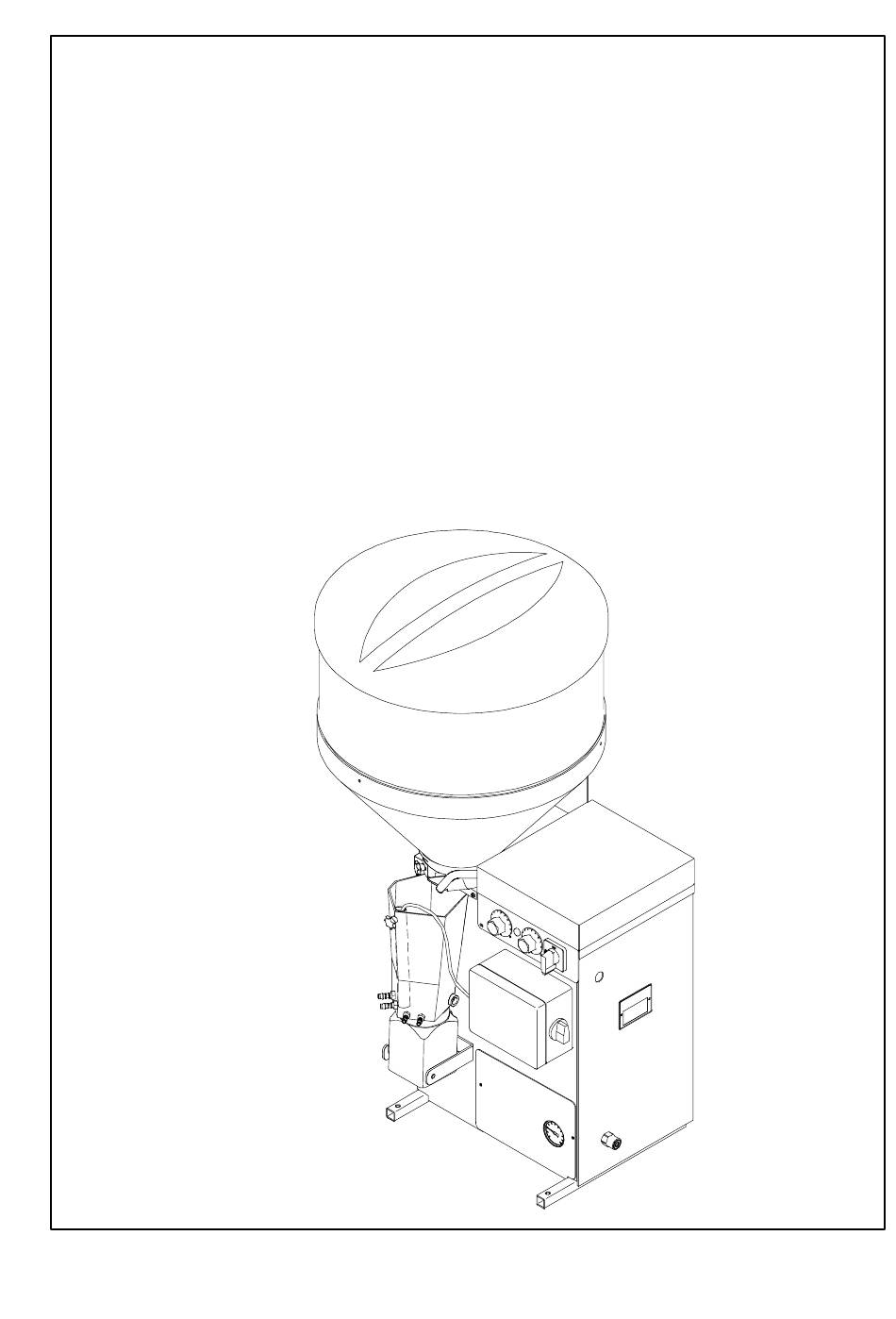

- Page 1 December 2002 Instruction Manual Automatic Lamb Feeder TAP0- -EZ1- -38- -M TAP0- -EZ1- -32- -M TAP0- -EZ1- -28- -M TAP0- -EZ1- -27...
-
Page 3: Table Of Contents
Table of contents 1 Introduction ............1.1 Safety Instructions . -
Page 4: Introduction
Introduction 1 Introduction 1.1 Safety Instructions Be sure to read and follow all instructions contained in this manual before connecting and using the automatic feeder. Use the appliance only to feed lambs or kids. Servicing and installation of the automatic feeder has to be restricted to qualified and authorised service personnel. -
Page 5: Information Signs On The Automatic Feeder
Introduction 1.3 Information Signs on the Automatic Feeder Before connecting the automatic feeder to the mains supply and acti- vating the heating (see chapter 4 “Starting Up the Automatic Feeder”, page 12), carefully read the operating instructions. Any questions about this product? Then, feel free to get in touch with us. -
Page 6: Components Of The Automatic Feeder
Components of the Automatic Feeder 1.4 Components of the Automatic Feeder 1 = Milk powder hopper 9 = Pilot lamp for heating 2 = Dosing slide 10 = Heating thermostat 3 = Pressure tube 11 = Main switch ON/OFF (not for TAP0- -EZ1- -27) 4 = Mixer 12 = Rating plate... -
Page 7: Specifications Of The Automatic Feeder
Specifications of the Automatic Feeder 2 Specifications of the Automatic Feeder Please observe the information on the rating plate located at the left of the chassis! Electrical connection TAP0- -EZ1- -27 230V / L / N / PE, 50 Hz, 16 A TAP0- -EZ1- -28- -M (only for USA and Canada) 240V / L1, L2 / Grd / 60 Hz, 15 A TAP0- -EZ1- -32- -M... -
Page 8: Locating The Automatic Feeder
Locating the Automatic Feeder 3 Locating the Automatic Feeder 3.1 Local Electrical Connection Refer installation of the local electrical connection to qualified electricians. Observe local recommendations and protective measures. To operate the automatic fee- der, it is demanded to install a fault- -current circuit breaker (30 mA) in the main distribu- tion frame. -
Page 9: Water Supply
Water Supply 3.3 Water Supply Connect the 1/2“ water hose with the 3/4“ screw- -type hose coupling to the water connection located at the right of the automatic feeder. The water pressure supplied by customer has to be between 2,5 and 6 bar. Note : To ensure troublefree functioning of the automatic feeder, take care that the water pressure does not fall below 2,5 bar! -
Page 10: Mounting The Feeding Station
Mounting the Feeding Station 3.4 Mounting the Feeding Station Install the feeding station 30 - - 40 cm above the stable ground. Mount the teat approx. 15 cm above the suction hose connection of the mixer. Secure the suction hose in such a way that the mixer jar can easily be tilted in forward position. -
Page 11: Mounting The Top Section Of The Milk Powder Hopper
Mounting the Top Section of the Milk Powder Hopper 3.5 Mounting the Top Section of the Milk Powder Hopper Screw the top section together and place it onto the milk powder hopper. Only use the original milk powder hopper! -
Page 12: Starting Up The Automatic Feeder
Starting Up the Automatic Feeder 4 Starting Up the Automatic Feeder 4.1 Filling the Boiler with Water Warning: Before switching the heating on, fill up the boiler with water, otherwise the boi- ler will be damaged. There will be no guarantee for a reliable functioning of the automa- tic feeder. -
Page 13: Setting The Concentration
Starting Up the Automatic Feeder Do not put paper or other foreign matter into the powder hopper. For those models being equipped with a lid protection, check the following: - - The lid of the powder hopper has to keep the fuse switch pressed. - - In case the lid should not be mounted properly, the milk powder will not be dispen- sed. -
Page 14: Avoiding Measurement Errors
Starting Up the Automatic Feeder The thermostat for minimum operating temperature is activated as soon as the water tempe- rature in the boiler falls below the preset temperature. The minimum operating temperature has always to be 3 C below the boiler heating tempe- rature, in order to avoid overlapping in the adjustment range. -
Page 15: Functionality
Functionality 5 Functionality 5.1 Program Switch Positions 1 = Option 2 = Mixer ON 3 = Water conveyance When the pressure tube is located outside the mixer, the water will flow incessantly. 4 = Automatic mode The powder, the water and the mixer are activated simultaneously. The water tank or the pressure reducer are intended to ensure constant flow velocity. -
Page 16: Care And Maintenance Of The Automatic Feeder
Care and Maintenance of the Automatic Feeder 6 Care and Maintenance of the Automatic Feeder Always keep the automatic calf feeder clean and dry. Never spray it with water! CAUTION! In order to avoid injuries, before carrying out any kind of operation on the milk powder outlet or on the mixer, it is imperative to make the automatic feeder currentless by turning the main switch to po- sition 0/OFF or by pulling the mains plug. -
Page 17: Regular Check
Care and Maintenance of the Automatic Feeder 6.2 Regular Check Clean the mixer daily. Remove the suction hoses from the teat and suspend them. Turn the program switch to 3. Fill the mixer with water until the pressure switch interrupts water con- veyance. -
Page 18: In Case Of Frost Risk
Care and Maintenance of the Automatic Feeder 6.3.1 In case of Frost Risk Drain the whole water from the boiler and the pressure reducer. Remove the boiler hose and hold the hose towards the bottom to drain the water. Remount the boiler hose. Remove the whole pressure reducer and drain the water. -
Page 19: Troubleshooting
Troubleshooting 7 Troubleshooting We assume that the automatic feeder has been installed according to the information contained in this instruction manual and that the setting has been carried out cor- rectly. The causes are listed according to their frequecy. Therefore, during troubleshooting always start with the first one. - Page 20 Index milk powder hopper, capacity, 7 milk powder outlet, check, 16 address, Förster- - Technik, 5 mounting the feeding station, 10 the suction bracket, 10 the top section of the milk powder hopper, 11 boiler, 7 overvoltage, 8 care and maintenance, 16 components of the automatic feeder, 6 pressure reducer, 9 connection...
- Page 21 Index water supply, 7, 9...
-
Page 22: Ec Declaration Of Conformity
Annex EC DECLARATION OF CONFORMITY Förster Technik GmbH Gerwigstr. 25 D- -78234 Engen Tel.: +49 (0)7733/9406- -0 Fax: +49 (0)7733/9406- -99 declare that our products with the designation: TAP*- -EZ1- -27 TAP*- -EZ1- -28- -M TAP*- -EZ1- -32- -M TAP*- -EZ1- -38- -M including all accessories, *with chassis size 0 or 1 to which this declaration relates are in conformity with the following relevant regulations: 292- -1 / 11.91...
