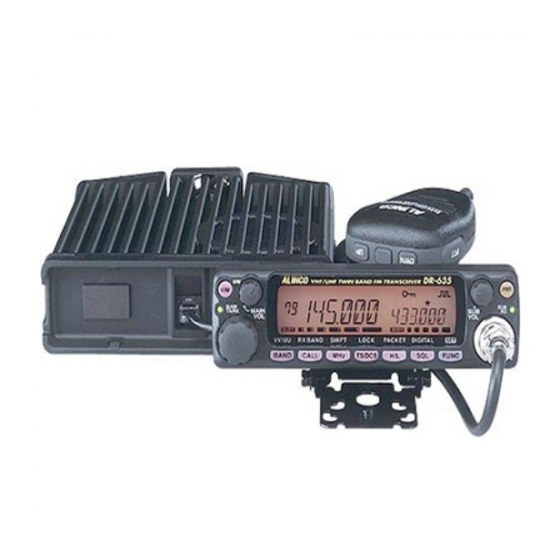

Alinco DR-635 Quick Start Manual

Cross-band repeaters

Hide thumbs Also See for DR-635:

Download this manual

Setting up & Operating

A Cross-Band Repeater

W0KAH

Need help?

Do you have a question about the DR-635 and is the answer not in the manual?

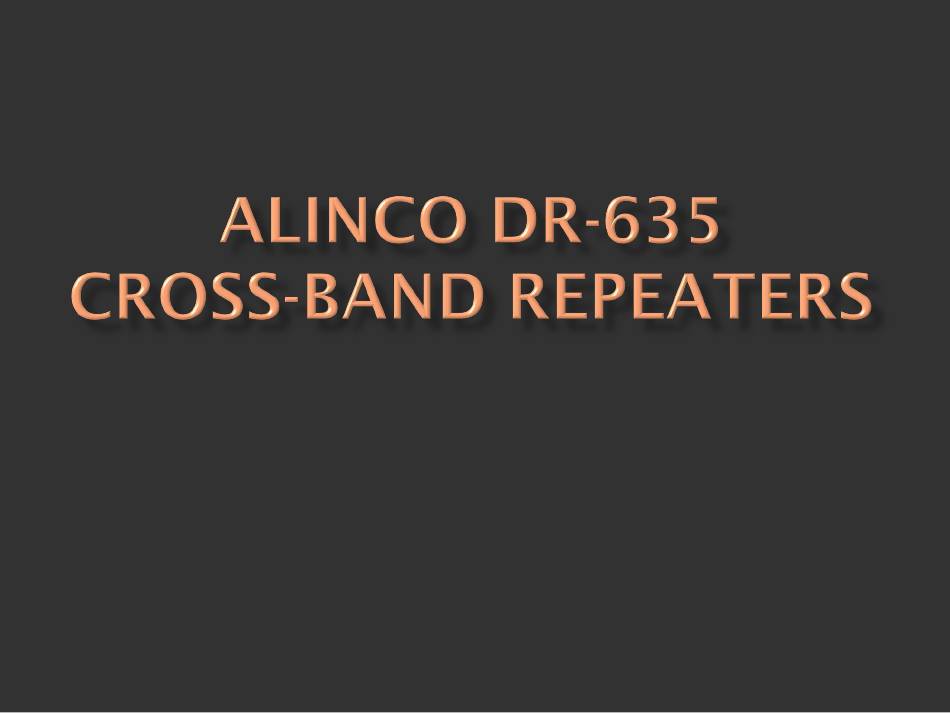

Page 1 Setting up & Operating A Cross-Band Repeater W0KAH...
Page 2 Set Band A to a VHF frequency  Set Band B to a UHF frequency, set CTCSS,  DCS or DTCS on and low power Turn radio off ...
Page 3 Hold down Band button and turn radio on  It’s now in CBR  To Exit CBR, turn radio off, hold down Band  button and turn radio on...
Page 4 Note that the DR-635 will flip-flop frequencies such that the Transmit frequency will always show on the Left/Main side of the display You MUST ID yourself, no automatic ID...
Page 6 Congratulations you are a Repeater Control  Operator! You must ID for the repeater (the D710 & V71  can do this for you) if your rig doesn’t do it. You could voice ID; W0KAH via W0KAH  cross-band repeater, but that only handles your HT and the VHF transmit, you’ll need to switch freq to 146.67 &...
Page 7 USE CTCSS, DCS, DTCS etc. to make UHF  private. Otherwise other users must ID for the repeater  as well, both directions. You’re responsible for the repeater and must  shut it down if it causes interference (repeating intermod for example). Don’t rebroadcast other services (except WX ...
Page 8 When in CBR, the “other” repeater’s carrier  must drop in order to allow your mobile rig to switch directions, until it drops, you can only listen because your mobile rig is transmitting to you. Use the lowest power on UHF, and as low as ...
