- Page 1 Ultrasonic transmitter DBT10 SONOCHEK Operating Instructions Issue: 9/14/2018 Document number: LIT 06.203.EN Original instructions...
- Page 2 MANUFACTURER Fluke Deutschland GmbH Freisinger Str. 34, 85737 Ismaning, Germany + 49 89 99616-0 www.pruftechnik.com Legal notices The product described in these instructions and this manual are copyright protected. The authors reserve all rights. The manual must not be copied, reproduced, translated or made available to third parties in any other form - in part or in full - without prior approval.
-
Page 3: Table Of Contents
Content Notes about the operating instructions ....................5 General ............................5 Symbols Used ..........................5 Device function and setup ........................6 Intended use........................... 6 Displays, operating keys and other device parts ................6 Startup and device operation ....................... 7 Insert batteries..........................7 Switching on and adjusting the ultrasonic transmitter .............. - Page 4 This page was intentionally left blank.
-
Page 5: Notes About The Operating Instructions
Notes about the operating instructions Ultrasonic transmitter DBT10 Notes about the operating instructions 1.1 General Thank you for choosing the ultrasonic transmitter DBT10. This document is part of the equipment and is therefore always to be stored accessibly nearby for any user. It contains important information regarding safe operation as well as all information for a proper and efficient use. -
Page 6: Device Function And Setup

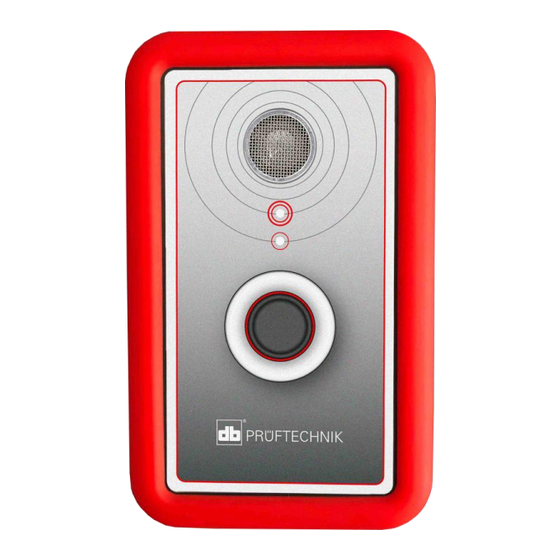

Ultrasonic transmitter DBT10 Device function and setup Device function and setup 2.1 Intended use The ultrasonic transmitter DBT10 can be used to detect leaks at windows, doors, cabins, climatic test cabinets, vehicles or containers. The ultrasonic transmitter sends signals in the ultrasonic range. -
Page 7: Startup And Device Operation
Startup and device operation Ultrasonic transmitter DBT10 Startup and device operation Injuries are possible! High sound pressure levels can damage hearing. Do not hold the transmitter directly up to your ears. Use hearing protection if necessary. Device damage is possible! Insert the batteries into the battery compartment as shown. -
Page 8: Cleaning, Maintenance, Troubleshooting And Support
Ultrasonic transmitter DBT10 Cleaning, maintenance, troubleshooting and support Cleaning, maintenance, troubleshooting and support Injuries are possible! An incorrect application of the ultrasonic transmitter DBT10 may pose a hazard to the user. Do not open the housing. The ultrasonic transmitter does not contain any device parts to be cleaned, maintained or repaired by the user. -
Page 9: Disposal
Disposal Ultrasonic transmitter DBT10 Disposal Electrical and electronic equipment may pose health and environmental risks if disposed of improperly. For this reason, it must not be disposed of as general household trash according to the WEEE directive 2012/19/EU (Waste Electrical and Electronic Equipment Directive), but rather must be handed over separately to designated collection points or sent back to the manufacturer. -
Page 10: Technical Data
Ultrasonic transmitter DBT10 Technical data Technical data The ultrasonic transmitter DBT10 can be used to detect leaks at windows, doors, cabins, climatic test cabinets, vehicles or containers. The ultrasonic transmitter sends signals in the ultrasonic range. If it is positioned in a closed system to check for leaks, the signals pass through unsealed points in the system outwards and can be detected there by the SONOCHEK ultrasonic measuring device.
