Kemptville District Minor Hockey Association

Time Clock Model Code 871 – Hockey – Quick Start Guide

This information is about how to operate the MPC-5 and MPC-6 controllers made by Nevco.

This controller has an LED screen for showing game information and input information.

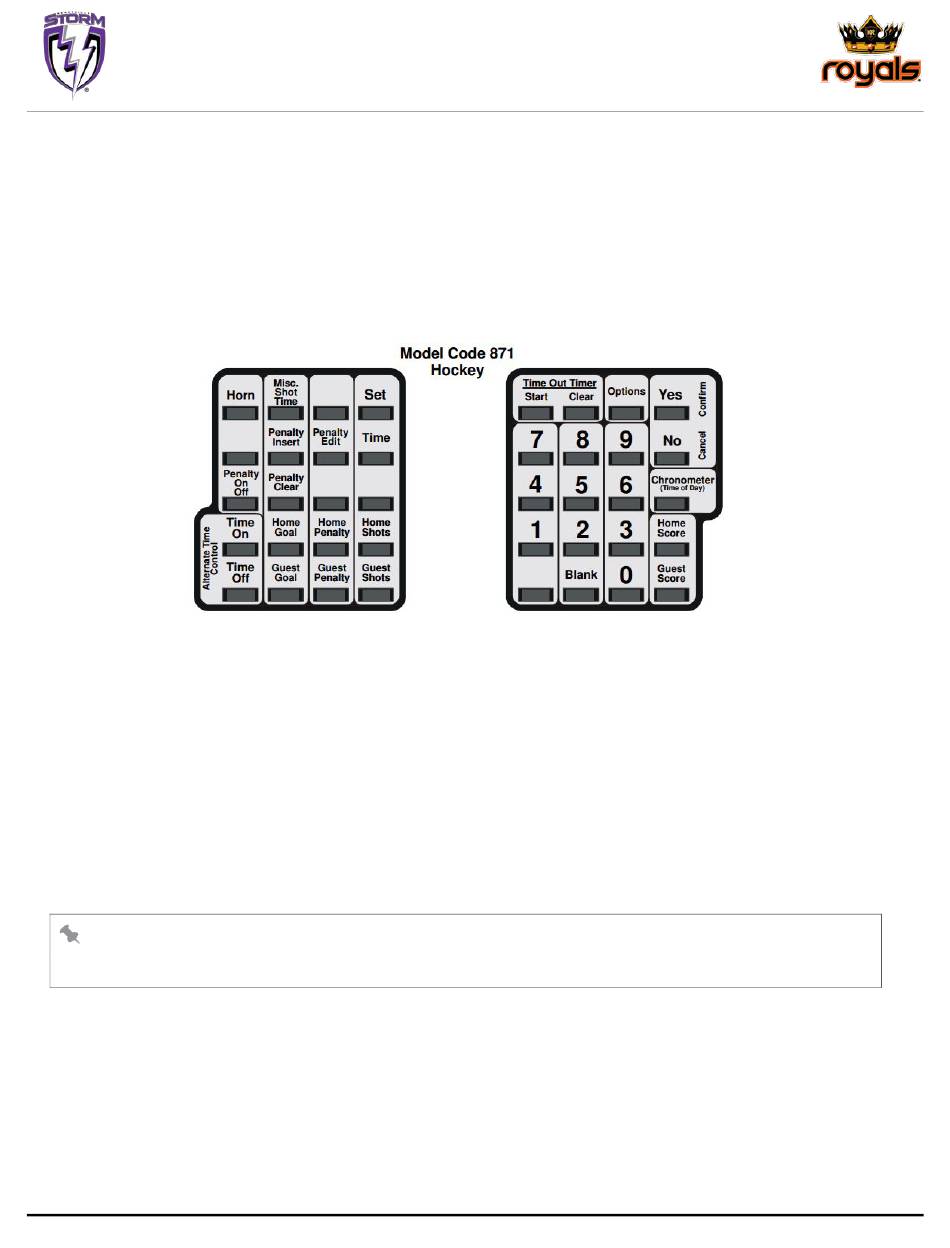

Controller Layout

Power Up

To power on, make sure the controller is plugged in, and flip the power switch on the side to ON.

The controller will ask you if you want to start where you left off. Press [YES] or [NO], depending on what you

want. Usually, answer [NO] ... unless there was a power outage or issue requiring starting where you left off.

If you press [NO], the controller will introduce itself and ask for a model code. At this point, enter the model

code of 871 using the number pad.

You are then prompted if you want to use penalty time outs. Usually, answer [YES] to this question.

If you have the handheld time switch, you may see this message:

This is telling you to flip the switch on the handheld switch to OFF.

SWITCH OFF.

To set the time, press the [SET] button, then the [TIME] button. Enter the needed time using the numeric

keypad, remembering that as you enter, the space will fill in right to left. This means if you are trying to enter

three (3) minutes, enter [0], [3], [0], [0], followed by [YES]. The display will then ask you for the period number,

press the appropriate number. You don't need to press [YES] after the period number.

KDMHA – Time Clock Model Code 871 – Quick Start Guide

PLEASE TURN YOUR TIME

Page 1 of 4

Table of Contents

Do you have a question about the royals 871 and is the answer not in the manual?

Page 1 Kemptville District Minor Hockey Association Time Clock Model Code 871 – Hockey – Quick Start Guide This information is about how to operate the MPC-5 and MPC-6 controllers made by Nevco. This controller has an LED screen for showing game information and input information. Controller Layout Power Up To power on, make sure the controller is plugged in, and flip the power switch on the side to ON.
Page 2 Kemptville District Minor Hockey Association 1/10 of a Second 1/10 of a second will automatically be turned on. If you need to set the time to 1/10 of a second accuracy, add an extra digit with the .1 number to the SET TIME prompt. Example.
Page 3 Kemptville District Minor Hockey Association Editing a Penalty Press [HOME PENALTY] or [GUEST PENALTY], the penalty on line 1 for that team will appear. If the line you want is different, keep pressing the penalty button until the correct penalty shows up. Once at the correct penalty, press [PENALTY EDIT].
Page 4 Kemptville District Minor Hockey Association Interval Horn To set up the interval horn, press [SET], then [OPTIONS]. Answer [NO] to the questions asked until ENABLE is displayed, at which point, press [YES]. SEGMENT TIMER? The controller will ask you to set the time for This is where you set the interval time.
