Summary of Contents for HYBRID POWER POWER TOWER 120V

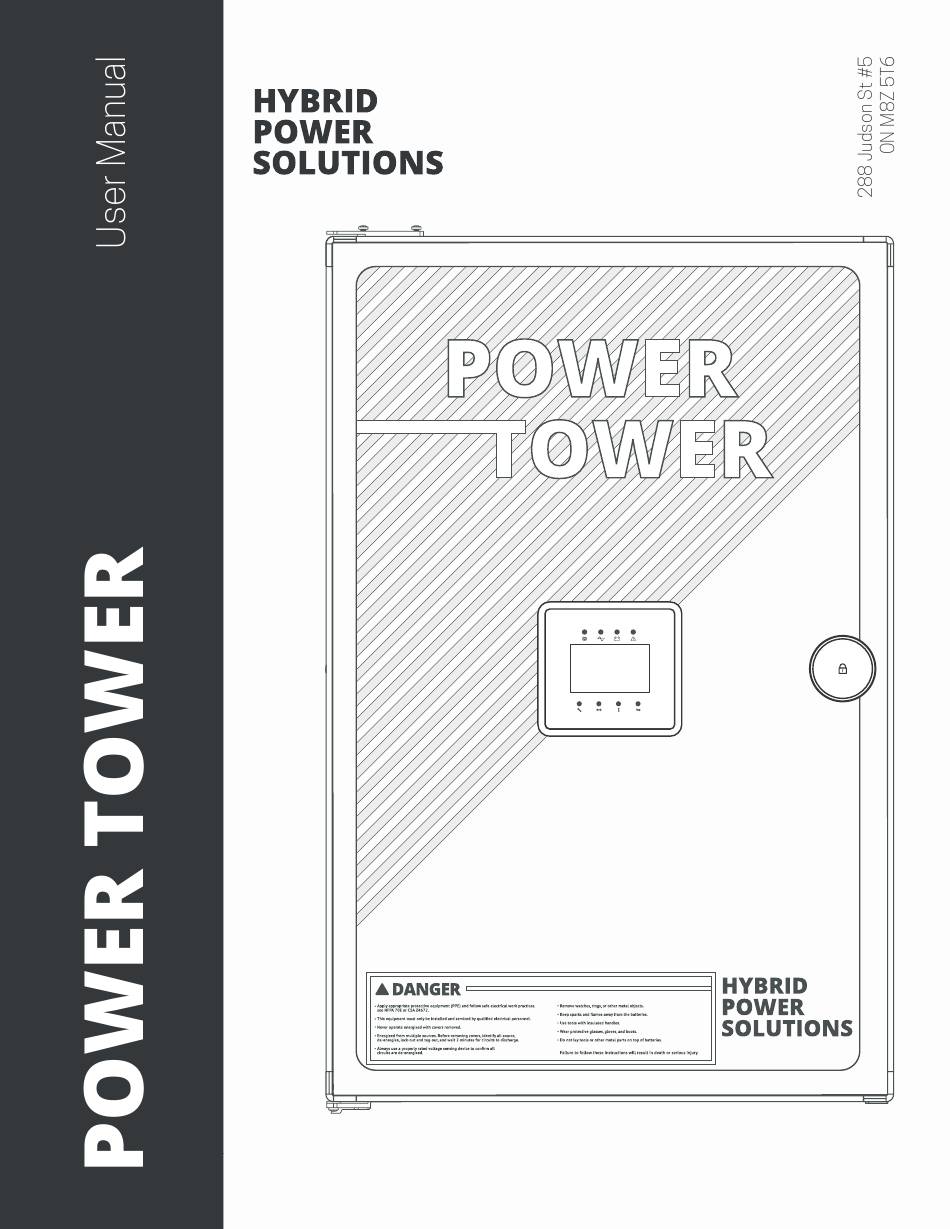

- Page 1 Manufactured by: CONF SELECT SELECT ENTER +1 (647) 347-6000 www.hybridpd.ca hybridps.ca Batt Pack Energy - User manual - English...
- Page 2 Batt Pack Energy - User manual - English...
- Page 3 SHOCK HAZARD: Possible shock or death if used improperly, when damaged or used by untrained personnel. ATTENTION: It is the customer’s and installer’s obligation to check local electrical requirements and certification requirements of all HPS purchased equipment. FLAMMABLE HAZARD: Lithium ion batteries contain flammable liquid electrolyte that may vent, ignite and produce sparks when subjected to high temperatures (>...
- Page 4 MANUAL INDEX Power Tower - User manual - English...
- Page 5 CONTENT PAGE Overview Safety Information Installation Grounding and solar wiring System configuration Specifications Warranty Disposal Appendix...
- Page 6 Power Tower - User manual - English...
- Page 7 All manuals are applicable under all operating conditions when installed in the End-Use system, unless otherwise stated. 1.3. Contact Details Hybrid Power Solutions Inc. Customer Service/ Technical Support 288 Judson St Unit #5, Toronto, ON M8Z 5T6...
- Page 9 2.1. General Precautions Before using the unit, read all instructions and cautionary markings on: 1. The Power Tower unit 2. The Power Tower Batteries 3. All appropriate sections of this manual CAUTION - To reduce risk of injury, charge only HPS Power Tower rechargeable batteries. Other types of batteries may rupture, causing personal injury and damage.
- Page 10 2.2. Personal Precautions NEVER smoke or allow a spark or flame in the vicinity of a battery or generator. USE CAUTION when working with metal tools on or around batteries. The potential exists to drop a tool and short-circuit the batteries or other electrical parts resulting in damage, injury or death. REMOVE personal metal items such as rings, bracelets, necklaces, and watches when working with the battery.
- Page 12 3.1. Unpacking and Inspection Carefully unpack the Power Tower from its shipping carton. Verify all of the items listed below are present. Please call HPS if any items are missing. • Qty 1 - Power Tower Unit • Qty 1 - User Manual •...
- Page 13 Note: Appliances like Air conditioners need at least 3 minutes to restart during a power outage. These systems bounce on and off (time is required to balance the refrigerant gas inside the circuit); so in order to protect your Air conditioner, please consult the Air conditioner manufacturer whether they have already provided a time delay function before installing.
- Page 14 AC Output Wiring Instructions: Step 1: Disconnect the unit from the battery by removing the battery cables. Turn the Power Tower OFF before disconnecting the batteries. Disconnect any inputs if present. Turn off main output breaker on the inside of the cabinet. Step 2 (120V Version): Connect the GND (green/yellow), Line (black), and neutral (white) wires from the AC output to the proper circuit breaker panel with the panel OFF.
- Page 15 Step 3: Wire the L14-30P based on the following: 120V Model: • Connect L1 to X • Connect N to W • Connect Ground to G Always ensure the voltage measured between X and W is 120V. 120V/240V Model: • Connect L1 to X •...
- Page 17 Grounding of the Power Tower should reflect local electrical codes and installation location and application requirements. The following should be used as a general rule but should be confirmed by local electrical codes. 4.1. Grounding 4.1.1. When Earth Ground is Available When a proper ground to earth is available, the Power Tower grounding point should be tied to earth.
- Page 18 4.2.1. Adding Additional Solar or Wind Power If the provided solar power is insufficient, additional solar charging or wind charging capability may be added directly to the batteries. Chargers may be connected directly to the battery terminals or preferably, through an available DC input port below the Power Tower. When doing so, respect all parameters listed in the Power Tower Battery manual and all solar or wind charger installation requirements.
- Page 20 5.1. AC Charge Rate (setting 4 + 5) The default programming is set to 20A AC charging which will prolong the life of the battery but may not be appropriate for all users. If more than one battery is connected, then a higher charging amperage is acceptable and desired as each battery will split the available amperage.
- Page 21 5.3.1. Icon & Lighting Glossary LED INDICATOR GREEN LED lighting = PV (Solar) normal Led color: GREEN GREEN LED lighting = AC Line Mode On Led color: GREEN YELLOW LED lighting = Battery Inverter Mode On Led color: YELLOW RED LED lighting = Alarm / Error. Please contact HPS. Led color: RED ICON DEFINITION Power Tower Operating Normally...
- Page 22 ICON DEFINITION AC Voltage and Frequency display The load icon and level bar indicates the loading level (0~100%) Loading display Level of remaining battery capacity Battery voltage PV (Solar system) PV (Solar system) input voltage and Amperage PV (Solar system) power generation display MPPT solar charger working normally Inverter 5.3.2.
- Page 23 SETTING # DESCRIPTION OPTIONS Narrow Range Mode Wide Range Mode (95V - 131Vac)* (85V - 135Vac): Input Voltage Settings Four Options: 105Vac / 110Vac /115Vac / 120Vac * Output Voltage Setting 50Hz/60Hz/Automatic Output frequency setting 50/60Hz frequency output can be adjusted, as well as the adaptive AC input frequency.
- Page 24 SETTING # DESCRIPTION OPTIONS AC Charge ON AC Charge OFF AC Charge 20A / 35A / 50A AC Charger Current AC Priority DC Priority AC / DC Mode Selection Intelligent Mode Power Tower - User manual - English...
- Page 25 SETTING # DESCRIPTION OPTIONS 2.9Vdc / 3Vdc / 3.1Vdc DC Conversion 11.0 11.5 Voltage Point 12.0 *double values for 120V/240V output model 5.3.3. Operating Indicators AC MODE AC + PV MODE Voltage and Frequency change display Voltage and Frequency change display every 5 seconds.
- Page 26 FAULT MODE The upper left corner of the LCD shows the fault code and buzzer ringing. 000.00 5.3.4. Fault Code Troubleshooting CODE FAULT REASON AND SOLUTION Inverter operating environment is inadequate, insufficient Over temperature, ventilation and indoor temperature is very high. Close the fan fault inverter and wait for 10 minutes, after the inverter cools, start (alarm light on)
- Page 27 CODE FAULT REASON AND SOLUTION Semi-wave short The connecting load power is more than the inverter’s rated circuit power, after reducing load equipment quantity, the inverter (unusual load) will operate normally. Over charge Battery type selection incorrect; Charger damaged, please (alarm light on) consult HPS for help.
- Page 29 6.1. Line Mode Specifications MODEL POWER TOWER 120V POWER TOWER 120V/240V RATED POWER 6000W 6000W INPUT VOLTAGE WAVEFORM Sine wave(Utility or Generator) Sine wave(Utility or Generator) NOMINAL INPUT VOLTAGE 120Vac 120V/240V 85Vac±4%(NOR) 184Vac±4%(NOR) LOW LINE DISCONNECT 80Vac±4%(WID) 135Vac±4%(WID) 95Vac±4%(NOR) 194Vac±4%(NOR) LOW LINE RECONNECT 85Vac±4%(WID)
- Page 30 6.2. Inverter Mode Specifications (Battery as Source) MODEL POWER TOWER 120V POWER TOWER 120V/240V OUTPUT VOLTAGE Pure Sine Wave Power Tower 120V/240V WAVEFORM RATED OUTPUT POWER 6KW/18KW surge Pure Sine Wave POWER FACTOR 0.9 - 1.0 0.9 - 1.0 HOT1-N: 120V...
- Page 31 6.3. AC Charger Mode Specifications NOMINAL INPUT VOLTAGE 120V 120V/240V 95V - 131Vac(NOR) 180V - 270Vac(NOR) INPUT VOLTAGE RANGE 85V - 135Vac(WID) 140V - 270Vac(WID) 131Vac±4%(NOR) 270Vac±4%(NOR) HIGH VOLTAGE DISCONNECT 135Vac±4%(WID) 270Vac±4%(WID) 128Vac±4%(NOR) 260Vac±4%(NOR) HIGH LINE RECONNECT 132Vac±4%(WID) 260Vac±4%(WID) 95Vac±4%(NOR) 95Vac±4%(NOR) LOW VOLTAGE DISCONNECT 85Vac±4%(WID)
- Page 32 6.5. General Specifications INDICATORS LED+LCD Display PROTECTIONS Low battery, over charge, overload , over temp. OPERATING TEMPERATURE RANGE 0°C ~ 40°C STORAGE TEMPERATURE -15ºC ~ 60ºC OPERATION HUMIDITY 5% ~ 95% (non-condensing) Follow customer requirement: Inverter mode: the neutral and the earth joined ; EARTHING(ABYC STANDARD) Line mode: the neutral and the earth separated.
- Page 34 7.1. Manufacturer’s Warranty Coverage All Power Tower units supplied by Hybrid Power Solutions are tested for reliability and performance before delivery for correct function and condition. We grant no warranty or liability for defects and losses that occur during the use by the customer or the shipment of the unit.
- Page 35 This limited warranty and any dispute or claim arising out of or in connection with it (including non-contractual disputes or claims) is governed by and construed in accordance with the laws of the country or (if applicable) state or province where the warranted product is first installed. If any provision of this limited warranty is held by a court of competent jurisdiction to be unenforceable because it is invalid or in conflict with any law of any relevant jurisdiction, the validity of the remaining provisions shall not be affected, and the rights and obligations of the parties shall...
- Page 37 Please return the product to, or contact HPS for safe recycling. Disposal of the product at the end of its service life shall be done in accordance with applicable disposal regulations for electronic waste. The product must not be disposed of with the household waste. Power Tower - User manual - English...
- Page 39 9.1. How to Select and Configure PV Panels The following parameters can be found in each PV panel’s specification: • P : Max output power (W) • V : open-circuit voltage (V) • I : short-circuit current (A) • V : max power voltage (V) •...
- Page 40 The guideline to select and configure PV string is: • P shall be equal or slightly larger than the max. capacity of solar battery charger. Surplus total capacity of PV string does not help the solar charger’s capacity and only results in higher installation cost.
- Page 41 INVERTER Figure 8 Power Tower - User manual - English...
- Page 42 POWER TOWER...
