Edel
AIR

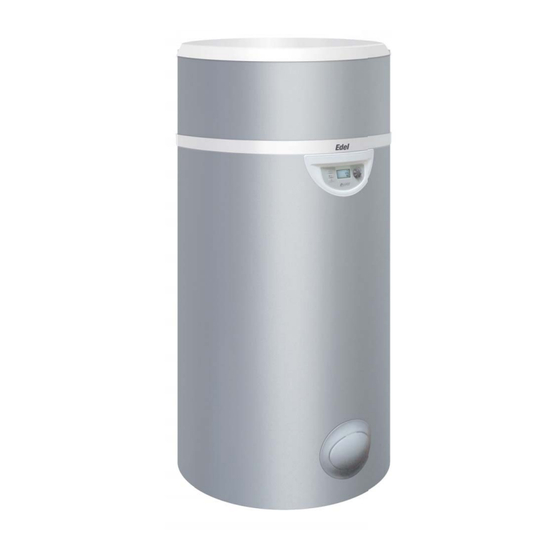

Air source heat pump water heater
for outdoor air or non-heated ambient air
Installation and operating instructions
Edel 200 AIR
Made
in France
Manual ref: 1895301
Edition n°: 15.342
The information contained in this document is non-contractual. Auer reserves the right to modify equipment and specifi cations for all our appliances without prior notice.
Advertisement
Table of Contents
Summary of Contents for Applimo Edel AIR
- Page 1 Edel Air source heat pump water heater for outdoor air or non-heated ambient air Installation and operating instructions Edel 200 AIR Made in France Manual ref: 1895301 Edition n°: 15.342 The information contained in this document is non-contractual. Auer reserves the right to modify equipment and specifi cations for all our appliances without prior notice.
-
Page 2: Table Of Contents
CONTENTS TABLE DES MATIÈRES 4.1 - Water circuit / condensate draining ..........15 4.2 - Air intake circuit..................15 1 SAFETY ............3 4.4 - Troubleshooting .................16 1.1 - Storage and transport ................3 4.5 - Sensor data ..................16 1.1.1 - On-site installation ....................3 4.5 - Parts ......................16 1.1.2 - Unpacking ........................ -
Page 3: Safety
Keeping the documents 1.1 - Storage and transport • This manual and any other relavant documents should be 1.1.1 - On-site installation given to the system user. The system user should keep these manuals for future reference. The upper covers of the appliance are not made to withstand force and should not be 1 SAFETY used for handling purposes. -
Page 4: Contents Of Package
1.1.3 - Contents of package 2 INSTALLATION • 1 domestic hot water heat pump • 1 bag of accessories containing three adjustable feet. 2.1 - Dimensions • 1 documentation pack containing an instruction manual, a user manual and a warranty card. 1.1.4 - Symbols used mesti h t ater ( H ) ut et Caution... -
Page 5: Air Connection
2.4 - Pipe dimensions 2.3 - Air connection The heat pump water heater must be connected using insulated 2.3.1 - Without piping air ducts which are 160mm inside diameter. • If installed without piping, the appliance must be installed in Ø160 PVC elbows enable you to rotate the position of the pipes non-heated premises (of at least 20m ) away from neighbouring connected to the appliance through 360°. -
Page 6: Plumbing Connections
• In all cases, whether the water is softened or not, it should 2.5 - Plumbing connections conform to the country’s hot water additional clause standards relating to: must • A pressure-relief valve (not included) be installed - chloride levels and set to 7 bar on the domestic cold water supply of the - resistivity (between 2200 and 4500 ohm/cm) appliance. -
Page 7: Condensates Drainage
1. Stop valve 2. Pressure reducing valve Domestic hot water (DHW) 3. Check valve 4. Insulating dieletric sleeve (not supplied) Condensates drainage hose 5. Pressure relief membrane valve (not supplied) 7. Run-o siphon 8. Domestic water expansion vessel 9. Thermostatic mixing valve Domestic cold water (DCW) 10. -
Page 8: Electricity Provider Contact
2.7.1.2 - Electricity provider contact To stop the electrical back-up running during peak time, connect the dry contact from your electricity meter to terminal n°1. - Contact open = electrical back-up not authorised to run - Contact closed = electrical back-up authorised to run If you choose load shedding level 1, the electrical back-up is prevented from running. -
Page 9: Set Up And Use
3.2 - Setting the language 3 SET UP AND USE The language must be selected when the appliance is switched on for the first time. Turn the dial to the left, select "English" and press he dial to confirm. The languages menu can be accessed at any time. -
Page 10: Setting The Water Temperature
3.4.1 Settings in PV mode When PV mode is activated, the water temperature can be set to a m o n d ay higher level to favourise operation during periods of photovoltaic Set hours - - : 3 2 production. 1. -
Page 11: Boost Function
3.6 - BOOST function 3.7 - Electric mode (for occasional use and guaranteed comfort) (to operate with electrical backup) The “BOOST” function temporarily forces electrical backup and Electric mode uses only the boiler to heat the water in the heat backup from the pump at the same time to speed up the rise pump water heater. -
Page 12: Installer Menu
Select ‘‘Yes’’ . 3.9 - Installer menu Press the dial to confirm. It may be necessary to adjust certain settings to optimise the Press the Menu key. heat pump water heater, performance of the depending on Set the desired domestic hot water temperature. how the appliance is installed. -
Page 13: Anti-Bact
3.9.2.1 - Cycle anti-légionellose ANTI-BACT T°C. MIN I T°C. MINI o ui A NT I-B AC T AN TI- BAC T Sélectionner le mode no n Sélectionner le nombre de jour • Par défaut cette fonction n’est pas active Valider Exemple : a nt i -b a ct = 8 , le cycle anti-légionellose se... -
Page 14: Locking The Keyboard
3.9.3 - Locking the keyboard 3.9.4 - Resetting parametres Resetting the parametres enables you to go back to the default Permanent and automatic locking settings. The “locking” option enables you to create three possible levels of Go to the “Installer” menu and turn the dial to “RESET”. locking for accessing the menus. -
Page 15: Maintenance And Repairs
4 MAINTENANCE AND 4.1 - Water circuit / condensate draining REPAIRS To check that condensates are draining correctly: In order to maintain e ciency and improve durability - Remove upper cover (see § “Electrical connections”). we advise that an annual maintenance check be - Check for blockages in the draining hole. -
Page 16: Troubleshooting
4.4 - Troubleshooting 4.5 - Sensor data • The heat pump is not working All 4 sensors have the same ohmic values. Resistance Check : (kOhms) • that the desired water temperature is higher than the temperature of the water in the tank. •... - Page 17 AIR SOURCE HEAT PUMP WATER HEATER 200L INSTALLER INSTRUCTIONS...
-
Page 18: Error Message Codes: Errors, Solutions And Operating In Case
4.7 - Error message codes: errors, solutions and operating in case of error NB : Errors can be dismissed by brie y pressing the dial (manual reset).. Temporary operation measures Display Error Probable causes Solutions while waiting for problem to be solved •Voltage too high on electrical network... - Page 19 Temporary operation measures Display Error Probable causes Solutions while wating for problem to be solved •The air and de-icing sensors are the wrong way round on the electronics board •The de-icing sensor and water sensors are the wrong way round •Reposition the temperature •Incorrect temperature sensor on the electronics boar...
-
Page 20: Warranty
5.1.2.2 - Handling 5 WARRANTY Cases (unlimited) where warranty is void: • Any damage sustained by impacts or falls during handling after The tank is guaranteed against breakage for a period of five (5) years, delivery from the factory. starting from the date the appliance was activated, if the warranty •... -
Page 21: Accessories
5.1.2.6 - Accessories 6.2 - Technical data • The warranty does not cover defects resulting from: - fitting accessories which do not comply with our recommendations, Heat Pump Water Heater - using accessories which were not provided by us. Plastic Outer casing 5.1.2.7 - Maintenance 50 mm PU foam... -
Page 22: Electrical Wiring Diagram
6.3 - Electrical wiring diagram AIR SOURCE HEAT PUMP WATER HEATER 200L INSTALLER INSTRUCTIONS... - Page 23 - High pressure switch - Compressor start-up capacitor - 2µF fan capacitor - 4µF fan capacitor - Fan 4WV - 4-way valve - 1500W electrical resistance - Temperature-limiting safety thermostat for electrical back-up - Electrical back-up limiting aquastat AIR SOURCE HEAT PUMP WATER HEATER 200L INSTALLER INSTRUCTIONS...
- Page 24 ...
