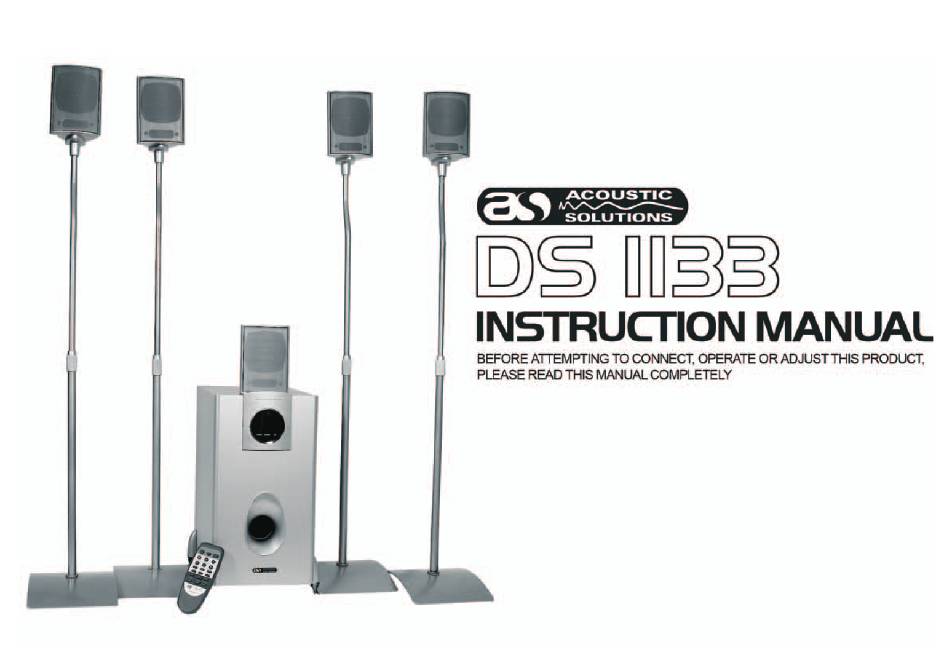

  • Page 1 REV NO: 04001-7001-10...
  • Page 2 Contact Details FEATURES May we take this opportunity to thank you for purchasing this DS 1133 Home Theatre System. Please note the listed precautions and take time to study • Built-in 5.1 Dolby Digital AC-3 and DTS decoder for direct connection with...

  • Page 3: Safety Instructions

    For your safety please observe the following information. The DS 1133 is designed to operate on AC mains supply 230 volts, 50 Hz. WARNING To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

  • Page 4: Main Features

    MAIN FEATURES ACTIVE 5.1 HOME THEATRE SYSTEM 1. Stereo indicator 2. Bass port tube AUX L 3. Standby Indicator AUX R STEREO STANDBY 4. LFE (Low Frequency Effect) indicator ANALOG AUDIO 5. AC input COAXIAL 6. Power switch 7. Speaker input panel 8.

  • Page 5: Remote Control Features

    When changing the remote control batteries please observe the correct (+) and (-) polarities. NOTE: If the remote control unit only works when operated near to the DS 1133, replace the battery. Use a 2 x AAA 1.5V batteries only. 1. Auxiliary input selector 2. Optical input selector 3.

  • Page 6: System Connection

    SYSTEM CONNECTION It is recommended that the mains power is OFF until all connections have NOTE: When listening to a digital source, you will only hear sound from all been made and checked. speakers if you have inserted a DVD disc which contains a 5.1 Dolby Digital or DTS soundtrack.

  • Page 7: Loudspeaker Connections

    LOUDSPEAKER CONNECTIONS NOTE: Please ensure that the DS 1133 is switched off before connecting The speaker terminals on the rear of the DS 1133 and rear of the speakers any speaker leads have corresponding colour coded markings to ease identification.
  • Page 8 FIXING THE SPEAKER STANDS STEP 1 STEP 2 STEP 1 Fit the lower stand section to base using the fitted hex nut and washer. It is a good idea to feed the speaker cable through the stand from this first stage. STEP 2 Fit the upper stand section to the lower stand section.
  • Page 9 (7, page 4) to toggle between normal stereo, Pro Logic II Music Mode or Pro Logic II Movie Mode. NOTE: If the DS 1133 is not going to be used for a period of time, it is recommended to switch OFF the system using the power switch.

  • Page 10: Troubleshooting

    Pro Logic II mode (see page 8) Remote control • Check the battery, if the remote controller only not operating works when close to the DS 1133, the battery is correctly: getting low - replace with suitable 1.5 V AAA sized battery.

  • Page 11: Contact Details

    Solutions Limited, however please feel free to contact us if you experience any difficulties, or if you would like to express your views regarding our products please phone the Acoustic Solutions Help line on 0871 230 7747. This line is manned from 9:00am to 1:00pm and 2:00pm to 4:30pm, Monday to Friday.
