Power over Ethernet Single-port Midspan User Guide
Introduction
Microchip's family of PD-9601-zzGC Power over Ethernet (PoE) Midspans includes the PD-9601-10GC,
PD-9601‑5GC, and PD-9601-25GC models. Throughout this document, these three models are referred as the
PD-9601-zzGC.

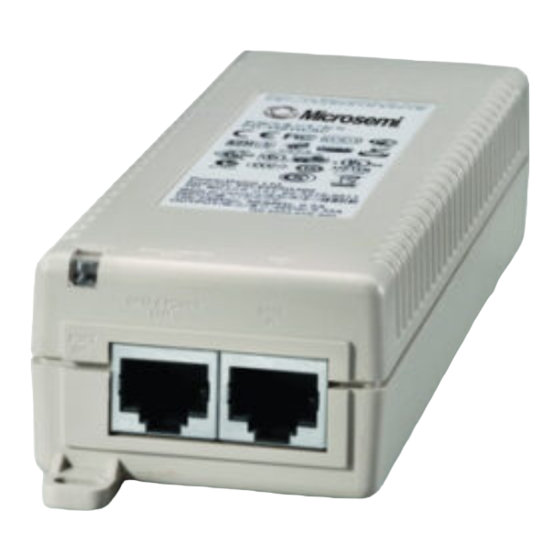

The PD-9601-zzGC is a PoE Single Port Midspan/Injector that offers a compact and cost-effective power solution
for WLAN access points, network cameras, and other IP terminal installations. The PD-9601-zzGC inject power over
data‑carrying Ethernet cabling. The PD-9601-zzGC PoE Midspan/ Injector is IEEE
54 V to 4-pair wires (Alt A: 1, 2 (-) and 3, 6 (+)\Alt B: 4, 5 (+) and 7, 8 (-)) of a standard Ethernet cable in category
DC
5E and above (for 2.5G), and category 6 and above (for 5G and 10G) enables delivery of both data and power to the
IP terminal. The PD-9601-zzGC can be powered through universal AC input and can provide up to 90W.
Features
PD-9601-zzGC PoE Midspan has the following key features:
• Single-Port PoE Output
• Guaranteed Power of 90W
• Compact Product Size
• Universal AC Input: 100 V
• Standard Compliance: IEEE 802.3bt
• 10, 5, and 2.5 Gbps Pass-Through Data Rates
©
2022 Microchip Technology Inc.
and its subsidiaries
to 240 V
AC AC
User Guide
PD-9601-zzGC/AC
®
802.3bt compliant and supplies
DS50003257A-page 1
