- Page 1 Superpoint User Manual Instruction manual Bedienungsanleitung Notice d’utilisation Manuale di Istruzioni Gebruiksaanwijzing Bruksanvisning Instrucciones de uso Instrukcja obsługi Ver 1.1.0 Page 1/12...
-
Page 2: Table Of Contents
Part Locator Keypad Instructions Prepare and Make a Measurement Select crop or function Adjusting the Calibration of the Meter Superpoint Settings and Menu’s MEASURE BATTERY CLEAR AVERAGE CALIBRATION Some more valuable information about the moisture meter How to clear the calculated average values... -
Page 3: User Information
User Information Warning/ Danger symbols used in this User Manual: These notes identify hazards which have a high probability of resulting in death or serious physical injury if not avoided. These notes identify hazards that can result in moderate or mild injuries if not avoided. These notes identify hazards associated with the risk of material damage. -
Page 4: Highlights & Features
● 2 year guarantee Introduction Thank you for choosing Supertech’s Superpoint Grain Moisture Analyser. This moisture meter is a new generation of digital moisture meters that operates using high frequency measurement, compression of the sample and automatic temperature compensation, for more reliable results. It is an accurate instrument that provides consistent repeat readings when several samples are taken. -
Page 5: Package Content

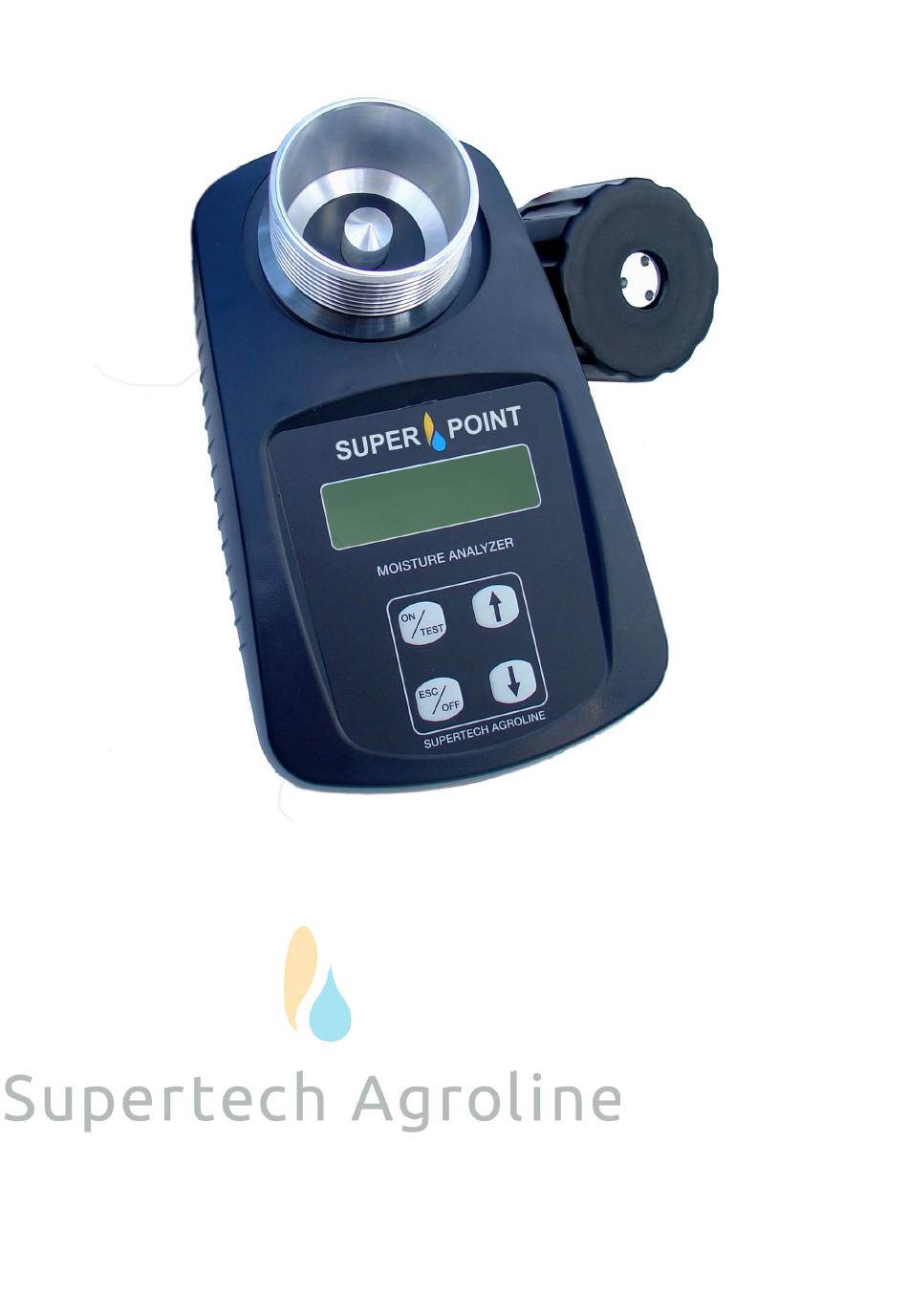

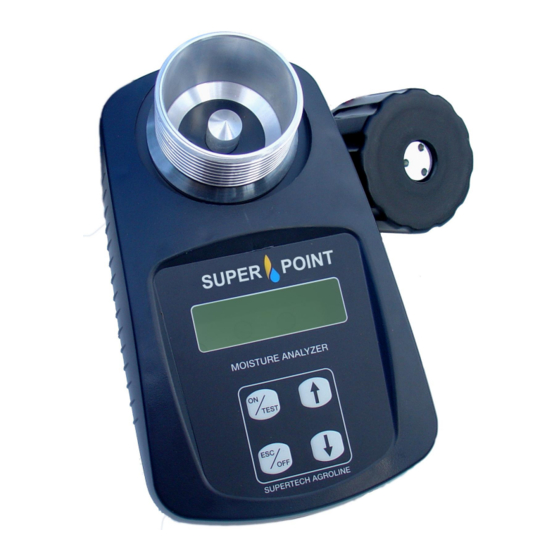

Package Content ● Superpoint moisture analyser ● Operator’s manual ● Compressor lid ● Shockproof carrying case ● 9V Battery Part Locator 1. Compression lid 2. Compression housing/lower compression cell 3. Display 4. Superpoint grip 5. Keypad Keypad Ver 1.1.0 Page 5/12... -
Page 6: Instructions
Instructions This section explains how to use the Superpoint Prepare and Make a Measurement Inspect the two parts of the compression cell to make sure it is clean and empty. If the temperature of the grain sample differs a great deal from that of the meter, e.g. when taking measurements directly from the dryer, it is recommended to preheat the meter as follows: a. - Page 7 Important: Do not re-test the sample without emptying and refilling. Some grains, such as grass seeds are too small to push up the pressure indicator screw to become flush with the top of the lid. In this case, screw the lid down all the way and take a reading.
-
Page 8: Select Crop Or Function
Select crop or function When pressing the ON/TEST the unit will show software version and country code, followed by the level of the battery and lastly the menu «MEASURE» ( choice of crop ) appears. If you wish to accept this choice of menu press the ON/TEST button and the desired crop can be selected by using the arrow keys ⇑... -
Page 9: Superpoint Settings And Menu's
The Superpoint is calibrated ( factory adjusted ) in every incorporated scale. The scales are all developed on the basis of official methods of measuring the moisture content determination in crops compiled by ISTA ( International Seed Testing Association ). The scales are compiled on the basis of samples which represent the common grown crops in normal conditions. -
Page 10: How To Turn Off The Device
2. By using the arrow keys or the menu «CLEAR AVERAGE» is selected. 3. Accept this choice by pressing the ON/TEST button. An “OK” will appear in the display followed by automatic return to the menu «MEASURE». How to turn off the device Press the ESC/OFF button and hold it down until the unit is turned off. -
Page 11: Quick Guide To Display Messages
Quick Guide to Display Messages Symbol: Definition: Calibration has been adjusted from factory setting for the grain being displayed Temperature ++ Temperature above limit Temperature -- Temperature below limit Moisture content above upper limit Moisture content below lower limit Change battery Battery needs replacing Technical Specifications ●... -
Page 12: Eu Weee Statement
Supertech Agroline Aps. Maltgørervej 7 5471 Søndersø, Denmark declares Superpoint to be in conformity with the requirements of the, Electromagnetic Compatibility (EMC Directive - 2014/30/EU and RoHS Directive - 2011/65/EU A signed Declaration Of Conformity document is available online at supertechagroline.com...
