Telstar TPI001210M Instruction Manual

Induction cooker
Hide thumbs

Advertisement

Quick Links

Download this manual
PLANTILLA DE
INDUCCIÓN
TPI001210MD
MANUAL DE INSTRUCCIONES

Advertisement

loading
Need help?

Need help?

Do you have a question about the TPI001210M and is the answer not in the manual?

Questions and answers

Related Manuals for Telstar TPI001210M

Summary of Contents for Telstar TPI001210M

  • Page 1 PLANTILLA DE INDUCCIÓN TPI001210MD MANUAL DE INSTRUCCIONES...
  • Page 2 INDUCTION COOKER TPI001210MD IMPORTANT SAFEWARDS Never heat food in sealed containers such as compressed products like cans or coffee pots, to avoid explosion caused by heat expansion. Never let the appliance run unattended. Do not use empty vessels to avoid affecting product performance and to prevent injury.
  • Page 3 INDUCTION COOKER TPI001210MD To avoid danger, do not insert any foreign objects, such as iron wire, nor block the air ventilation opening or entry port. Do not place paper, aluminum foil, cloth or other unsuitable articles onto the induction cooker heating plate. Do not put it on any metal platforms (such as iron, stainless steel, aluminum), or place a non-metal pad less than 10 cm thick on the heating plate while the cooker is in use.
  • Page 4 INDUCTION COOKER TPI001210MD When using the induction cooker, place it horizontally and allow at least 10 cm of free space between the sides and back of the induction cooker and the wall. Do not use the induction cooker in narrow spaces. Please keep the ventilation opening free, for release of heat.
  • Page 5 INDUCTION COOKER TPI001210MD When using the induction cooker or after use, please keep it clean. Protect the induction cooker from bugs, dust and humidity. Avoid letting cockroaches etc fall into the internal parts of the induction cooker and causing a short circuit of the electrical board.

  • Page 6: Product Introduction

    INDUCTION COOKER TPI001210MD Always make sure the plug is inserted firmly into the socket. We suggest that you should periodically check that there are no objects (glass, paper, etc.) that could obstruct the inlet under your induction hot plate. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.Children should be supervised to ensure that they do not play with the appliance.

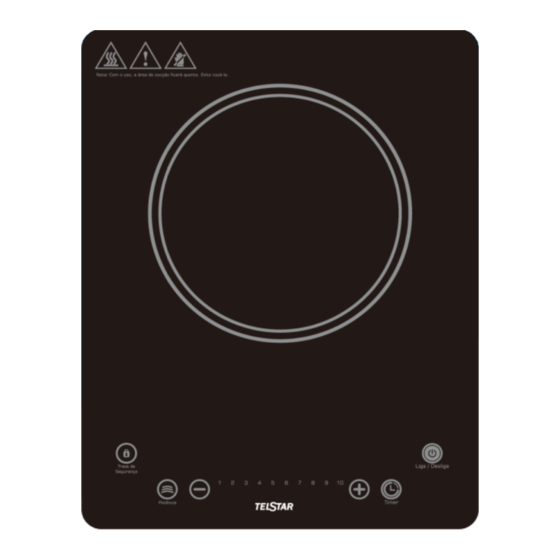

  • Page 7 INDUCTION COOKER TPI001210MD Product Sketch Map Air vent Ceramic plate Cooking zone Power cord NSMC-W1501 110V~ 60Hz 1500W Control panel Air entry Control Panel On/Standby Power regulating controls Timer Heating Child lock Before using New Induction cooker Read this guide,taking special note of the “Safety Warnings” section. Remove any protective film that may still be on your ceramic plate.
  • Page 8 INDUCTION COOKER TPI001210MD Using the Touch Controls The controls respond to touch, so you don’t need to apply any pressure. Use the ball of your finger, not its tip. You will hear a beep each time a touch is registered. Make sure the controls are always clean, dry, and that there is no object (e.g.
  • Page 9 INDUCTION COOKER TPI001210MD Function After switching on the appliance, press the “Heating” to enter the desired cooker mode. After selecting Heating mode, you can press “+” or “-” to adjust the power. Heating Press the “Heating”mode, the buzzer sounds, the “On/Standby”and the “power” indicator lamp lights up.The default power level shall be level 9, you can make a regulation by pressing the “+”...

  • Page 10: Compatible Cookware

    INDUCTION COOKER TPI001210MD IV. COMPATIBLE COOKWARE Iron oil frying Stainless steel pot Iron pan Iron kettle Enamel stainless Enamel cooking Iron plate steel kettle utensil Requirement for por materials: containing magnetic inducting materials. Shape requirement: plat bottom, with the diameter more than 14.5 cm and less than 20 cm. Please pour some vinegar into the pot, heat it at about 60-80 then wipe the spots away with brush.

  • Page 11: Troubleshooting

    INDUCTION COOKER TPI001210MD V. CLEANING AND MAINTENANCE For oil spots on the cooker plate, wipe the cooker plate by using a soft moist cloth with a little tooth paste or mild detergent. And then use a soft moist cloth to wipe it until no stain remains. When not using it for a long time, please disconnect the power plug from the power outlet and protect the induction cooker from any dust or bugs.
  • Page 12 PLANTILLA DE INDUCCIÓN TPI001210MD...
