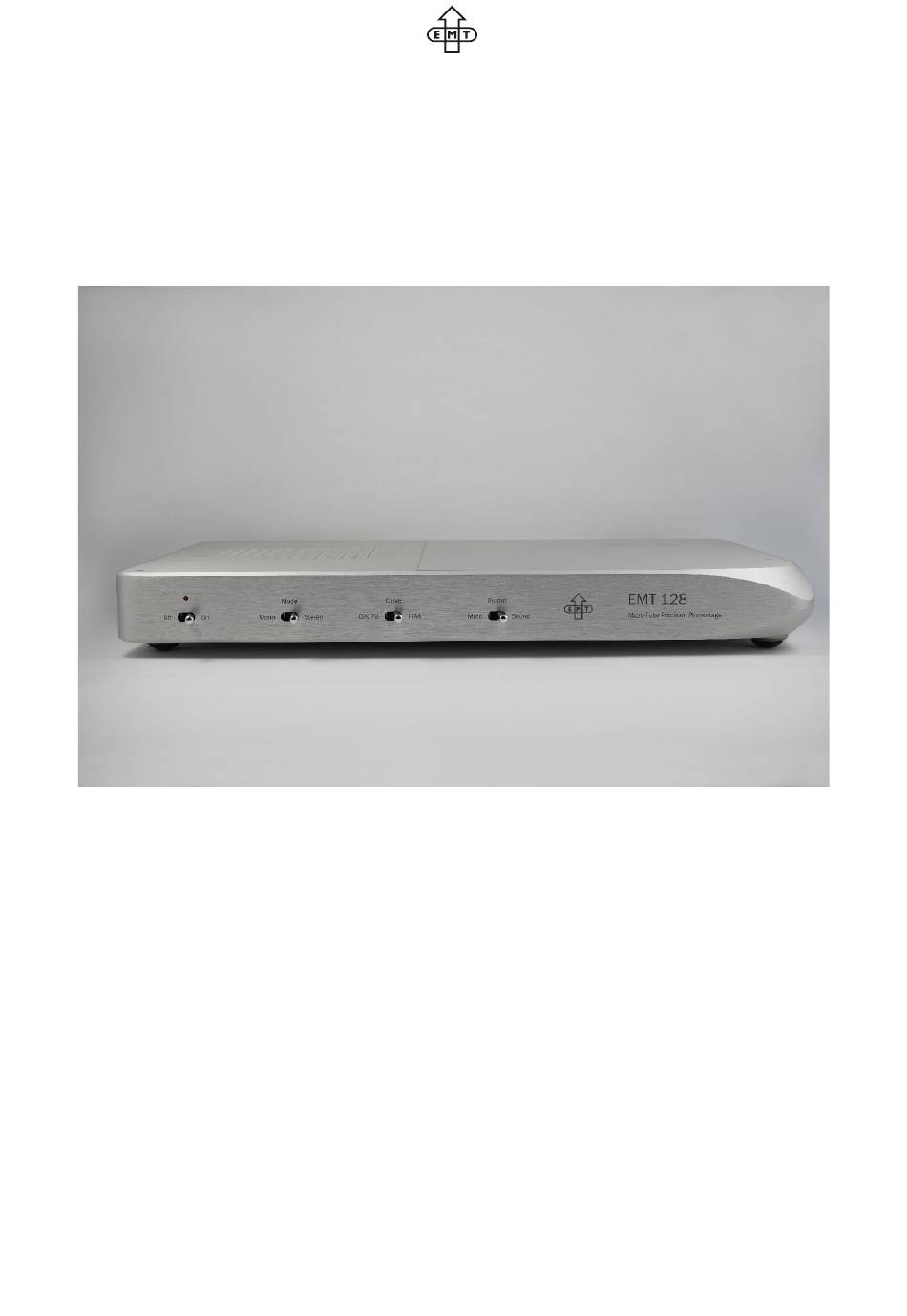

EMT 128 User Manual
Thank you for choosing the EMT 128.
Take your time to install and adjust your product properly. Please remember to work carefully and
to follow the instruction manual step by step.
You will find actual information about our products on www.emt-tontechnik.ch.
EMT 128 Manual V1.3
1/9
Advertisement
Summary of Contents for EMT 128
- Page 1 Thank you for choosing the EMT 128. Take your time to install and adjust your product properly. Please remember to work carefully and to follow the instruction manual step by step. You will find actual information about our products on www.emt-tontechnik.ch. EMT 128 Manual V1.3...
- Page 2 Safety warning Read this manual carefully before putting the EMT 128 into operation. The EMT 128 is a Class I product. It is essential that it is connected to a mains socket outlet with a protective earthing connection. Never try to open your EMT 128 when it is powered to prevent the risk of electric shock and burns.
- Page 3 Positioning The EMT 128 must not be exposed to water or liquids. Use indoors only. There must be enough space all around the chassis for adequate ventilation. Ventilation should not be impeded by covering the ventilation openings with any item.
- Page 4 Power Switch (3) Function: Switch to “1” before setting the device into operation. If your EMT 128 is not in use, always switch to “0”. Type Plate (4) Please refer to separate declaration of conformity, included in this manual.
- Page 5 - step-up-transformer - line-level device MC-Cartridge: The EMT 128 is specifically designed for EMT MC cartridges. If you decide to use other MC cartridges, the following cartridge specs are recommended: Cart Impedance: 12…30 Ohms Cart Output Voltage: 0,6…1mV @ 5cm/s (Gain Setting = -6dB) Cart Output Voltage: 0,3…0,6V @ 5cm/s (Gain Setting = 0dB)
- Page 6 Do not remove the right part of the top cover. No user-serviceable parts in- side. Refer servicing to qualified service personal. Case cleaning Clean the EMT 128 case using a soft, non-fluffy, slightly damp cloth. Do not use any cleaning products or liquids. EMT 128 Manual V1.3...
- Page 7 Gain Setting The EMT 128 offers two settings for the gain: Setting Overall gain MC-Cartridge -6dB (nominal gain) 64dB Output voltage: 0,6…1mV 0dB (maximum gain) 70dB Output voltage: 0,3…0,5mV Nominal Gain Setting Maximum Gain Setting Gain -6dB (nominal) Warning: Disconnect the mains supply before removing the cover.
- Page 8 The sound gets noisy, f. e. with different kind of background noise. The distortion gently increases to an audible level. As soon as one of these signs appears, please contact your EMT dealer and order an EMT 128 tube replacement kit. Follow the instructions delivered with the tube replacement kit.
- Page 9 480x315x60 mm / 19x12.5x2.3 inches Weight: 12kg / 26.5 lbs EMT MC cartridge 1 KHz level @ 30 µm/5.65 cm/sec Load =/> 10 KOhm, fully symmetrical and floating 1mV input @ 1 KHz gives 1.55V output According to ITU-R 468 standard Features and specifications subject to change without notice.
