Cal Spas Cal Salt Spa Sanitation System Operation Manual

Hide thumbs

Advertisement

Quick Links

™
By Cal Spas
OWNER'S MANUAL
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cal Salt Spa Sanitation System and is the answer not in the manual?

Questions and answers

Roy E Mefford
May 9, 2025

I have no display no lights on the Salt Generator Control Panel, Is there a fuse going to the Salt Generator Power Supply?

0

Summary of Contents for Cal Spas Cal Salt Spa Sanitation System

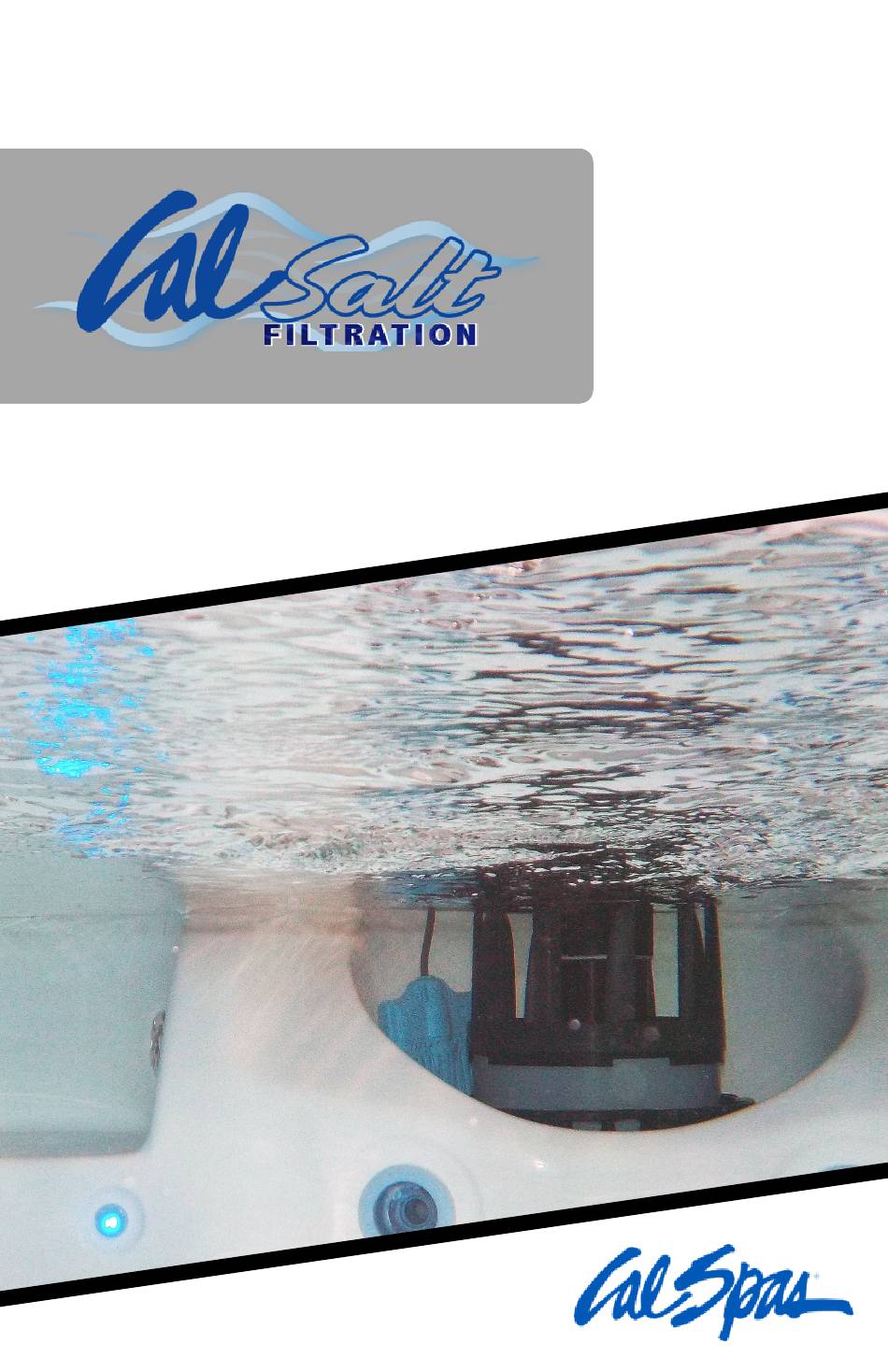

  • Page 1 ™ By Cal Spas OWNER’S MANUAL OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ............3 2.

  • Page 3: Introduction

    1. Introduction 1. Introduction INTRODUCTION Your new Spa Sanitation System produces a pure form of chlorine by electrolysis of salt (NaCl) in order to sanitize your spa water. After the salt is converted to chlorine and the bacteria are killed, the chlorine converts back to salt in a continuous process. The salt concentration used is very low (less than that in a human tear).
  • Page 4 WARNING: To reduce risk of injury, do not permit children to operate the device. WARNING: Heavy spa usage and higher temperatures may require higher chlorine output to maintain proper free chlorine residuals. If additional chlorine is required due to heavy bather loads, use granulated chlorine to maintain an appropriate chlorine residual amount in the water.

  • Page 5: Installation And Operation

    2. Installation and Operation 2. Installation and Operation I. T I. T Operation of the Unit I. T III. Turn on the power to the spa equipment III. Turn on main spa pump III. III. Add required type and amount of salt to spa. Spread over the surface and allow salt to dissolve for at least 1 hour NOTE (Add the required free chlorine residual before startup to have...
  • Page 6 Control Panel Function EL FUNCTION: ower is turned on: hts and the display will be ON for approximately 3 seconds while the When the spa power is turned on: EL FUNCTION: All three LED lights and the display will be ON for ower is turned on: ator unit is operating properly, the Green LED light will display solid GREEN approximately 3 seconds while the unit self-tests.

  • Page 7: Salt Requirement

    3. Salt Requirement The best salt is food-quality granulated salt, 99.9% pure salt or solar salt. These types of salt should be purchased from Cal Spas and are designed for use with chlorine generators. Do not use rock salt, iodized salt or salt with anti-caking additives. Do not use salt with more than 1% yellow prussiate of soda.

  • Page 8: Spa Size Calculation

    4. Spa Size Calculation 4. Spa Size Calculation Use these three formulas to calculate the volume of water in the spa : Rectangular: Length(M) x Width (M) x Average Depth(M) x 1000 = Total Liters Length(Ft) x Width(Ft) x 7.5 = Total U.S. Gallons Round: 3.14 x Radius(M) x Average Depth(M) x 1000 = Total Liters 3.14 x Radius(Ft) x Radius(Ft) x Average Depth (Ft) x 7.5 = Total U.S.

  • Page 9: Unit Maintenance

    5. Unit Maintenance 5. Unit Maintenance Removing and inspecting the cell: Note: The cell should be inspected every 3 months. Step 1. Adjust the chlorine Step 2. Inspect the cell for Step 3. If scaling exists, level to zero when scaling (white) deposits.
  • Page 10 Cleaning the cell: Once the setting on the control panel is set to zero, the cell can be cleaned. Scale build up will look similar to the image on the left. You will need a cup large enough to submerge the entire cell, white vinegar (such as the one shown on the right image) to submerge the cell, and an area where fresh water is available to rinse the cell.
  • Page 11 Step 5. Step 5. Rinse the cell with fresh water until unit appears clean. Step 6. Step 6. Reattach the power connector cord to the cell, and slip cord back inside spa. Step 7. Step 7. Reattach grommet and firmly place inside the hole Step 8.

  • Page 12: Spa Chemistry Chart

    6. Spa Chemistry Chart 6. Spa Chemistry Chart This system is designed to automatically generate the chlorine for your spa. It is important to note that chlorine is just one component of your spa chemistry. Please make sure your spa meets the optimum chemistry levels in the following spa Chemistry Chart.

  • Page 13: Operation Mode And Trouble Shooting

    7. Operation Mode and Trouble Shooting 7. Operation Mode and Troubleshooting 7. Operation Mode and Troubleshooting Operation Mode and Trouble Shooting Symptom on Possible Causes Solution Power Supply Display no display 1 - power outage Make sure there is power to the unit. lights 2 - power supply failure Need to replace the power supply.
  • Page 14 Appendix Appendix Replacement Parts Replacement Parts Control Panel Base Holder Cal Salt Generator Control Panel Cal Salt Generator Base Holder ELE09021183 ELE09021180 Cell Grommet Cal Salt Generator Cell Cal Salt Generator Grommet ELE09021181 ELE09021184 Power Supply Cal Salt Generator Power Supply ELE09021182...
  • Page 15 System when installed within the country of purchase. Warranty Performance Cal Spas Dealers or its Authorized Service Agent will repair or replace, free of charge, during the warranty period (as described above), any part of the Cal Salt Filtration System that proves defective in material and/or workmanship under normal installation, use and service.
  • Page 16 CONTACT INFORMATION For customer service, please contact your authorized dealer immediately. If you need additional information and/or assistance, contact: LMS Customer Service Department 1462 East Ninth Street Pomona, CA 91766. Toll Free: 1-800-225-7727 LTR50002021, Rev. B Fax: 1-909-629-3890 12/22/21...
