MReX Programming Board 1.0
MReX
Programming
Board
User Guide
Page 1 of 11
© WTE Limited, 2022 – Christchurch New Zealand

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MReX and is the answer not in the manual?

Questions and answers

Summary of Contents for WTE MReX

  • Page 1 MReX Programming Board 1.0 MReX Programming Board User Guide Page 1 of 11 © WTE Limited, 2022 – Christchurch New Zealand...

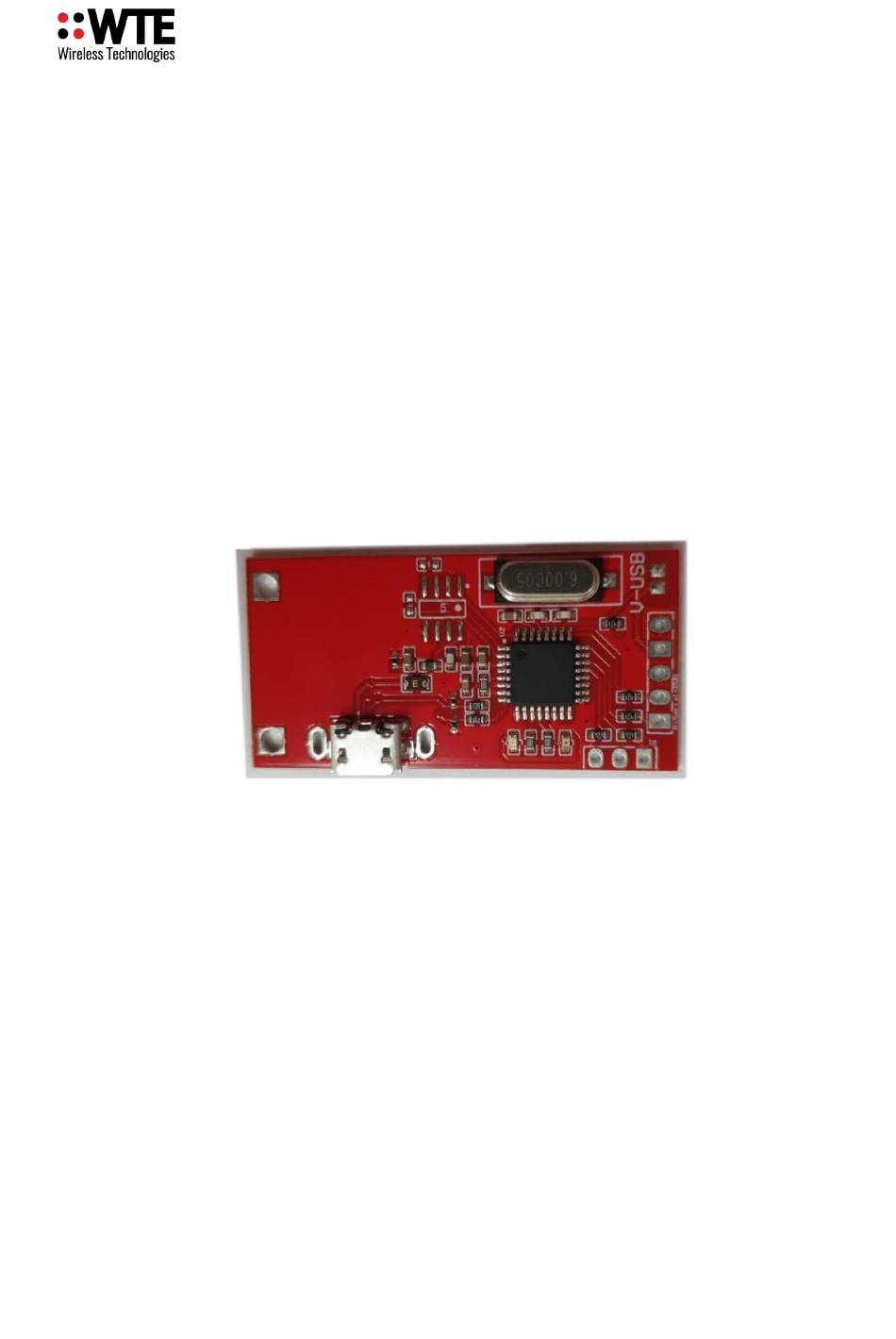

  • Page 2 MReX Programming Board 1.0 Introduction The MReX Programming Board is a USB to 3.3V TTL serial board, designed to interface the MReX Module or the MReX PCB to a computer or USB host terminal. The board physical dimensions are 48mm X 24mm X 5mm (L x W x H).
  • Page 3: Board Details

    • Through hole pin header connections V-USB The board is capable of providing 5V to the MReX module (VCC). This can be achieved by making a solder blob on the V-USB pads. Page 3 of 11 © WTE Limited, 2022 – Christchurch New Zealand...
  • Page 4: Bottom Side

    MReX Programming Board 1.0 Bottom Side The bottom side of the MReX Programming Board has the connection labels. Page 4 of 11 © WTE Limited, 2022 – Christchurch New Zealand...
  • Page 5: Programming Requirements

    A serial terminal application/software. We recommend the use of the WTE serial terminal application, which can be downloaded at no cost from our WTE website. (https://www.wte.co.nz/tools.html) • An MReX 460 module or MReX PCB board that is to be configured. Page 5 of 11 © WTE Limited, 2022 – Christchurch New Zealand...
  • Page 6: Usage Example

    The following example shows the MReX PCB, being connected and powered by the MReX Programming Board. Note: If the MReX PCB board is NOT being powered via the USB, please ignore Step 1. Step 1 Remove batteries / power from the MReX 460 since the MReX is powered from the USB connec-...
  • Page 7 Plug the programmer board into the header as shown in the photos. It's easy to get it the wrong way around so replicate the photo Note: At this moment the MReX Module will the powered and depending on the MReX configuration it should flash its green status led.
  • Page 8 MReX Programming Board 1.0 Step 5 If the MReX is asleep (for ultra low power consumption) it needs to be woken up before using the WTE Serial Terminal. To wake the MReX an input must be triggered. The MReX flashes the green led once a second...
  • Page 9 This document has been prepared in good faith and produced to assist in the use of this product, however WTE Limited reserves the right to modify, add or remove features without notice. When product is supplied, it is the user who is responsible for payment of any customs fees/taxes that are imposed on importation.
  • Page 10: Product End Of Life

    For more information about where you can drop off your waste equipment for recycling contact your local dealer or city council Please recycle this device responsibly. Page 10 of 11 © WTE Limited, 2022 – Christchurch New Zealand...
  • Page 11: Product Warranty

    MReX Programming Board 1.0 Product Warranty WTE Limited products are warranted for a period of 12 months after purchase date against faulty workmanship or materials. Return the product, all freight paid by the customer and the product will be repaired or replaced.
