Summary of Contents for Star Cooperation FlexMedia 1000BASE-T1

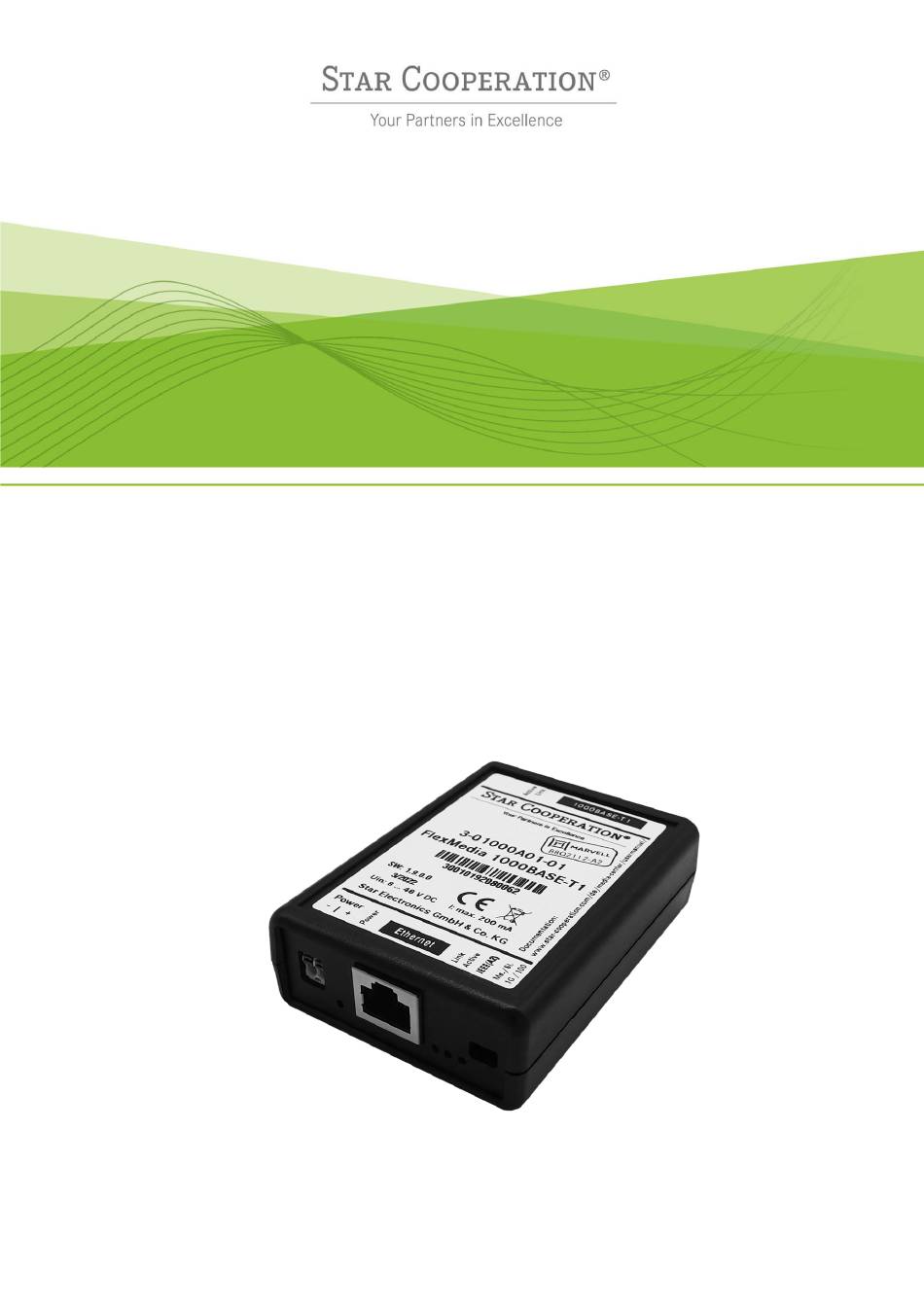

- Page 1 FlexMedia 1000BASE-T1 Instructions for Use...
- Page 2 Contact Information STAR ELECTRONICS GmbH & Co. KG A company of the STAR COOPERATION Group Jahnstraße 86 73037 Göppingen Phone: +49 (0)7031 6288-5656 Phone: +49 (0)7031 6288-5330 (Support) Sales: sales-ee@star-cooperation.com Support: support-ee@star-cooperation.com www.star-cooperation.com/ee-solutions Company Data STAR ELECTRONICS GmbH & Co. KG, registered office: Göppingen, register court Ulm, HRA 721096 Partner liable to unlimited extent: STAR ELECTRONICS Verwaltungs-GmbH, registered office: Göppingen, register...
- Page 3 The safety and handling instructions in this document must be followed strictly. EC Conformity The FlexMedia 1000BASE-T1 complies with the essential requirements of the following applicable European Community Directive(s) including current amendments, and carries the CE marking accordingly: ...
- Page 4 UK Conformity The FlexMedia 1000BASE-T1 complies with the essential requirements of the following applicable UK Regulations including current amendments, and carries the UK marking accordingly: 2016 Electromagnetic Compatibility Regulations The following standard(s) have been used to assess the product: ...
-
Page 5: Table Of Contents
Meaning of Text Styles ......................... 7 Used Pictographs ..........................7 Safety and Handling Instructions ......................7 Product Description ..........................9 FlexMedia 1000BASE-T1 at a glance ....................9 Accessory Parts ........................... 9 Technical Data ............................ 10 Electrical Characteristics ........................10 Physical Characteristics ........................10 Environmental Conditions ........................ -
Page 6: General
WARNING The FlexMedia 1000BASE-T1 may be used to communicate with networked electronic systems. E.g. Ethernet. Any use of the product outside a fully controlled testing and/or laboratory environment... -
Page 7: Meaning Of Text Styles
WARNING The FlexMedia 1000BASE-T1 is NOT designed, intended, or authorized and may NOT be used for or in connection with the following purposes and/or devices: - use as part of medical systems... - Page 8 WARNING FlexMedia 1000BASE-T1 can be used to interfere with networked electronic systems. By connected measurement hardware like the FlexDevice-L, FlexConfig RBS can be used to transmit messages via FlexRay, CAN, LIN or Ethernet busses.
-
Page 9: Product Description
The FlexMedia 1000BASE-T1 is a converter for “100BASE-T1 to 100BASE-TX” or “1000BASE-T1 to 1000BASE-T” and vice versa. With the FlexMedia 1000BASE-T1, it is possible to connect an automotive Ethernet network to a standard PC for testing or diagnostic purposes. It supports up to 1000 MBit/s in full duplex mode on both sides. -
Page 10: Technical Data
Table 3: Environmental conditions Interfaces The FlexMedia 1000BASE-T1 has a power connector with clamp contacts, an RJ45 connector for the 100BASE-TX/1000BASE-T (Ethernet), an D-Sub 9 pol connector for 100/1000BASE-T1, a 2 pin DIP-switch and some LED’s. The following figures show the position of each interface. -
Page 11: Power
Figure 2: Side with 100/1000BASE-T1 3.4.1 Power The valid range of the power supply for the FlexMedia 1000BASE-T1 is within 8 - 48 V DC. The power supply input of the FlexMedia 1000BASE-T1 is reverse protected. The green LED near the power cable shows the power supply status, if the LED is on, the power is OK. -
Page 12: Leds And Dip-Switches
Figure 3: Ethernet connector with yellow and green LED 3.4.3 LEDs and DIP-switches The FlexMedia 1000BASE-T1 has two additional LEDs at the power connector side: a LED for IEEE(A2) (yellow) near the DIP switch and a LED for Power status (green) near the Power connector. -
Page 13: 1000Base-T1 (D-Sub)
It is not possible to convert between 100MBit/s and 1000MBit/s. Figure 4: LED for IEEE(A2) (yellow) and the DIP-switches 3.4.4 1000BASE-T1 (D-Sub) The FlexMedia 1000BASE-T1 support a 100/1000BASE-T1 interface. Figure 5: 1000BASE-T1 D-Sub connector with yellow and green LED Connector DSub (1000BASE-T1 2-wire ethernet) - Page 14 NOTICE The maximum allowed length of the 1000BASE-T1 cable is 30m. Created by STAR ELECTRONICS GmbH & Co. KG Date created 2022-02-16 Date modified 2022-02-16 Page 14 of 21...
-
Page 15: Getting Started
Ensure to grasp the plug and not the cable when disconnecting the FlexMedia 1000BASE-T1. Configuration and Operation Use the power connector of the FlexMedia 1000BASE-T1 to connect with a power-supply within the correct voltage range. Connect the 100/1000BASE-T1 and Ethernet (100BASE-TX or 1000BASE-T) with their networks. Check the pinouts. -
Page 16: Shipping, Maintenance And Disposal
Shipping, Maintenance and Disposal Dispose off properly per regulations of the country where end-of-life occurs. Created by STAR ELECTRONICS GmbH & Co. KG Date created 2022-02-16 Date modified 2022-02-16 Page 16 of 21... -
Page 17: Troubleshooting
Troubleshooting This chapter contains some frequently asked questions about the FlexMedia 1000BASE-T1. Effect No LINK at the 1000BASE-T1 connector. Check the DIP-switch for correct Master/Slave configuration and the DIP-switch for Bitrate. Solution A 100/1000BASE-T1 communication is a Point-to-Point- Connection where on communication partner acts as ‘Master’... -
Page 18: Ordering Information
Ordering Information FlexMedia 1000BASE-T1 Product Description Ordering number Media converter between 100/1000BASE- FlexMedia 1000BASE-T1 3-V1000A01 T1 and 100BASE-TX/1000BASE-T Accessory Parts Product Description Ordering number Please contact Customer specific parts STAR ELECTRONICS GmbH & Co. KG Related Documents Document Description Ordering number Created by STAR ELECTRONICS GmbH &... -
Page 19: Appendix
Appendix Appendix A: Guideline for handling ESD sensitive Products Any tester, equipment, or tool used at any production step or for any manipulation of semi- conductor devices must have its shield connected to ground. The product itself and the carrier system of the product respectively must be placed on a conductive table top or covered by an antistatic surface (superficial resistivity equal to or higher than 0.5MΩ/cm ), grounded through a ground cable (conductive cable from protected equipment to... - Page 20 Figure 5: 1000BASE-T1 D-Sub connector with yellow and green LED ..............13 Created by STAR ELECTRONICS GmbH & Co. KG Date created 2022-02-16 Date modified 2022-02-16 Page 20 of 21...
- Page 21 Corrected 100BASE-TX and 1000BASE-T in the hole document I Supply Max.: inserted Updated chapter EC Conformity Added chapter UK Conformity STAR ELECTRONICS GmbH & Co. KG A Company of the STAR COOPERATION Group Jahnstraße 86 73037 Göppingen Germany Phone: +49 (0) 7031 6288-5656 Info@star-cooperation.com...
