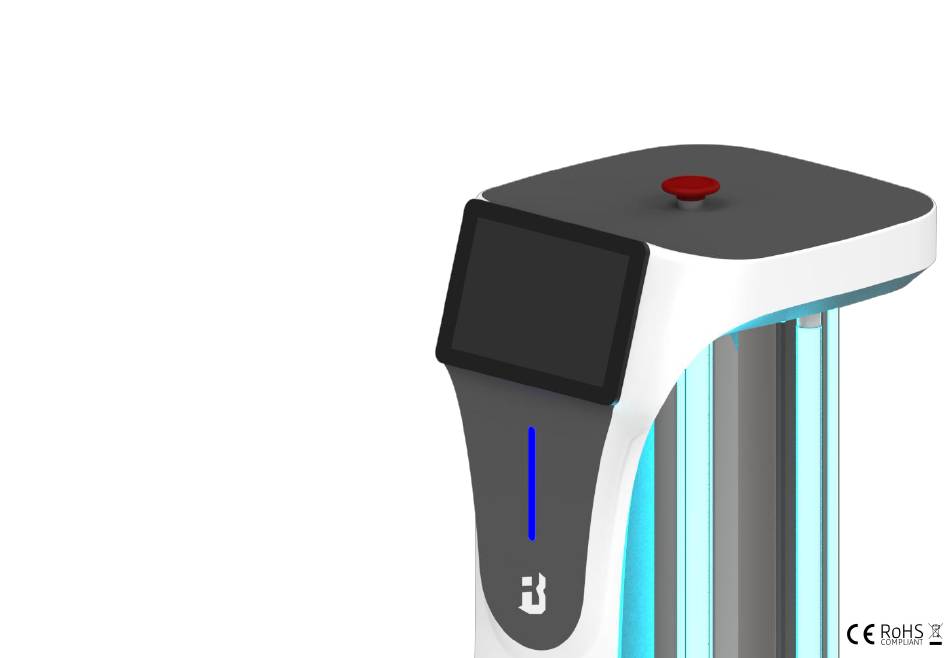

Page 1 Bondi UV Disinfection Robot User’s Manual BP-MS1...
Page 2 Point Robotics will not be responsible for any losses caused by above reasons, except for losses caused by improper installation or operation by Blue Point professionals. Blue Point Robotics has strictly and carefully collated the contents of this manual, but we cannot guarantee that this manual is completely free of errors or omissions Blue Point Robotics is committed to keeping improving product functions and service quality.
Page 3 E-mail for technical supports: service@bluepointrobotics.com Scan the QR code for more information: WeChat Official Account Note: The above information may be subject to changes due to objective factors, please refer to the latest information published by Blue Point.
Page 4: Table Of Contents
Safety First More operations Suspend and terminate tasks Material List Switch maps Acquaint with Bondi Calibrate the location of Bondi More functions Quick Operation Guide Set up an appointment Assemble the ultraviolet lamp tube Track disinfection Start and place Bondi...
Page 5: Safety First
Bondi has been properly assembled and is working properly. 1. Common Warning • Be sure to check Bondi for damage before each use. Do not operate damaged or defective machines in any way. • Please follow the instructions of this manual to complete the assembly of Bondi, do not disassemble or change the structure of Bondi in any other way.
Page 6 • Please keep a certain distance from Bondi as it moves. • Never put your feet near Bondi to prevent it from crushing your feet when it moves. 3.UV Warning • Avoid direct exposure of your body to the ultraviolet light.
Page 7 • Do not put Bondi in a place where it obstructs pedestrians. • Do not occupy the charging spot of Bondi. • If you need to move Bondi manually, please press the stop button for emergency first. 5. Mechanical Warning •...
Page 8 • Make sure that you use the charging pile and power cord provided by Blue Point • When Bondi is connected to the power supply, do not open any access panel of the machine to avoid unnecessary danger caused by touching the power supply by mistake.
Page 9 • Bondi comes with a sound and light alarm during the disinfection process to remind nearby people to stay away from it. • There is a red stop button for emergency on the top of Bondi. The robot will stop all the activities once the button is pressed in any case.
Page 10: Material List
Inner hexagonal wrench ×2 Protective clothing ×1 Goggles ×1 Remote control switch ×1 Warning board ×1 Chunk ×1 Ultraviolet lamp tube ×8 （ Two of them are spare parts ） Lithium battery ×1 Power cord ×1 Charging pile ×1 Bondi×1...
Page 11: Acquaint With Bondi
Acquaint with Bondi Emergency Stop Button USB Interface Touching Screen Indicator Light Handle Ultraviolet Lamps Philips TUV T8 55W Speaker Chassis Indicator Light Power Button Lidar Depth Camera Ultrasonic Radar Infrared Sensor Rechargeable electrode piece Universal Hub Motor wheel Main Switch...
Page 12: Quick Operation Guide
Quick Operation Guide Assemble ultraviolet lamps 1. Insert the upper and lower ends of the lamp into the lamp holder. 2. Rotate (clockwise or anticlockwise) the lamp for 90°. Make sure the indentation mark is aimed at the lamp holder groove. 3.
Page 13 Start Bondi 1. Turn on the Main Switch. 2. Press the switch button for a long time, and let it go after the beep changes from short to long.
Page 14 3. After the guiding page is displayed on the touching screen, complete the initial settings (language setting- wireless LAN configuration-email binding-PIN code setting) and enter the main interface.
Page 15 Place Bondi 1. The back of the charging pile need to be placed against the wall to ensure that there is the distance of more than 50 centimeters for each side. 2. Plug in the power cord. ≥50CM...
Page 16 3. Press the emergency stop button on Bondi 4. Push the Bondi to the charging pile. Make sure that the electrode piece of Bondi is in connection with the charging head of the charging pile, and then start charging. 5. Rotate and pull up the emergency...
Page 17 “BPconnection” on Tencent Myapp, download and install the app. There are two ways to connect Bondi and your mobile phone. If the coverage of WLAN is limited, it is recommended to use Bondi wireless hotspot to ensure stability in the process of mapping.
Page 18 3. Open the app, and click the button of “Add Robots". 4. Click the “Add" button on the Bondi robot that has been searched out. 5. You can bind the robot successfully by confirming the binding on the...
Page 19 LAN. 2. Open the app, and click the button of “Add Robots" . 3. Click the “Add” button on the Bondi robot that has been searched out. 4. You can bind the robot successfully by confirming the binding on the...
Page 20: Create A Map
Create a Map 1. C l i c k t h e b u t t o n o f “ M a p Management” on the navigation page to enter the map list page. 2. Click the button of “Create a Map”. 3.
Page 21 4. Control the robot to move and scan pictures manually. 5. Save the map after scanning.
Page 22: Add Spots
Add Spots 1. Click the button of “Edit Marks” on the navigation page to enter into editing the position. 2. Click the button of “Add a Spot” . 3. Zoom in on the map with two fingers and move the cursor in the center of the map to an appropriate position.
Page 23: Add Area
Add Area 1. Click the button of “Edit Marks” on the navigation page to enter into editing the position. 2. Click the button of "Add an Area" . 3. Zoom in on the map with two fingers, and drag the four corner dots of the rectangular area to the appropriate positions.
Page 24: Start The First Disinfection Task
Start the First Disinfection Task 1. Enter the task page from the Bondi main interface to create a new task.
Page 25 “spot disinfection", and select the time you want it to disinfect. 4. Click YES to add the task and click YES again. 5. Confirm and check the security item. 6. Bondi will automatically go to the marked spot and disinfect it.
Page 26: More Operations
More Operations Suspend and Terminate tasks Tasks that are currently in progress can be suspend and terminated on both Bondi and the app.
Page 27: Switch Maps
Switch Maps You can switch maps on both Bondi and the app. 1. Enter the navigation-navigation settings on Bondi and click on the map name. 2. Select the name of the map and the number of the floor you want to switch to.
Page 28: Calibrate The Location Of Bondi
• the location displayed on the map is inconsistent with the actual position; • the arrival location is inconsistent with the actual marked location. you can control or push the Bondi to the charging pile manually. When you start charging, the Bondi will automatically calibrate the location.
Page 29: More Functions
More Functions Set up an appointment You can choose not to perform the task immediately but to perform later in the future or after the charge is completed. 1. Click Perform Now when you create a new task to change the performing conditions of the task.
Page 30: Track Disinfection
Track Disinfection Apart from spot disinfection, the robot a l s o s u p p o r t t r a c k d i s i n f e c t i o n o f automatically planned routes with no blind spot.
Page 31: Send Task Reports
Send Task Report • Automatic transmission Turn on the "automatically send task reports after disinfection" option, and Bondi will automatically send task reports to bound mailboxes. • Manual transmission After checking the historical tasks, click the "send reports" button to send reports...
Page 32: Save Tasks
Save tasks The newly created task process can be saved on Bondi. Next time, you can directly select and execute the saved task.
Page 33: Automatic Charging
Automatic Charging Turn on the "auto-return charging at low battery " option, and then Bondi will automatically return to the charging pile to charge when the battery is too low.
Page 34: Maintenance
• Do not wash Bondi. • When Bondi is not in use, store it in a dry and cool place indoor place. It is forbidden to place it outdoors.
Page 35 Assemble the Lithium Battery 1. Remove the magnetic strips on both sides. 2. Unscrew the 4 screws on the rear cover. 3. Remove the rear cover.
Page 36 4. Unscrew the 2 screws on the battery compartment cover and remove the metal bezel. 5. Remove the circular power switch.
Page 37 6. Put the battery pack completely into the battery compartment and expose the battery power cord. 7. Cover the pack with black foam.
Page 38 8. Put on the metal cover. 9. Screw on the screws on the both sides of the metal cover. 10. Connect the battery power cord.
Page 39 11. Close up the back cover. 12. Screw on 4 screws of the rear cover. 13. Install magnetic strips on both sides.
Page 40: Warranty Information
(such as cover, components, circuits, etc.) getting fragmentation, corrosion, damage, etc.; • Failure or damage caused by installation, repair, modification, addition or disassembly by agencies or personnel that have not been authorized by Blue Point; • The original identification information of the product or component is modified, changed, or removed;...
Page 41 Blue Point Certificate Number of Inspector：________ Date of Inspection: ___________ Conclusion：Qualified Warranty Card User profile Product Model Product Number Date of Purchase Customer name Warranty Records Date of Warranty Failure and Methods for Date of Customer Repairment Completion Signature...
Page 42 Zhejiang Blue Point Robotics Co., Ltd. Web：http://www.bluepointrobotics.com E-mail：sales@bluepointrobotics.com Tel：+86 0571 - 8858 2932 Address：Room 405, Building C, No.258 Xiqin Street, Yuhang， Hangzhou, Zhejiang, China...
