Summary of Contents for Browning Recon Force Elite HP5 BTC-7E-HP5
- Page 1 MODEL BTC-7E-HP5 PLEASE READ THIS MANUAL BEFORE USE...
- Page 2 We hope you enjoy scouting game for years to come with your new Browning Trail Camera. Our customer service team is here to help you with any questions you may have operating or setting up your new trail camera.
- Page 3 QUICK START GUIDE STEP 2 STEP 1 Press the MODE button to enter the programming screen. Select Insert 8 AA Alkaline Batteries CAMERA SETUP and then set the and an SD card into the camera. time and date. Power on the camera using the ON/OFF switch.
- Page 4 TABLE OF CONTENTS 1- Package Contents 2- Batteries and SD Cards 2- Camera Diagram 3- Battery Installation 4- Main Screen 5- Time and Date 6- Capture Mode 7- Photo Quality / Video Length 8- Video Quality / Photo Delay 9- Multi Shot Modes 10-Temperature Units / Canera Name 11- Image Data Strip / Motion Test 12- Motion Detection / Battery Type / Trigger Speed...
- Page 5 Getting Started Pa c ka g e c o n t e n t s : 1 - Tr a i l C a m e r a 1 - 6 ’ Tr e e S t r a p 1 - I n s t r u c t i o n M a n u a l SD Card Selection I n s t a l l a g o o d q u a l i t y m e m o r y c a r d .

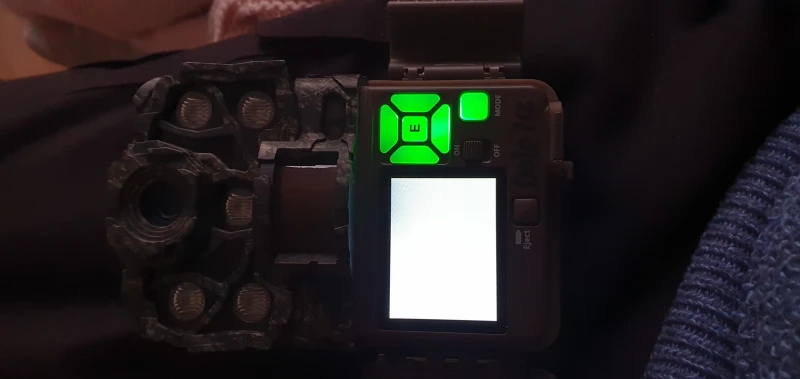

- Page 6 Camera Diagram Camera Lens Infrared LEDs PIR Sensor Light Sensor /Aim LED Microphone Programming Buttons Color Screen Mode Button Power Switch Battery Eject SD Card Slot Button 12 Volt Ext Power Port...
- Page 7 Battery Installation Re l e a s e t h e b a t t e r y t r a y b y p r e s s i n g t h e B a t t e r y E j e c t b u t t o n .
- Page 8 Main Screen Turn the camera’s power on by sliding the power switch to the ON position. MODE : TRAIL CAM 00:30 Resolution 4MP Shot 1 The main screen displays the camera operation mode, pictures or videos taken, 100% 102/1500 pictures or videos possible on the SD card, resolution, multi shot count, camera delay countdown and battery life percentage.
- Page 9 Set Time and Date SETUP DATE / TIME DATE 1 / 0 5 / 2 0 2 2 TIME 1 2 : 2 1 P M To s e t t h e t i m e a n d d a t e : From the HOME screen, press the MODE button once.
- Page 10 CAMERA SETUP Operation Mode SETUP DATE/ TIME To set th e ca me ra’ s ca p tu re OPERATION MODE Mo d e , Highlight the PHOTO QUALITY OPERATION MODE option in VIDEO LENGTH the SETUP MENU, and press ENTER . Using the UP or DOWN arrow keys, select the operation mode for y o u r c a m e r a .
- Page 11 CAMERA SETUP Photo Quality SETUP DATE/ TIME OPERATION MODE To set the PHOTO QUALITY, PHOTO QUALITY highlight the PHOTO QUALITY VIDEO LENGTH option and press ENTER . Use the UP and DOWN arrow keys to make your selection. O P T I O N S : LOW 4 MP, MEDIUM 8 MP, HIGH 12 MP, ULTRA 24 MP Press ENTER button to save.
- Page 12 CAMERA SETUP Video Quality VIDEO QUALITY PHOTO QUALITY MULTI SHOT MODE VIDEO RESOLUTION Both video settings capture in 1 9 2 0 x 1 0 8 0 p r e s o l u t i o n . H I G H resolution takes videos at 30 frames per second.
- Page 13 UP and DOWN arrows. Press the ENTER button to save your selection. Your Browning Trail Camera can take multiple shots each time the camera is triggered. The default setting is 1 picture. Your options are as follows: - SINGLE T h i s i s t h e d e f a u l t s e t t i n g.
- Page 14 CAMERA SETUP Temperature Units VIDEO LENGTH PICTURE DELAY Your temperature units can be SHOT MODE displayed on the picture’s info TEMP UNITS bar in Fahrenheit or Celsius. To change the selection, Press the ENTER button once, and then use the UP OR DOWN arrows to make your selection.
- Page 15 Image Data Strip CAMERA SETUP CAMERA NAME Your trail camera has an IMAGE DATA STRIP information bar that is printed MOTION TEST at the bottom of each photo MOTION DETECTION t a ke n . T h i s i n f o s t r i p s h o w s t h e following information: Temperature, moonphase, date, time and camera ID.
- Page 16 Motion Detection The motoin detection distance can be adjusted to either 60ft (NORMAL RANGE) or 100ft (LONG RANGE). Simply press the ENTER button to toggle between selections using the UP and DOWN buttons. Battery Type To achieve the most accurate battery level reading, your camera can be adjusted to monitor either Alkaline, Lithium or Rechargeable batteries.
- Page 17 Timelapse Settings CAMERA SETUP Your Browning Trail Camera has TIMELAPSE FREQ the ability to function as a TIMELAPSE PERIOD timelapse camera. This is useful DELETE ALL if you want to view the entire activity in a given area such as a large field.
- Page 18 The following options can be changed by highlighting the menu option and changing the selection using the UP and DOWN arrows. Remember to press the ENTER button to save your selection. Delete All By selecting DELETE ALL , all of the images on your SD card are erased.
- Page 19 Smart IR Video Smart IR Video is a feature that will allow a daytime video clip to keep recording as long as the camera detects movement during filming. If the deer stands still in front of the camera and the camera does not detect movement, the camera will end the video clip.The maximum record time for a video clip using this feature is 5 minutes.
- Page 20 Language The language menu allows you to select the language used in the programming menu. The default language is English. Capture Time The capture timer allows you to set a start and stop time for your camera to take pictures or videos. The default setting is 24 hrs.
- Page 21 Image Retrieval The most popular way to review the images on your SD card is to review the images on your home computer. The pictures can be viewed on both PC and Mac computers. Simply insert the SD card into the SD card slot on your desktop or laptop computer.
- Page 22 PICTURES AND VIDEOS CLIPS. In order to playback your TIMELAPSE FILES, you need to install the Browning Buck Watch Timelapse Viewer software. This software will work on any PC running Windows XP or later versions. The Buck Watch Timelapse Viewer can be downloaded from our website at: www.browningtrailcameras.com, and...
- Page 23 For optimal trail camera mounting, we recommend using the Browning Trail Camera Tree Mount. This mount has a locking gimbal that can position your trail camera at the optimal angle.
- Page 24 Warranty ONE YEAR LIMITED WARRANTY Your Browning Trail Camera warranty covers your trail camera for one year. We warrant that your camera will be free from defects in workmanship and materials when operated in normal use and conditions. This warranty will allow Browning Trail Cameras, at its discretion, to repair the product or replace it with a new or refurbished unit.
- Page 25 We o f f e r a f u l l l i n e o f a c c e s s o r i e s f o r u s e w i t h your new Browning Trail Camera.
- Page 26 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 27 Camera Specifications PHOTOS Effec�ve Pixels 1920 x 1080 Ultra 24 MP Removable Memory up to 512GB High 12 MP Trigger Time Adjustable 0.1 - 0.7 Seconds Medium 8 MP Field of View 41 degrees Shoo�ng Modes 4 MP S�ll, Video, Timelapse Plus VIDEOS Ba�ery Requirements 8 AA Alkaline, Lithium or Rechargeable Ba�eries...
