2.4G G-Sensor Control
Foldable Spider Drone
USER MANUAL
Model:
GD96
CAUTION: This product is not a toy. This
is not intended for use by children under the
age of 14. For your safety, please read this user
manual carefully and thoroughly before using
this product.
Please keep this manual somewhere safe for
future reference.
SKU:
SBA-00139 (without Camera)
SBA-00140 (4K HD Stills Camera/
1080p FHD Video Camera)
Advertisement
Table of Contents

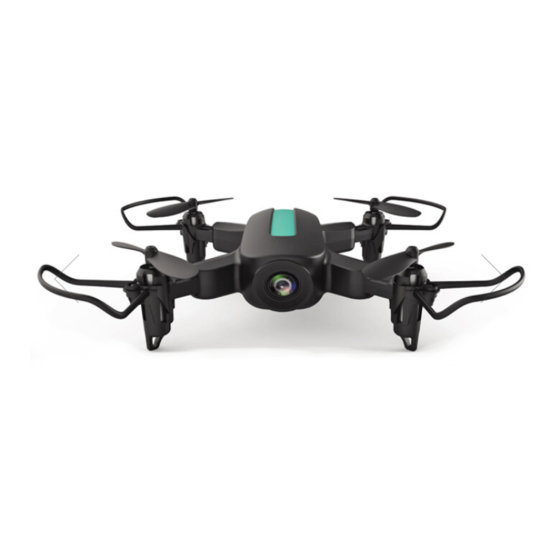

Summary of Contents for Simply Brands GD96
- Page 1 2.4G G-Sensor Control Foldable Spider Drone USER MANUAL Model: GD96 SKU: SBA-00139 (without Camera) SBA-00140 (4K HD Stills Camera/ 1080p FHD Video Camera) CAUTION: This product is not a toy. This is not intended for use by children under the age of 14.
-
Page 2: What's Included
What’s Included 1x Foldable Spider 1x Remote Control Drone (rechargeable (3x AAA batteries battery included) not included) 2x Backup Propellers 1x USB Charger 1x Screwdriver 1x User Manual Please Note Please carefully check the number of accessories shown above are not missing. Please provide proof of purchase and contact the retailer for any replacement parts if they are missing. -
Page 3: Pre-Flight Preparation
Pre-Flight Preparation 1. Opening the Wings Wings now extended 2. Attaching the Protective Guard Align the protective guard with the bottom of the motor and firmly press it into place. 3. Attaching the Propellers Align the propellers to the motor shaft and press them in until firmly attached (match Propeller A with Shaft A and Propeller B with Shaft B). - Page 4 Pre-Flight Preparation 4. Battery Charging for the Drone A. Remove the rechargeable lithium battery pack from the bottom at the drone. B. Connect the USB charger with the charging port of the lithium battery pack. Please Note Battery pack’s red LED indicator light will be off whilst charging and it will only switch on when fully charged.
-
Page 5: Battery Pack Guidelines
Battery Pack Guidelines • There is a certain risk when using the drone’s lithium battery. It may potentially cause a fire, body injury or property damage. Users must be aware of these risks and take full responsibility in ensuring the battery isn’t improperly used. -
Page 6: Remote Control Overview
Remote Control Overview High / Low Speed One-key Start / Landing (long press for One-key Flips & emergency stop) Rolls 360° Power Switch Left Joystick (press Indicator Light and hold down for ‘Headless Mode’) Right Joystick (press and hold down for ‘Fine-tuning Mode’) Inserting AAA Lithium Batteries Open the battery cover and correctly insert the 3x... - Page 7 Transmitter and Receiver signal connection Turn on the drone and place it on a level surface, the drone’s indicator light should start to slowly blink, which indicates it’s waiting for pairing. Switch on the remote controller. When the remote controller’s indicator light blinks, move the left joystick upwards and you’ll hear a beep sound.
-
Page 8: Basic Flight Controls
Basic Flight Controls Use the left joystick to control the flight altitude (ascent or descent) and to rotate around to the left or right. The right joystick lets you control to go forwards or backwards as well as being able to bank to the left- hand side / right-hand side. - Page 9 Basic Flight Controls Flips & Rolls When the drone is flying above 3 metres high, you can press the ‘360° flips and rolls’ button and move the right joystick to any specific direction you want which will make the drone rotate in that chosen direction. 360°...
-
Page 10: Headless Mode
Headless Mode Using ‘Headless Mode’ helps to make it easier and safer to learn how to fly a drone especially if you are a beginner. The drone will automatically fly in the direction you want it to regardless of the direction it’s facing. -
Page 11: Fine-Tuning Mode
Fine-tuning Mode When the drone spins uncontrollably or ‘yaws’ in the air, please use the fine-tuning mode. Press down the right joystick and push the joystick to the opposite direction the drone is spinning or yawing, e.g. push right if spinning to the left). You should now be able to fine-tune the direction until the drone stays oriented. -
Page 12: Frequently Asked Questions
Frequently Asked Questions Problems Causes Solutions Remove the The drone’s battery pack and battery pack isn’t re-install the right correctly installed way in Do not fly on Control failure windy days. The drone’s Wind is too strong performance will become less stable and risk it crashing The rotation speed... - Page 13 Drone control using Wi-Fi App Install the Drone’s App 1. Search “WiFi_Cam” in the Apple’s App Store or Google Play to get the app. 2. Alternatively, you can scan the QR code to download the app. Pairing the Drone using the App 1.
- Page 14 Drone control using Wi-Fi App...
- Page 15 Download the instructions in other languages Mode d’emploi en Français Instrucciones en Español Instrukcja w języku polskim...
- Page 16 Part of Customer Services: fulfilledby@wowcher.co.uk Importer Name: Simply Brands (Asia) Ltd Importer Address: Unit 04-05, 16th Floor, The Broadway No. 54-62 Lockhart Road, Wanchai, Hong Kong Made in China...
