Summary of Contents for SpeedFun M420
Page 1

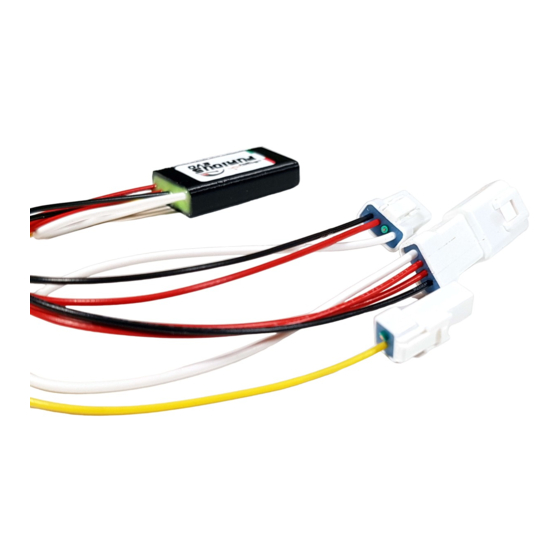

ISTRUZIONI INSTRUCTIONS for BAFANG FURIOUS EVO M420 M400 M300 (Max Drive) (Modest Drive) Compatibile con ogni tipo di display Compatible with every display model Compatible avec tous les types d'écrans Data 02 12 2021 Pagina 1/10...
Page 2
Suivez les mêmes étapes même en présence de Bafang M4200 (vidéo ici : https://www.youtube.com/watch?v=HPBEg6oLMHU) Certains fabricants de vélos électriques montent le moteur M420 de manière à ce que le connecteur des feux avant, intéressé par le montage de notre Furious, soit positionné entre le moteur et le cadre de manière invisible ; dans ce cas, il est nécessaire de retirer le moteur du châssis et la connexion sera accessible.
Page 3
ISTRUZIONI M400 MAX DRIVE INSTRUCTIONS M400 MAX DRIVE INSTRUCTIONS M400 MAX DRIVE Rimuovere le due viti indicate dalle frecce Remove the two screws indicated by the arrows Retirez les deux vis indiquées par les flèches Rimuovere la pedivella con un estrattore per perno QUADRO Remove the crank with a square pin puller Retirez le bras de manivelle avec un extracteur de goupille carrée Rimuovere il carter di protezione in plastica...
Page 4
Aprire il carterino che contiene tutti i connettori Open the casing that contains all the connectors Ouvrez le boîtier qui contient tous les connecteurs Seguendo il cavetto che proviene dal SENSORE DI VELOCITA’ individuare il Connettore a tre o quattro poli (1) che lo collega al motore Individuare il Connettore a due poli (2) dell’USCITA LUCI ANTERIORE (è...
Page 5
Procedere ora in ordine inverso richiudendo tutti i carter e rimontando la pedivella FARE ATTENZIONE A NON ESERCITARE PRESSIONE SUL DISPOSITIVO E SUI FILI!!! Now proceed in reverse order, closing all the casings and refitting the crank arm BE CAREFUL NOT TO EXERCISE PRESSURE ON THE DEVICE AND THE WIRES !!! Procédez maintenant dans l'ordre inverse en fermant tous les carters et en remontant la manivelle...
Page 6
ISTRUZIONI M300 MODEST DRIVE INSTRUCTIONS M300 MODEST DRIVE INSTRUCTIONS M300 MODEST DRIVE Rimuovere le due viti indicate dalle frecce. Rimuovere il carter di protezione in plastica Remove the two screws indicated by the arrows. Remove the plastic protective casing Retirez les deux vis indiquées par les flèches. Retirez le boîtier de protection en plastique Seguendo il cavetto che proviene dal SENSORE DI VELOCITA’...
Page 7
Aprire il Connettore (1) SENSORE VELOCITA’ premendo sulla linguetta di sblocco e collegare ai connettori così ottenuti i due connettori a tre o quattro poli di Furious. Collegare al Connettore (2) USCITA LUCE ANTERIORE il connettore a due poli di Furious. Open the SPEED SENSOR Connector (1) by pressing on the release tab and connect the two Furious three or four-pole connectors to the connectors thus obtained.
Istruzioni uso Instructions for use Mode d'emploi INFO GENERALI Lo scopo di Furious EVO è di manipolare la velocità di rotazione della ruota posteriore e di comunicare al motore una velocità sempre inferiore ai 25 kmH in modo da ottenere una velocità reale con motore attivo molto alta. Il limite massimo di velocità sarà dunque dettato dalla potenza del motore aggiunta alla potenza espressa dalle proprie gambe.
FURIOUS EVO Vers. EASY Furious Evo Vers. Easy must be connected "as a bridge" between the speed sensor and the engine. - It is supplied ready to use in "ACTIVE" mode .. - It can be activated and deactivated at will and keeps the setting even after the bike is turned off. Activation and deactivation: - Turn the ebike off and on again.
Page 10
IMPORTANT Once the SpeedFun speed unlocking device has been installed, the electric bicycle, exceeding the 25 kmH limit, is compared to a moped and as such, if it circulates in public places, needs the approval / registration, is subject to payment of the road tax and insurance coverage, must have the plate, can not circulate on the bike paths and the driver has the obligation of driving with license and must use the helmet.
