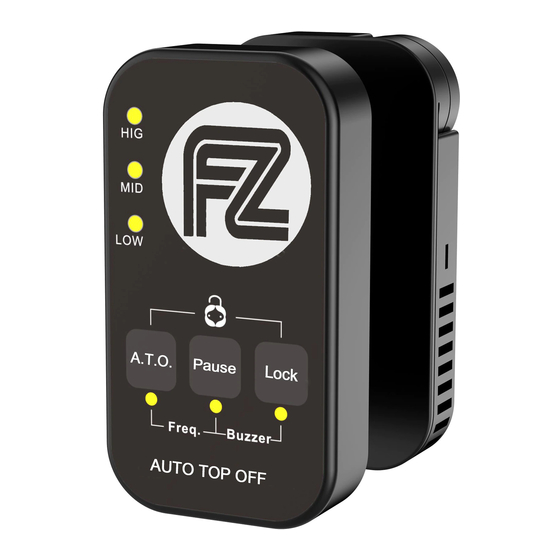

F Z - A T O
USER MANUAL
Aquarium Water Auto Top Off System
Web:
www.fzaqua.com
Email:
service@fzaqua.com
Facebook:
www.facebook.com/Fzoneaqua
Messenger:
@Fzoneaqua

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FZ-ATO and is the answer not in the manual?

Questions and answers

Summary of Contents for Fzone FZ-ATO

  • Page 1 F Z - A T O USER MANUAL Aquarium Water Auto Top Off System Web: www.fzaqua.com Email: service@fzaqua.com Facebook: www.facebook.com/Fzoneaqua Messenger: @Fzoneaqua...
  • Page 2: Table Of Contents

    CONTENTS ▪ Key Words Definition Page 3 ▪ Chapter I : Safety Instructions Page 4 Page 4 ▪ Chapter II: IInstallation Requests Page 5 ▪ Chapter III: Working Flow Chart Page 6 ▪ Chapter IV: Precautions Page 7 ▪ Chapter V: How to Install the ATO 4.1 Check before Install 4.2 Installation Diagram 4.3 Installation Steps...
  • Page 3: Key Words Definition

    Key Words Definition ATO or A.T.O.: The Auto Top Off device Initialization: Press the three buttons("A.T.O.", "Pause", "LOCK") simultaneously for 5 seconds, hear a "beep", the device starts the initialization. SPT: When the device is initialized, it will calculate the SPT (single pumping time) according to the size of the tank.
  • Page 4: Chapter I : Safety Instructions

    Chapter I : Safety Instructions Please read the following safety instructions thoroughly before using this device. No read or no follow safety instructions will lead to severe damages or accidents. ▪ The power adapter and controller is not waterproof, please keep it dry, do not put it in water. ▪...
  • Page 5: Chapter Iii: Working Flow Chart

    Chapter III: Working Flow Chart The device ensures the water level to be maintained between MID and LOW through three sensors and an intelligent algorithm of SPT (single pumping time). The working flow chart as follow: ▪ When the water level is lower than LOW level, the LOW light will turn off and the water pump will start the 1st pumping for a SPT period.
  • Page 6: Chapter Iv: Precautions

    Chapter IV: Precautions ▪ The water-outlet should be higher than the water surface to prevent siphoning. (Users can prepare their own anti-siphon valve according to their needs). ▪ The installation location of the controller must be clean. ▪ The internal magnetic module must be clean to avoid optical sensor malfunction of the external controller module.
  • Page 7: Chapter V: How To Install The Ato

    Chapter V: How to Install the ATO Installation steps: Step 1: Install the ATO controller on the tank wall Target water level and align the target water level between "LOW" and "MID". Not exceed the middle line of Step 2: the “LOW”...
  • Page 8 Step 3: Connect the pump tube with the water inlet tube, and insert power adapter with socket, according to above installation steps. Step 4: Press the three buttons("A.T.O.", "Pause", "LOCK") simultaneously for 5 seconds, hear a "beep", the device starts the initialization, drive the water pump to do the initial pumping, till the water level reaches “MID”...
  • Page 9: Chapter Vi: Advanced Settings

    Chapter VI: Advanced Settings One-key manual water pumping: Press the "ATO" button, the pump can be started to pump water in a SPT period (When the water reaches the MID level, it will automatically stop). One-key manual pause: Press the "Pause" button, the ATO automatical pumping function will be temporarily stopped, the pump will not be started when the water is lower than the "LOW"...
  • Page 10: Chapter Vii: Buzzer Modes And Settings

    Chapter VII: Buzzer Modes and Settings Buzzer modes: ▪ Mode A: The buzzer turns on, after the "di" sound. ▪ Mode B: The buzzer turns off, after the "di di" sound. ▪ Mode C: The buzzer turns on, but the HIG level monitoring alarm turn off (See the Chapter VI: Advanced Settings -High water level monitor), after the “dididi”...
  • Page 11: Chapter Vii: Alarm Situations

    Chapter VII: Alarm Situations If the buzzer alarm turn off, there is only “LOW”, ”MID”, ”HIG” lights flash, no buzzer alarm. The reasons of failure will be the following situations: Failure Situation Reasons ▪ The water pump is broken. ▪ Long beep ▪...
  • Page 12 Web: www.fzaqua.com Email: service@fzaqua.com Facebook: www.facebook.com/Fzoneaqua Messenger: @Fzoneaqua THIS PRODUCT IS INTENDED FOR AQUARIUM USE ONLY. KEEP IT AWAY FROM CHILDREN.
