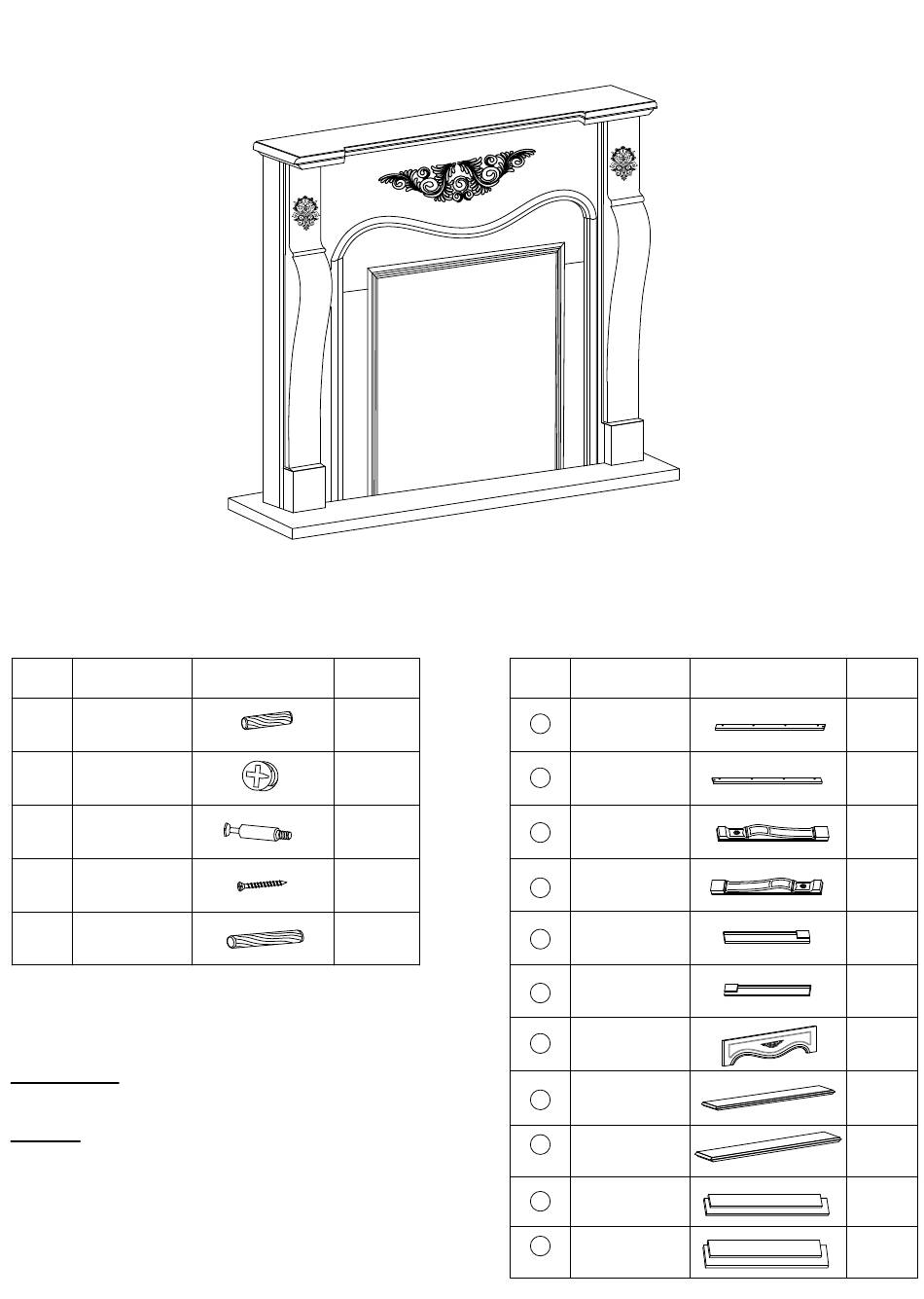

ASSEMBLY INSTRUCTIONS
THIS FIRE SURROUND IS TO BE INSTALLED ACCORDING TO THESE INSTRUCTIONS
HARDWARE LIST
CODE
NAME
WOOD DOWELS
A
(Ø6*20mmL)
CAM LOCKS
B
(Ø15*12mmL)
CAM BOLTS
C
(Ø6*35mmL)
SCREWS
D
(ØM4X25mmL)
SCREWS
E
(ØM6X30mmL)
Please check that you have all contents shown before starting assembly.
Assemble on a soft surface to avoid damaging the product or your floor.
Tools Required
Phillips screwsdriver(medium)
Drill and 6mm suitable drill bit
Important
To ensure safe and stable installation:
1. The assembled Fire Surround can be fixed/secured to wall.
2. The wall must be sturdy and in good repair.
3. Some walls require alternative fixings(not included).
4. When drilling into the wall, check for hidden pipes and cables.

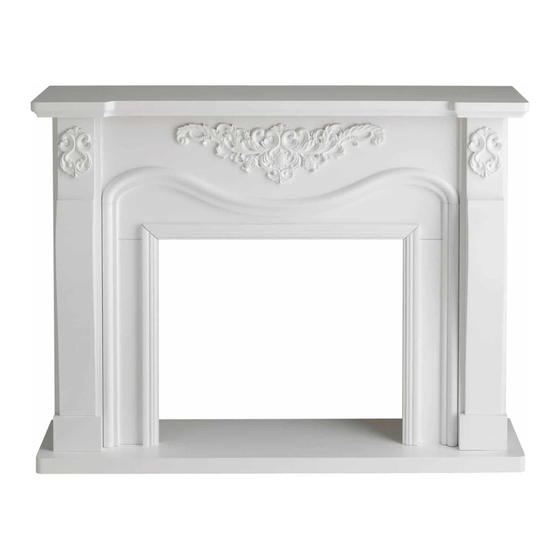

Prescott White Mantel
FIGURE
QTY
4PCS
21PCS
21PCS
22PCS
8PCS
PARTS LIST
CODE
NAME
LEFT SIDE
1
PANEL
RIGHT SIDE
2
PANEL
FRONT LEFT
3
COLUMN
FRONT RIGHT
4
COLUMN
SUPPORT
5
PANEL
SUPPORT
6
PANEL
CURVED
7
PANEL WITH
BIG FLOWER
TOP PANEL
8
9
BELOW PANEL
FRONT FRAME
10
SIDE PANELS
FRONT FRAME
11
UPPER PANEL
FIGURE
QTY
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
2PC
1PC
Advertisement
Table of Contents
Related Manuals for Early Settler Prescott White Mantel
Summary of Contents for Early Settler Prescott White Mantel
- Page 1 ASSEMBLY INSTRUCTIONS THIS FIRE SURROUND IS TO BE INSTALLED ACCORDING TO THESE INSTRUCTIONS Prescott White Mantel PARTS LIST HARDWARE LIST CODE NAME FIGURE CODE NAME FIGURE WOOD DOWELS LEFT SIDE 4PCS (Ø6*20mmL) PANEL CAM LOCKS RIGHT SIDE 21PCS (Ø15*12mmL) PANEL...
- Page 2 C×8pcs B×8pcs Step 1 Step 1. Assemble the left side panel (1) and front left column (3) by using 4 pcs cam locks B and 4 pcs cam bolts C . The same way to assemble the right side panel (2 )and front right column (4 ) E×4pcs A×4pcs...
- Page 3 D×12pcs Step 3 Step 3. Assemble the front frame panels ( 10) (11) by using total 4 wood dowels. then fix the complete part to the assembled step 2 by using 12 pcs screws D...
- Page 4 C×13pcs B×13pcs Step 4 Step 4. Fix the top panel (8) and base panel(9) to the middle body by using total 13 pcs cam locks B and 13 pcs cam bolts C...
