Summary of Contents for Ascon Pool HJ3172

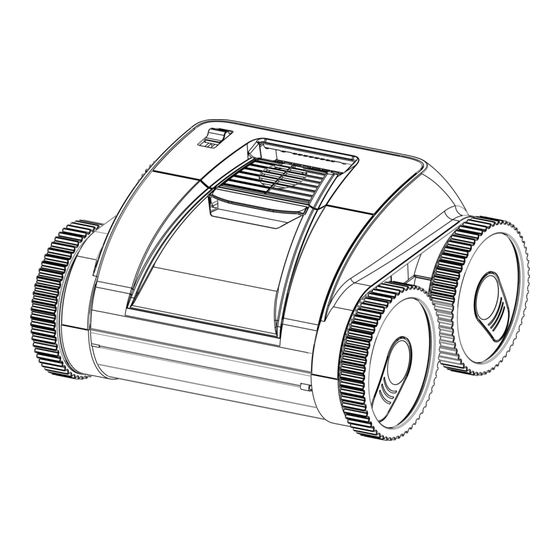

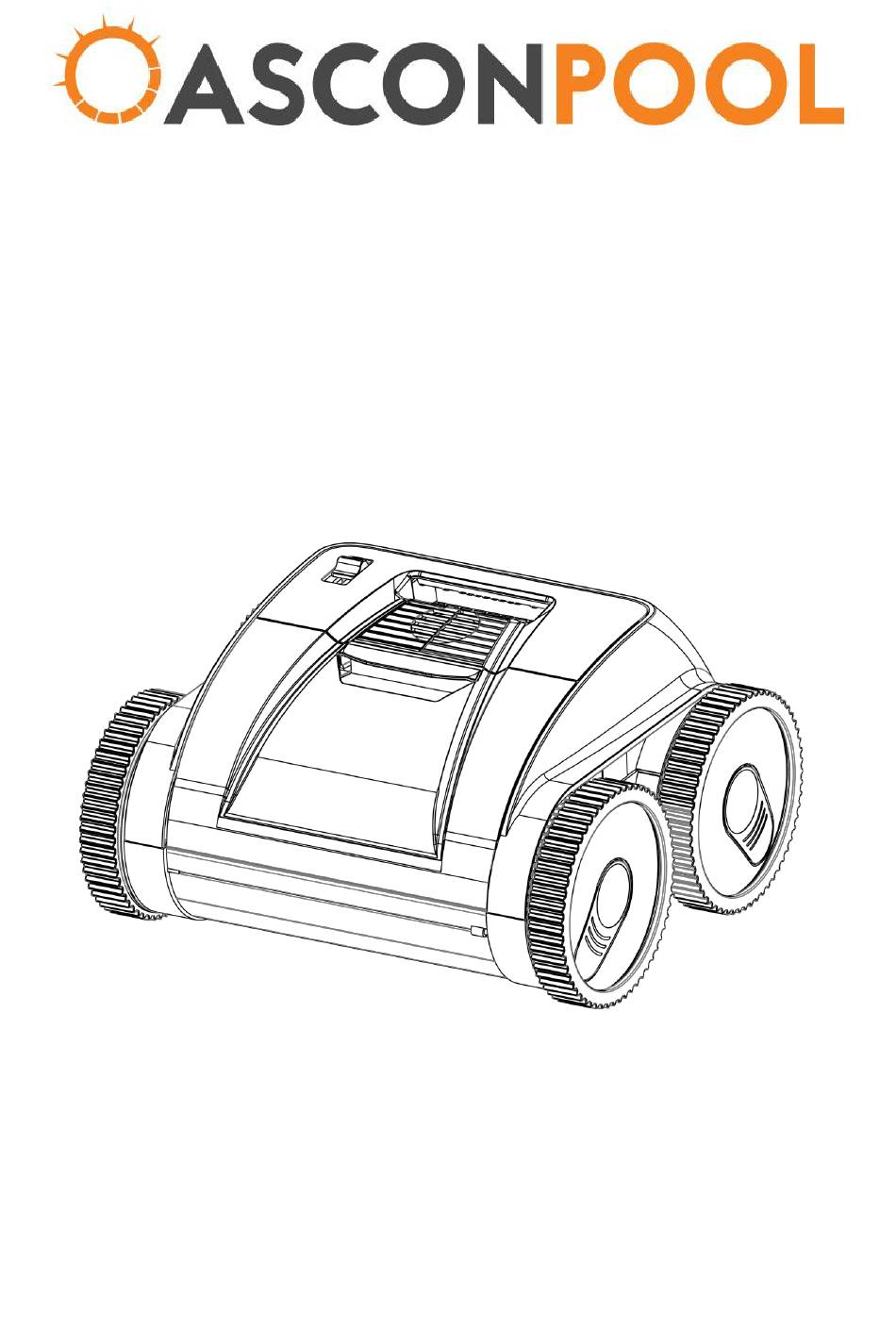

- Page 1 ROBOTIC POOL CLEANER (CORDLESS) BUGSON Model: HJ3172 USER MANUAL...
-
Page 2: Important Precaution
Important! Thank you for purchasing the Bugson Cordless Robotic Pool Cleaner. Please read through the entire manual before using your new robotic pool cleaner. We are not held liable for any loss or injury caused by improper use. READ AND FOLLOW ALL INSTRUCTIONS CAUTION Failure to comply with the following cautions could cause damage to pool cleaner or personal loss and injury. - Page 3 15. Use only identical replacement parts when servicing. Do not attempt repair of the cleaner and charger by yourself. Do not charge any other devices with this charger. 16. The cleaner should be charged if it needs to be stored for a long time (over 6 months) to maintain battery life.
-
Page 4: Table Of Contents
Contents Important Precaution ....................2 Section 1. Attention ....................5 Section 2. Brief Introduction ..................6 Section 3. General Specification ................6 Section 4. Operation ....................7 4.1 Switch button and indicator ..............7 4.2 How to charge ..................8 4.3 Filter cleaning ................... -
Page 5: Section 1. Attention
Section 1. Attention 1. Put into the pool with the cleaner bottom towards the wall. Hold the top handle and switch on the cleaner. The cleaner will start working after 20 seconds when emptying trapped air inside (make sure to empty the inside air in order to make the robot work well), then the cleaner can immerse into the pool floor. -
Page 6: Section 2. Brief Introduction
Section 2. Brief Introduction The robotic pool cleaner HJ3172 is a new type of highly efficient and energy-saving swimming pool cleaning robot. It cleans the pool walls and bottom automatically without replacing the pool water. It is totally environmental-friendly. For safe operation, the cleaner is powered by a rechargeable lithium battery (12.1V, 8.6Ah). -
Page 7: Section 4. Operation
Section 4. Operation 4.1 Switch button and indicator ② Indicator ① Switch button Item Function Description Push the button to ON to power on the cleaner; ① Switch to power on/off Push the button to OFF to power off the cleaner 1. -
Page 8: How To Charge
4.2 How to charge 4.2.1 Remove the cleaner from the pool ① Switch off (No indictor flashes) the cleaner ② Charge the cleaner indoor and at least 3m (appr. 10ft) from the edge of the pool for charging. ③ Red light indicates the battery is being charged. ④... -
Page 9: Filter Cleaning
4.3 Filter cleaning 4.3.1 Open the top cover: Put the robot out of the pool and open the top cover (Figure 4-1), the filter basket is located as shown in Figure 4-2. Figure 4-1 Figure 4-2 4.3.2 Take out the filter basket (Figure 4-3) 4.3.3 Wash filter basket (Figure 4-4) Figure 4-4 Figure 4-3... -
Page 10: Section 6. Packing List
Section 6. Packing list Item Description Name Model QTY (pc) Remark Cleaner HJ3172 In carton Charger In plastic bag Cleaner User manual In plastic bag Hook In plastic bag... -
Page 11: Section 7. Warranty
Section 7. Warranty This product has passed all quality control and safety tests, conducted by the technical department of the manufacturer. If the product fails due to manufacturer defects, please contact the distributor. Warranty information: 1. The warranty is covered for 24 months from the date of its original purchase. 2.
