Summary of Contents for PIKO PK1903-P

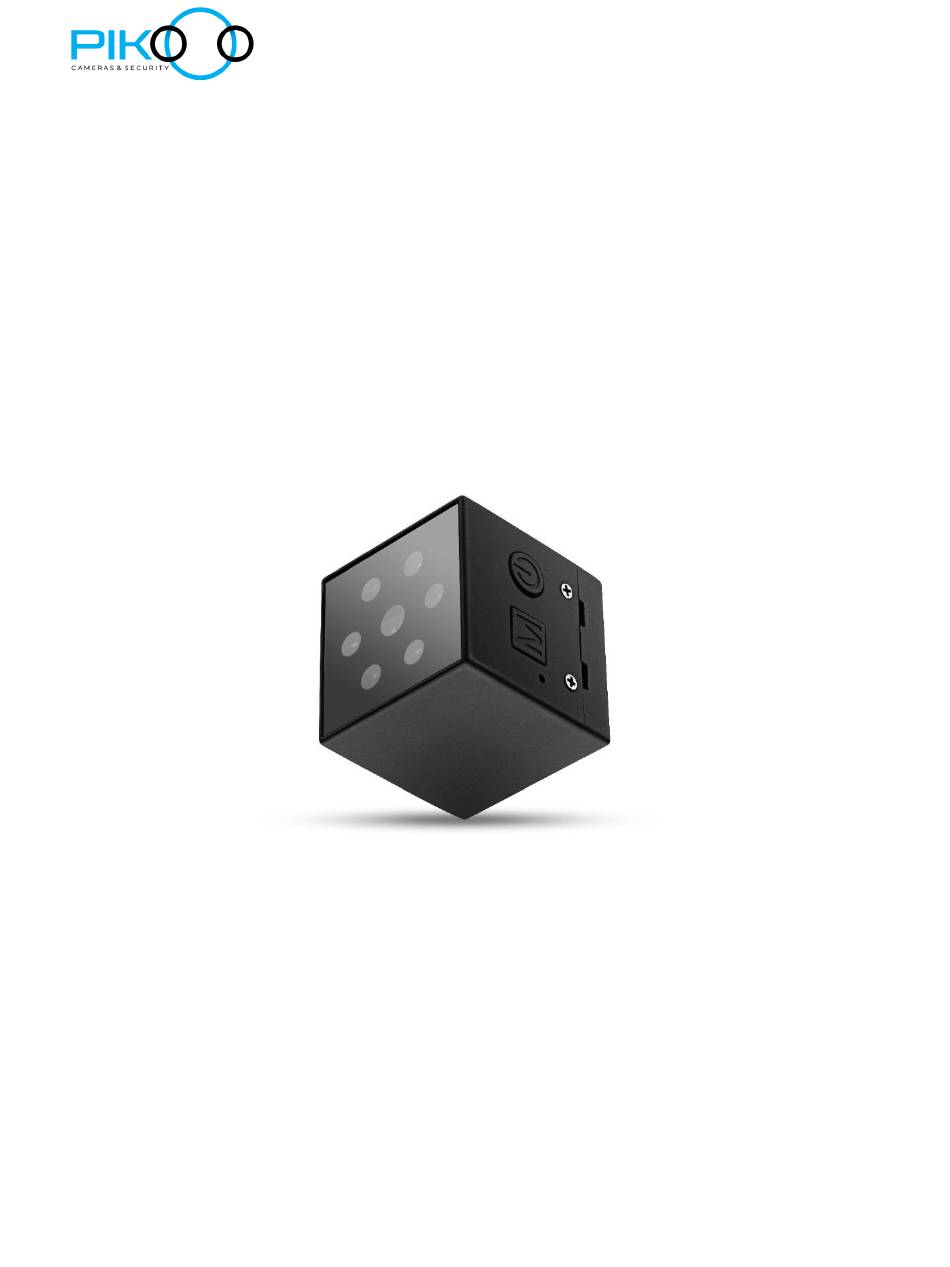

- Page 1 User Guide for Mini Camera Model PK1903-P User Guide for Mini Camera Model PK1903-P Please read the instructions carefully before using the device...
-
Page 2: Table Of Contents
User Guide for Mini Camera Model PK1903-P Table of Contents TOPIC PAGE 1. Introduction ............................. 3 2. Package Content ..........................4 3. Use of accessories ........................... 5 4. Buttons & Functions ........................6 5. Product Parameters ........................7 6. Product Operation .......................... 8 6.1 TF/SD Memory Card Insertion .................... -
Page 3: Introduction
User Guide for Mini Camera Model PK1903-P 1. Introduction Thank you very much for purchasing “PIKOOO” Mini Hidden Camera Model PK1903-P. This User Manual was purely designed and written to simplify the operational process for you, our valued customer. In addition to this written Manual we prepared for our customers, a full Video, and Mini videos that will show, step by step, the different functions and using options, in a simple and clear way. -
Page 4: Package Content
User Guide for Mini Camera Model PK1903-P 2. Package Content (Camera & Accessories) -
Page 5: Use Of Accessories
User Guide for Mini Camera Model PK1903-P 3. Use of Accessories Sport Clip + Elastic Band: Clip + Multifunctional Base: Mounting device:... -
Page 6: Buttons & Functions
User Guide for Mini Camera Model PK1903-P 4. Buttons and Functions Picture 1 Note: Micro SD/TF Card is not included... -
Page 7: Product Parameters
User Guide for Mini Camera Model PK1903-P 5. Product Parameters Video Format: AVI Video Coding: M-JPEG Video Resolution: 1920*1080 Video Frame Rate: 30 fps Photo Resolution: 4032*3024 Picture Format: JPEG Motion detection record: Support Battery Capacity: ~ 180 mAh Recording time (Without cable): ~ 60 minutes... -
Page 8: Product Operation
User Guide for Mini Camera Model PK1903-P 6. Product Operation 1. TF/SD Memory Card insertion: I. Note: Use Micro SD/TF Card 8GB -32 GB. (Card is not included) II. Please insert the Micro SD/TF Card in the right orientation (See picture 2) Picture 2 III. -
Page 9: Charging The Battery
User Guide for Mini Camera Model PK1903-P 2. Charging the Battery: (please fully charge the device before use) I. Use the provided Mini-USB cable to charge the battery II. Charging options: 1. Connect to 5V-1A charger 2. Connect to portable power bank charger (5V-1A) 3. -
Page 10: Video Recording
User Guide for Mini Camera Model PK1903-P 4. Video recording I. Power the Camera. 1. Indicator: the camera need to be in stand-by mode. II. Click the power button once 1. Indicator: The indicator light will flash 3 times, and then go off. -
Page 11: Motion Detection Mode
User Guide for Mini Camera Model PK1903-P 5. Motion Detection Mode I. Power the Camera. II. Click the Mode button once. 1. Indicator: The Blue indicator lights will be On (Stand-by Mode). III. Click the Power button once 1. Indicator: The... -
Page 12: How To Take Photos
User Guide for Mini Camera Model PK1903-P 6. How to take Photo I. Power the Camera (Stand-by Mode) II. Click the Mode key twice. Indicator: indicator light will go OFF. Blue light will go On. 2. The device now is in Photo Mode! III. -
Page 13: Infrared Night Vision Lights Switch
User Guide for Mini Camera Model PK1903-P 7. Infrared Night Vision lights switch I. Turning the Infrared lights: 1. Power the Camera (Stand-by Mode). 2. Press the Power button for 2 seconds and release. Indicator: Blue indicator light will flash 2 times. -
Page 14: Recording While Charging The Camera
User Guide for Mini Camera Model PK1903-P 8. Recording while charging the Camera I. When Camera is OFF, Connect the Camera into a power source. Indicator: Blue indicator lights will flash at the same time. II. Click the Power button once. -
Page 15: Time Setting
User Guide for Mini Camera Model PK1903-P 10. Time Setting I. Turn OFF the device. II. Connect the device to a computer. 1. Note: Once connected, the computer will recognize the device as an external source. III. Locate the “TIMERSET.TXT” file in the folder on your computer. -
Page 16: Downloading Data From Camera
User Guide for Mini Camera Model PK1903-P 11. Downloading data from the Camera I. Connect the Camera to your computer (No Need to take out the SD Card) 1. Note: Once connected, the computer will recognize the device as an... -
Page 17: Disclaimer
User Guide for Mini Camera Model PK1903-P 7. Disclaimer 1. The usage of this device is subjected to the relevant laws and regulations DO NOT use this product for any illegal activities. DO NOT point the Camera lens to the direct sun light, it may cause a permanent damage.
