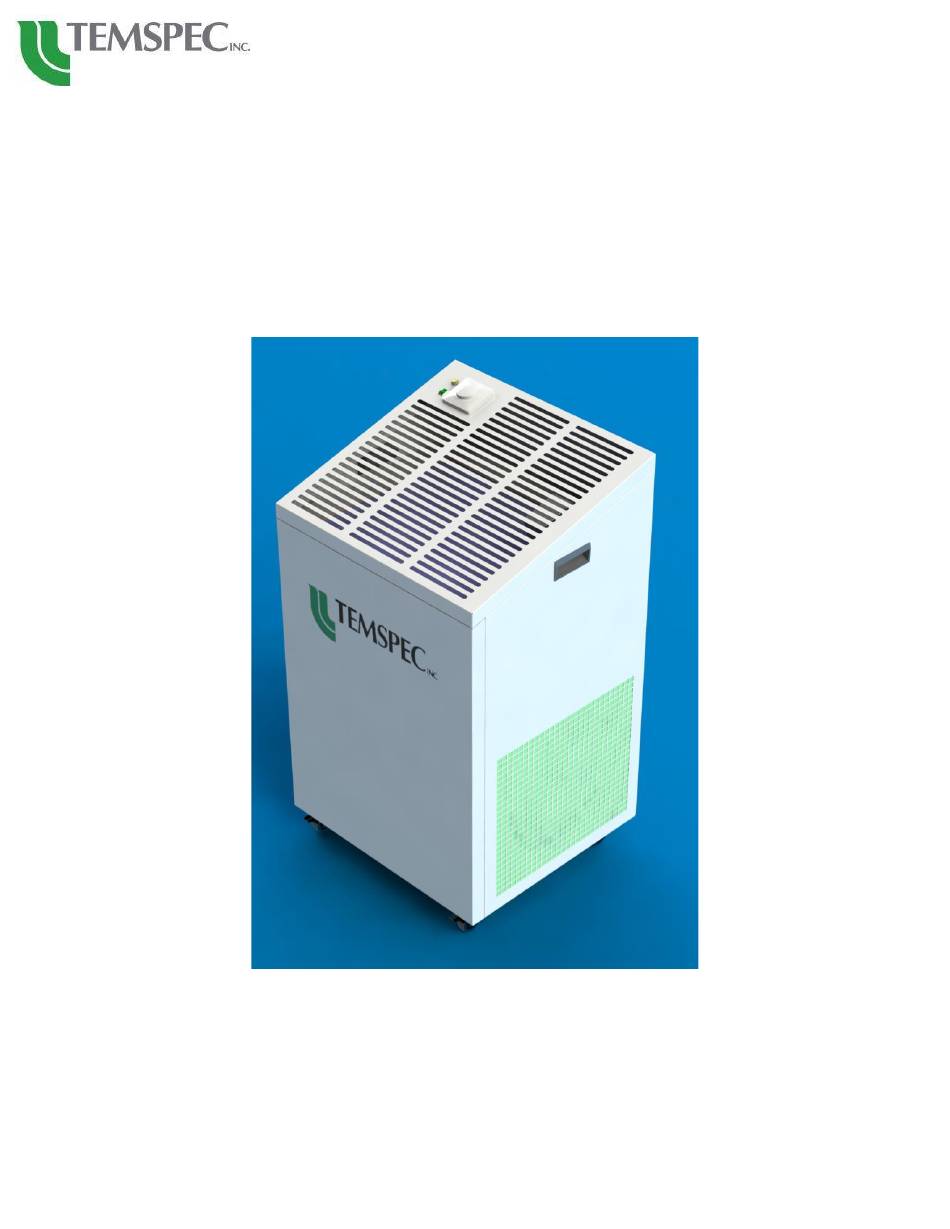

- Page 1 2360 Millrace Court Tel: (905) 670 3595 Mississauga, Ontario Fax: (905) 670 3592 Canada, L5N 1W2 Web: Temspec.com Air Medic Air Filtration/ Sterilization Unit TIF 06 Installation, Operation & Maintenance Manual TIF 06 IOM 2020.0...
-
Page 2: Table Of Contents
Contents List of Tables ....................................... i Safety Warnings .................................... - 1 - Product Overview ..................................- 2 - Model Number ..................................- 2 - Operation ...................................... - 2 - On/Off switch ..................................- 2 - Filter Clogged Indicator Light ............................... - 2 - Fan Control ................................... -
Page 3: Safety Warnings
1 Safety Warnings When operating electrical appliances, basic precautions should be followed. WARNING To reduce risk of fire, electrical shock, or injury: • Do not use outdoor or on wet surfaces. • Use only as described in this manual. • Do not use with damaged cord or plug. •... -
Page 4: Product Overview
6ft (2m) physical distancing. 2.1 Model Number For the full model numbers available and product selection options please visit our website at www.temspec.com. 3 Operation The Air Medic Unit has a few different control options depending on the configuration chosen. For all units, the Air Medic must be plugged into a standard 120V receptacle with ground pin. -
Page 5: Unit Entry
4 Unit Entry There are two separate access panels located at the back of the unit 4.1 Lower Access Panel Lock The Air Medic have a Keyed Cam Lock as an optional accessory. This lock is located on the upper middle of the lower access panel. -
Page 6: Motor Access Panel
4.4 Motor Access Panel This panel is located behind the lower access panel and contains the latch for the cam lock. This panel can be removed simply by removing the screws that hold it to the fan bulkheads. 5 Air Medic Component Installation, Maintenance and Replacement Instructions CAUTION: Before attempting to service the unit, be sure the power is off and unplugged... -
Page 7: Hepa Filter
5.1.2 HEPA Filter 5.1.2.1 Description The Air Medic comes standard with a 6-inch HEPA (High Efficiency Particulate Air) filter. This filter is designed to stop at least 95% of all particles 0.3µm or larger. This is same level of filtration as N95 masks. 5.1.2.2 Maintenance Interval The unit is equipped with a filter change light that will... -
Page 8: Casters (Optional Accessory)
5.2 Casters (Optional Accessory) 5.2.1.1 Description to the base of the unit, with the spring washer placed between the screw head and the caster base. The standard option for the Air Medic is rubber foot pads for stability. An optional accessory for the Air Medic is four swivel casters, two are locking. -
Page 9: Ionizer (Optional Accessory)
5.4 Ionizer (Optional Accessory) 5.4.1.1 Description If there is any moisture on the brushes when the unit is turned on, it may cause failure of the ionizer. An optional accessory is the Ionizer. This is a small device that creates both negative and positive ions into the airstream. 5.4.1.4 Replacement Instructions These ions attract and stick to airborne pollutants and harmful... -
Page 10: Fan Assembly
5.5 Fan Assembly 5.5.1.1 Description The air medic comes with two high efficiency backward inclined fans. These fans modulate their speed based on the input control signal which varies from 0-10VDC, based on the controls selected in the Fan Control section. All controls within the fans are internally sealed and do not need any maintenance. -
Page 11: Warranty Information
6 Warranty Information All Air Medic units carry a parts only warranty for a period of 1 year from date of shipment. For all Warranty and Part Sales queries please visit Temspec.com or call 888-836-7732. Table 1: Component Replacement Frequency Size Part No. -
Page 12: Parts List
7 Parts List CASTER WHEELS LOCKING CASTER WHEELS LIFT HANDLE WCX 51608 WCX 51608 VHX 01004 KEYED CAM IONIZER UVC Bulb IONIZER COVER LOCK 3/4IN FAN SCREW EIN 02400 EUL 01516 FUM 9060 NXL 01008 NSL 00306 BFE 025017 CARBON ON/OFF UVC THUMB FILTER...
