Page 2: Specifications

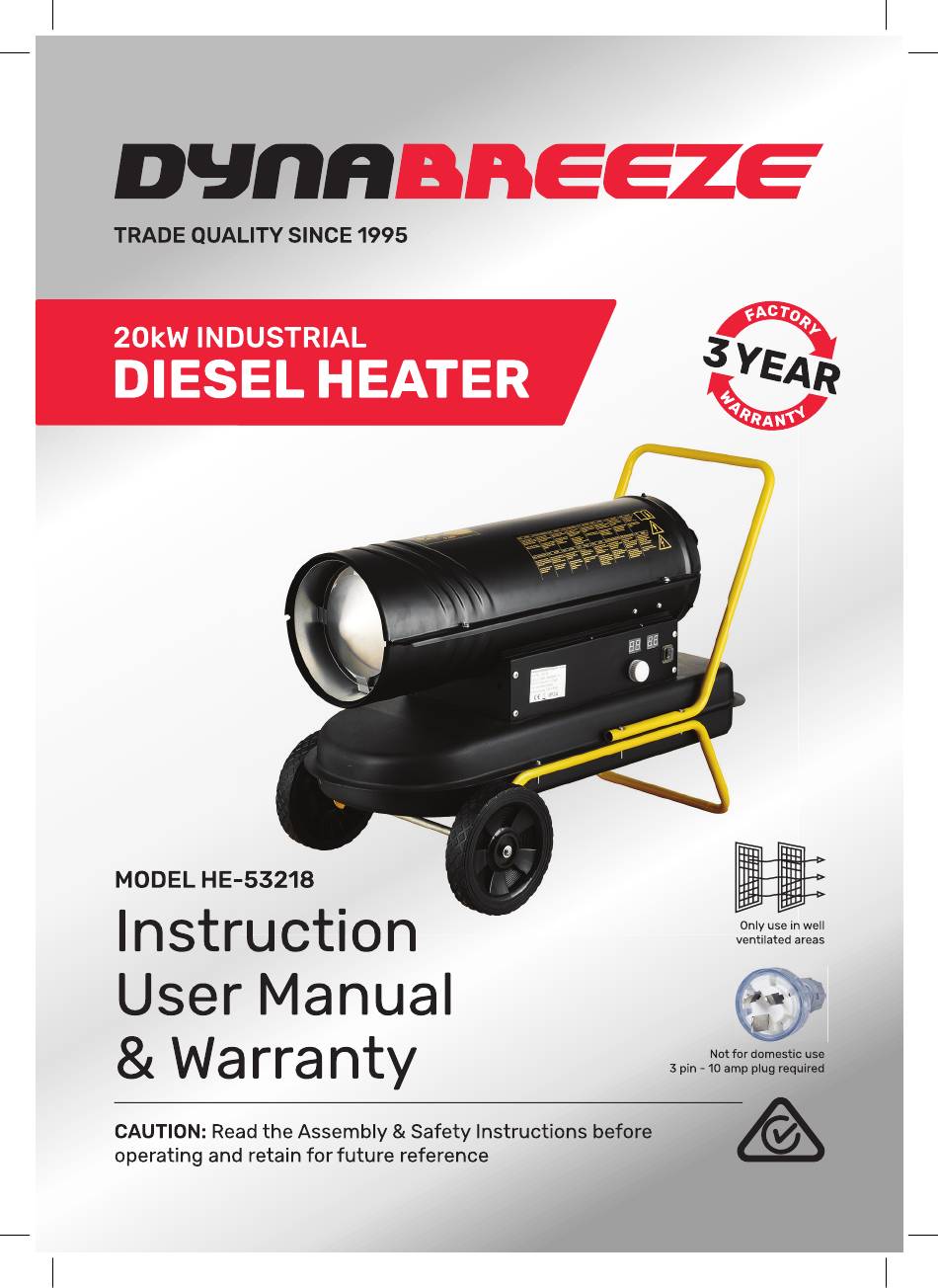

Thank you & Congratulations on the purchase of your Dynabreeze Industrial 20kW Diesel Heater To find out more information on this product, please visit www.dynabreeze.com.au or contact: Tradeware Address 45 Birralee Rd, Regency Park SA 5010 Phone 1300 658 494... - Page 3 OPERATION CONDITIONS & SAFETY PRECAUTIONS When using electrical appliances, basic safety precautions should be WARNING: followed to reduce the risk of fire, electric shock and injury to persons or property. • If the power cord and/or plug is damaged, WARNING: Not for domestic use - 3 PIN - it must be replaced by Tradeware, a service 10 amp plug.
- Page 4 OPERATION CONDITIONS & SAFETY PRECAUTIONS • Only position the Heater in the normal • Do not use the appliance in place with upright position (on the wheels). combustible powder, waste-paper, wood crumbs, fibre scraps. If these powders are • Do not place the Heater near walls, corners sucked in the Heater and heated up, flame or low ceilings.
-
Page 5: Parts Identification

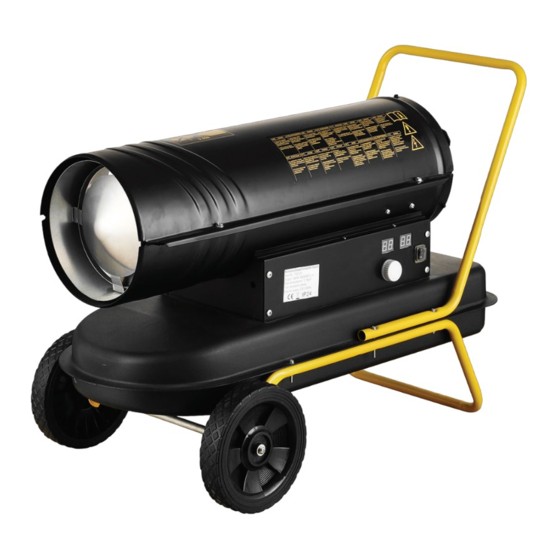

PARTS IDENTIFICATION FIG. 2 A Hot air outlet I Lower frame B Upper shell J Power switch C Front handle K Display window L Thermostat knob D Back grille E Pressure gauge M Side panel F Fuel tank N Wheel G Fuel cap O Lower shell H Fuel gauge... -
Page 7: Assembly And Operation
• Direct-fired heaters are intended for use in outdoor open areas or in indoor well ventilated areas. For indoor use, provide permanent ventilation openings of at least 25 cm²/kW, equally distributed between floor and high level, with a minimum of 250 cm². HE-53218 Minimum Opening Size 600cm2... -
Page 12: Wiring Diagram
WIRING DIAGRAM 12 20KW DIESEL HEATER... -
Page 13: Parts Breakdown
PARTS BREAKDOWN INSTRUCTION USER MANUAL & WARRANTY 13... -
Page 14: Troubleshooting
TROUBLESHOOTING ISSUE CAUSE Check power supply & voltage. No power or low voltage. Check fuse & replace if necessary. Motor does not start. Faulty or damaged power cord. Check & replace. E1 displayed on the screen. Faulty motor/capacitor. Check & replace if necessary. Lock-out mode due to previous Detect the cause of overheating. - Page 16 TROUBLESHOOTING REASON PROCESS Open the control panel. Using a multi-meter check motor circuit. Motor not working. Check motor condition. Take out the air line. Carefully Check the line surface. Replace if there are any cracks or damages. Air line leakage. Check air line.
- Page 17 TROUBLESHOOTING REASON PROCESS Block the air outlet and adjusting hole. The air pump is good if pressure gauge needle reaches 14PSI. Replace air pump if it failed. The factory setting pressure is 4-6PSI. Air pump leakage. Check air pump. If there is black smoke or flash fire check and clean the fuel nozzle.
-
Page 18: Disposal Guidelines
DISPOSAL GUIDELINES Do not dispose of this product with general household waste. This product must be disposed according to the laws governing Waste Electrical and Electronic Equipment. If required, contact your local authorities for information regarding the available disposal facilities. 18 20KW DIESEL HEATER... -
Page 19: Warranty
Tradeware offers a 3 Year Warranty. The additional warranties, terms and conditions are outlined on the website www.dynabreeze.com.au under the Support tab. Under Support you can also Register your product upon purchase and enjoy the peace of mind of knowing your product is registered should anything happen. - Page 20 Tradeware 45 Birralee Road, Regency Park South Australia 5010 info@tradeware.com.au 1300 658 494 www.tradeware.com.au Due to continual product development, please note the information and content Please provided may not be final and may be subject to changes. Recycle...
