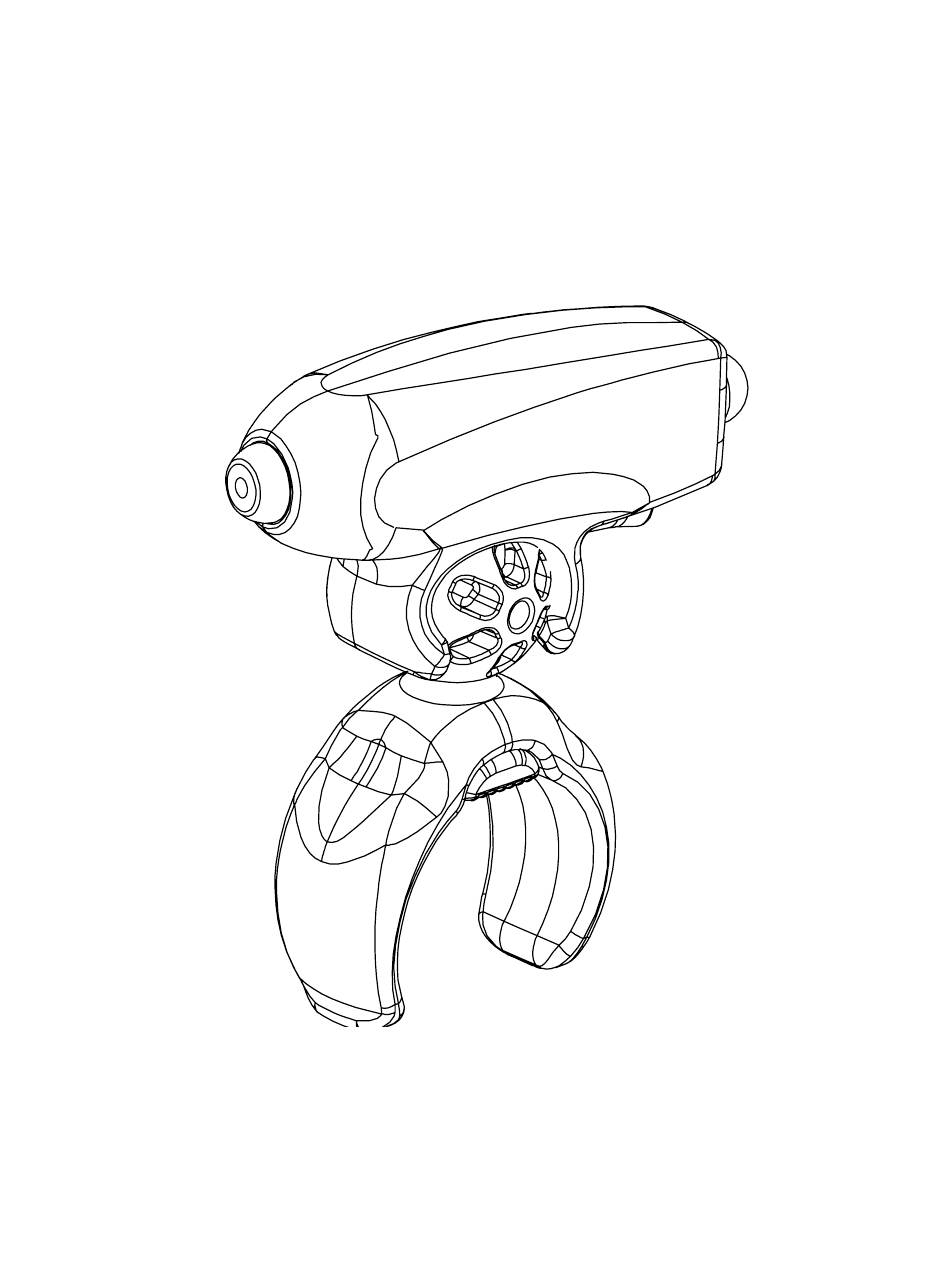

Qnique Laser Stylus
Assembly Instructions
Copyright October 11, 2018
Grace Company
(Reproduction Prohibited)
Version 3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Qnique Laser Stylus and is the answer not in the manual?

Questions and answers

Summary of Contents for Grace Qnique Laser Stylus

  • Page 1 Qnique Laser Stylus Assembly Instructions Copyright October 11, 2018 Grace Company (Reproduction Prohibited) Version 3.0...
  • Page 2: Table Of Contents

    Table of Contents Qnique Laser Stylus Table of Contents ........................ii Warranty ..........................iii Parts Lists Box 1 ............................iv Choose your Machine Choose your Machine ........................v 15” Machine Assembly Instructions Step 1: Laser Bracket Installation ....................1 Step 2: Laser Installation - Rear Handlebars ................2 Step 2: Laser Installation - Front Handlebars ................
  • Page 3: Warranty

    Warranty Information for your Qnique Laser Stylus. The Qnique Laser Stylus has a One-Year limited warranty on all parts. The Grace Company will repair or replace, at its discretion, any part with problems due to our manufacturing or defects in materials.
  • Page 4 Parts List Box 1 Qnique Laser Stylus Laser Bracket (1) Laser Assembly (1) M6 x 20mm 4mm Allen Velcro (2) Laser Tip (4) SBHCS (2) Wrench (1)
  • Page 5 Choose your Macnine Qnique Laser Stylus Qnique 19 Qnique 15 Turn to page 4 Turn to page 1 Qnique 21 Turn to page 7...
  • Page 6: Step 1: Laser Bracket Installation

    15” Machine Qnique Laser Stylus Step 1 - Laser Bracket Installation Parts Needed: M6 x 20mm Laser Bracket (1) SBHCS (2) Tools Needed: 4mm Allen Wrench Front Wheel Block Laser Bracket 1-1 Gently tip the sewing machine onto its side.
  • Page 7: Step 2: Laser Installation - Rear Handlebars

    15” Machine Qnique Laser Stylus Step 2a - Laser Installation - Rear Handlebars Parts Needed: Laser Assembly Laser Bracket Velcro (2) Laser Assembly (1) 2-1a Clip the Laser Assembly to Laser Bracket and adjust to preferred position. UNLESS OTHERWISE SPECIFIED:...
  • Page 8: Step 2: Laser Installation - Front Handlebars

    15” Machine Qnique Laser Stylus Step 2b - Laser Installation - Front Handlebars Parts Needed: Laser Assembly Laser Assembly (1) Velcro (2) 2-1b Clip the Laser Assembly onto the Front Handlebars and adjust to preferred position. Laser Cable Front Display Hub 2-2b Connect Cable to Front Display Hub.
  • Page 9: 19" Machine Assembly Instructions Step 1: Laser Bracket Installation

    19” Machine Qnique Laser Stylus Step 1 - Mounting the Laser Parts Needed: M6 x 20mm Laser Bracket (1) SBHCS (2) Tools Needed: 4mm Allen Wrench Front Wheel Block Laser Bracket 1-1 Gently tip the sewing machine onto its side.
  • Page 10: Step 2: Laser Installation - Rear Handlebars

    19” Machine Qnique Laser Stylus Step 2a - Laser Installation - Rear Handlebars Parts Needed: Laser Assembly Laser Bracket Laser Assembly (1) Velcro (2) 2-1a Clip Laser Assembly to Laser Bracket and adjust to preferred position. Back Display Laser Cable 2-2a Connect Cable to Back Display Hub.
  • Page 11: Step 2: Laser Installation - Front Handlebars

    19” Machine Qnique Laser Stylus Step 2b - Laser Installation - Front Handlebars Parts Needed: Laser Assembly (1) Velcro (2) Laser Assembly 2-1b Clip the Laser Assembly onto the Front Handlebars and adjust to preferred position. Laser Cable Front Display Hub 2-1b Connect Cable to Front Display Hub.
  • Page 12: 21" Machine Assembly Instructions Step 1: Laser Bracket Installation

    21” Machine Qnique Laser Stylus Step 1 - Mounting the Laser Parts Needed: M6 x 20mm Laser Bracket (1) SBHCS (2) Tools Needed: 4mm Allen Wrench Front Wheel Block Laser Bracket 1-1 Gently tip the sewing machine onto its side.
  • Page 13: Step 2: Laser Installation - Rear Handlebars

    21” Machine Qnique Laser Stylus Step 2a - Laser Installation - Rear Handlebars Parts Needed: Laser Assembly Laser Bracket Laser Assembly (1) Velcro (2) 2-1a Clip Laser Assembly to Laser Bracket and adjust to preferred position. Back Display Laser Cable 2-2a Connect Cable to Back Display Hub.
  • Page 14: Step 2: Laser Installation - Front Handlebars

    21” Machine Qnique Laser Stylus Step 2b - Laser Installation - Front Handlebars Parts Needed: Laser Assembly (1) Velcro (2) Laser Assembly 2-1b Clip the Laser Assembly onto the Front Handlebars and adjust to preferred position. Front Display Hub Laser Cable 2-2b Connect Cable to Front Display Hub.
  • Page 16 The Grace Company 2225 South 3200 West Salt Lake City, UT 84119...
