Summary of Contents for Anda 497484

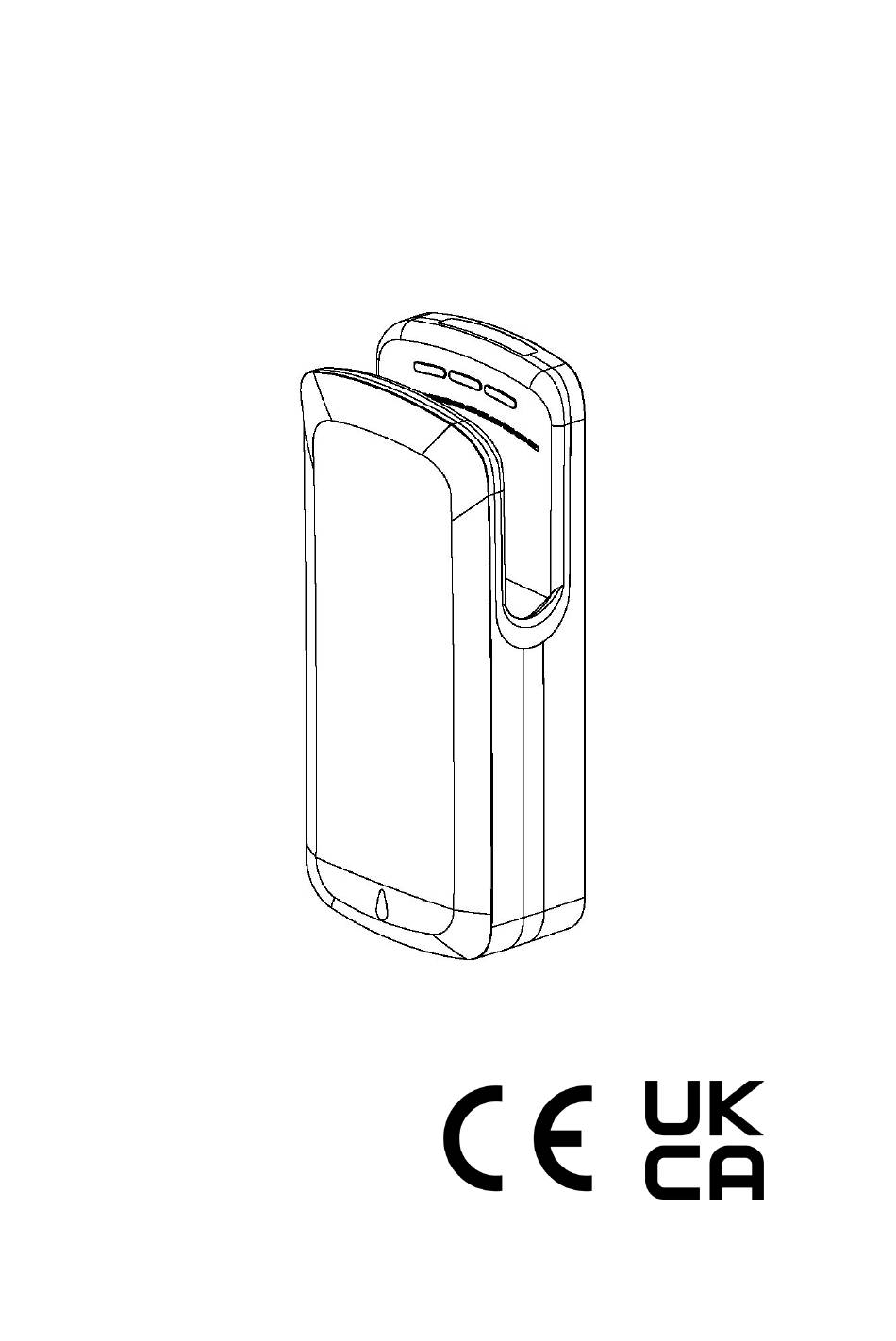

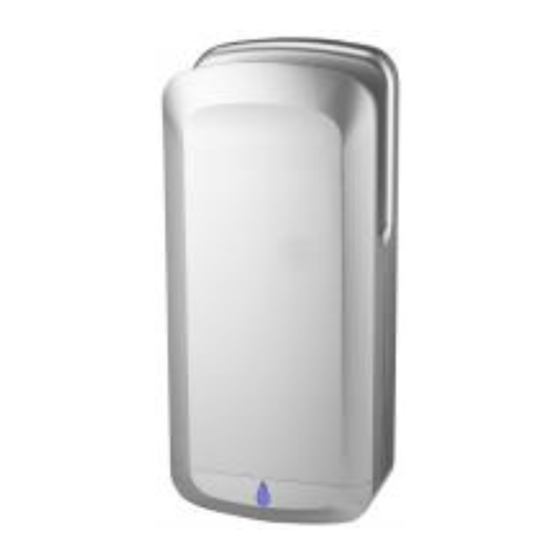

- Page 1 Jet Hand Dryer Installation & User Manual Ref:497484 Please read instructions in conjunction with the illustrations. Please save these instructions.
-
Page 2: Safety Warnings
SAFETY WARNINGS Before installing, be sure to read this installation manual and retain for future reference. This product must be installed by qualified personnel in accordance with the instructions given in this manual and installation must comply with all applicable regulations, national security standards and laws in force in the country where the product is installed. -
Page 3: Packing List
PACKING LIST ITEM KEY ITEM DESCRIPTION ITEM QTY NOTES High Impact ABS plastic Hand Dryer Unit Complete Owner Manual(OM - this booklet) Mounting Template(MT) Φ6x28MM [ 15/64" Dia.x 1-7/64"], for#5 Wall Anchors, Expansion Self-threading Phillips PH Screws M4x20MM [ No.8 AB x 25/32"] Installation Bracket Fixed on wall SPECIFICATION... -
Page 4: Before Installation
BEFORE INSTALLATION Installation must be carried out in accordance with the current edition of the local wiring regulations code having jurisdiction. Installation should be performed only by a qualified electrician. Please check if hand dryer is supplied with convenient plug in feature. If hand dryer is to be installed with hardwired L Min. - Page 5 A. Open hand dryer back Terminal Block cover. B. Connect live wire(Coloured Brown, Red, or Black) to the terminal block marked “L”. C. Connect neutral wire(Coloured Black, Blue) to the terminal block marked “N”. D. Replace Terminal Block cover. E. Hang hand dryer on Wall Bracket [ G ]. Slid it lightly from up to down then it is locked. 7.
- Page 6 POWER ON/OFF OPTION Coarse Pariculate Filter Air Inlet Window AIRFLOW SPEED HIGH/LOW OPTION HOT AIR ON/OFF OPTION REPLACE SWITCH COVER PLUG IN/TURN ON CIRCUIT BREAKER...
-
Page 7: Basic Use
BASIC USE Operation without touching, Externally visible service After 3 seconds without place your hands at drying blue LED light guides detecting hands, the device cavity to activate the device. hands to air flow. stops automatically. DIAGNOSTICS & REMEDIES Hand dryer fails to Ensure the breaker supplying the dryer is operational. - Page 8 HEPA CLEAN & REPLACEMENT The service life of a HEPA filter depends on the environment in which the dryer is installed and frequency of use. High traffic washrooms or high usage will require more frequent inspection and replacement of the HEPA filter. The HEPA filter should be inspected at least four times per year in washrooms with light to moderate traffic and normal environments.
- Page 9 EMPTY WATER TRAY Regular empty water tray is required. The smart water level indicator is flashing when water is full. It is available to push the water tray bottom piston to release water or move whole water tray unit to empty it.
- Page 10 Replace Display Circuit Board 1. Move the sticker away. Do not damage the hand dryer edge as it will affect the surface appearance. 2. Move two screws on timer circuit board holder. Use a screwdriver to pull the holder a little to open it. 3.
- Page 11 Replace Main Circuit Board, Sensor Receiver Board, Motor, Heat Element Main Circuit Board: Move marked circuit board house cover and replace a new circuit board. Sensor Receiver circuit board: .Move marked circuit board screw and replace a new one. Replace Heat Element: 1.
- Page 12 This product should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority for recycling advice PO BOX 1285, CRAWLEY, RH10 0LY EU Authorised Representative: Anda Products Bedrijvenweg 17 7442 CX Nijverdal Nederland authorisedrep@andaproducts.nl 497487A 0721...
