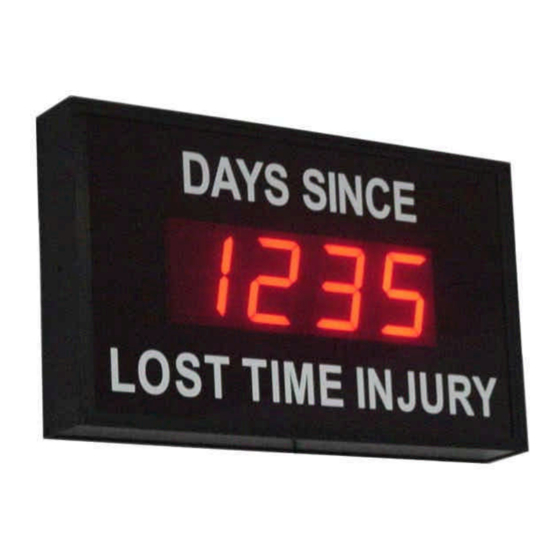

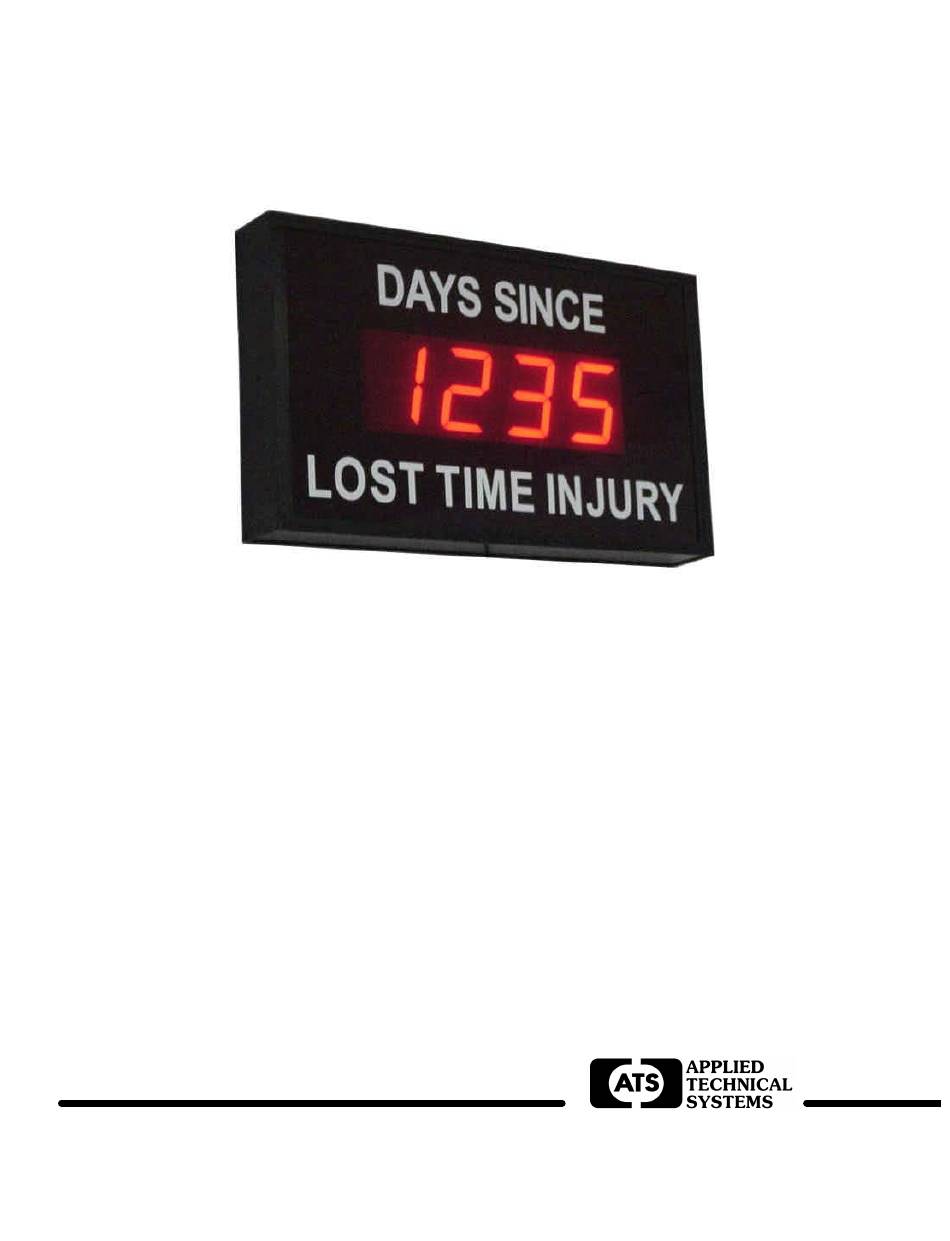

- Page 1 FN:539MAN1.DOC AEXX-539 SERIES STAND-ALONE DAY COUNTER DISPLAY...
- Page 2 1", 2.3", 4", 8", or 12" high digits, visible from 5 feet to 500 feet away. This manual covers all AEXX-539 Series Displays including Bezel Mount and custom configured versions. Some will have different enclosures including wall mount, rack mount, two sided wall or ceiling mount, and NEMA type enclosures for all applications.
- Page 3 Optional terminal blocks, power cords, and connectors are available. Options: There are numerous options available for the AEXX-539 Series Day Counter Displays Some include: (/2) Two Sided Version, (348) Master/Driver Output, (376) Relay Output, and (PC8) Add 8 FT. Power Cord.
- Page 4 AEXX-539 SERIES STAND-ALONE DAY COUNTER DISPLAY REV 10/10/13 INSTALLATION MOUNTING The AE Series Displays can be mounted in a variety of ways. Things to consider for mounting include ambient light, viewing area, ambient temperature, dirt or dust. Hard-wired models are supplied with one or more 1210-0101 mounting brackets for wall mounting to a single or double gang box.
- Page 5 AEXX-539 SERIES STAND-ALONE DAY COUNTER DISPLAY REV 10/10/13 OPERATION Before applying power, be sure all wiring is completed. Apply power to the unit. The displays will rotate during the power on self-test and then a version number will appear for a few seconds.
- Page 6 AEXX-539 SERIES STAND-ALONE DAY COUNTER DISPLAY REV 10/10/13 TECHNICAL SUPPORT For any questions concerning installation and operation of this product, contact our factory at: PHONE (800) 444-7161 FAX (318) 797-4864 SERVICE POLICY It is recommended that all service for this product be done by the factory or by a factory authorized service representative.
