Summary of Contents for Light Efficient Design LumiCleanse LC-UVC-AIR-350

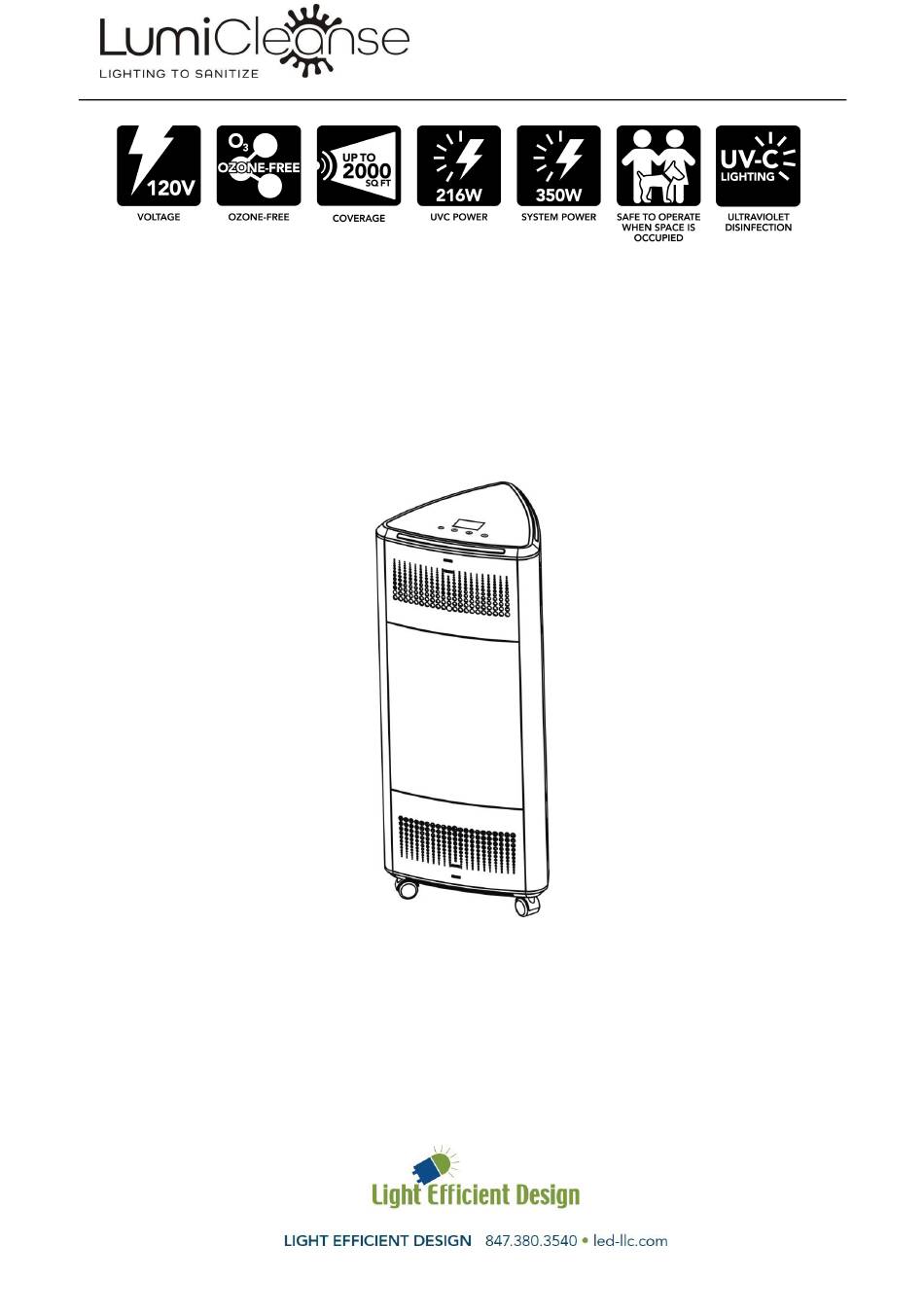

- Page 1 USER MANUAL LC-UVC-AIR-350 USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS...
-
Page 2: Table Of Contents
USER MANUAL Thank you for purchasing a LUMICLEANSE product. You have acquired a powerful and versatile product. We are confident that you will be satisfied with our excellent product and service. For your own safety, please read this user manual carefully before operating the product. - Page 3 USER MANUAL Voltage Input: AC120V~, 60Hz; Power: 350W; Product Size: 457x429x1075mm This product is for commercial use, such as in conference rooms, offices, hotels, schools, theaters, waiting rooms, restaurants, etc. IMPORTANT! When using electrical equipment, basic safety precautions should always be followed. READ AND FOLLOW ALL SAFETY INSTRUCTIONS carefully before using this product, save it for future reference.
-
Page 4: Product Overview
USER MANUAL 1. Product Overview 2. Control Panel Overview Display Panel: Fan Speed Time Mode - - WIFI indicator PM2.5 Indicator - - Status and Alert Key Lock - - Lamp Replacement Indicator Filter Replacement Indicator... - Page 5 USER MANUAL Control Buttons: Touch to Select the function in main menu Touch to go Up to select different setting Touch to go Down to select different setting Touch to Start or Stop operation, or Enter the selected setting 4 Time Modes: ON (continuous); 60 min; 90 min; 120 min 10 Fan Speeds: from 1(low) to 10(high) WIFI connected;...
-
Page 6: Using The Product
USER MANUAL Indicator Lights & Audio Alarm: Status Audio Alarm Indicator Lights Green Light Standby solid Blue Light Operating solid Triple(3) Ping Green Light End of Cycle every 10 seconds flash for 30 seconds Quadruple(4) Ping Green Light Fall Protection every 10 seconds flash continuously Quintuple(5) Ping... - Page 7 USER MANUAL This product is designed with UV lamps inside, the UVC can do high efficient disinfection to the air which going through this product during the air purification process. The suggestion on disinfection area and time for reference: Area Time Mode for Disinfection 500SF 60min...
- Page 8 USER MANUAL WIFI APP Operation • Connect your mobile phone to the LAN network. • Make sure the LAN network you connected is 2.4G WIFI, not 5G WIFI. • One LAN network is only for one user to bind device, not for multi-user. Download "GOLDENSEA UV"...
- Page 9 USER MANUAL 5. Choose “Main Building” 4. Select the device from 6. You can find the the list of “Local Devices and click “Bind”. (you can device(s) in the “Main also choose “Main Room” Building” and “Rooms” Discovered”. as an option)
-
Page 10: Moving The Unit
USER MANUAL 7. Now you can control the device from the APP. 4. Moving The Unit This product has been integrated with 3 universal wheels for fast and easy relocation. Before moving the product, make sure the power cable is disconnected from power socket. Simply push the brake lever down to engage the brake;... -
Page 11: Fall Protection
USER MANUAL 5. Fall Protection When a working product detects a movement of more than 45° , it will automatically shut off for safety. There will be audio alarm and flashing green indicator light to alert the operator. To re-start the unit after fall protection, put the product back to the normal upright position, make sure the power plug is still well-connected to power socket, re-start the operation again from the beginning. -
Page 12: Dimensional Drawings
USER MANUAL 7. Dimensional Drawings 8. Replacing and Cleaning The Filters • Always turn off the product and unplug from the socket before replacing the filters. • The HEPA and Active Carbon Filters are not washable or reusable. • Before carrying out any replacement and cleaning, wait about 15 minutes after switching off the product (to let the UV tubes cool down to avoid scalding). - Page 13 USER MANUAL Steps: 1. Push in on the right side of the front 2. Remove the air inlet cover by simply door and release to open. pulling it out. * The other two doors can be opened by pushing out from inside. 3.
- Page 14 USER MANUAL 5. Remove the air outlet cover by 6. Remove the current Active Carbon simply pulling it out. Filter by simply pulling it out. Now install a new Active Carbon Filter, re-install the air outlet cover, push in the door to close. The product is now ready for use again.
-
Page 15: Replacing The Uv Lamps
USER MANUAL 9. Replacing The UV Lamps To maintain the sterilizing efficacy, the UV tubes need to be replaced after 9,000 hours of use. When the lamps need to be replaced, the icon of “Lamp Replacement Indicator” turn from white to red and stay flashing. If the lamps are not replaced in time, the product will stop operating and automatically lock to protect the disinfection effect in the room. - Page 16 USER MANUAL 3. Loosen the 2 screws of the UV tube 4. Turn the two clips downwards on holder cover and remove the metal both sides of the UV tube holder. cover. * Be careful when removing the metal cover to avoid damage to UV tubes. 5.
-
Page 17: Troubleshooting Tips
USER MANUAL 5. Re-install the UV tube holder cover 6. Re-install the UV shield cover and and tighten the 2 screws. tighten the 2 screws. Push in on the right side of the door to close. The product is now ready for use again. * After lamps replacement, remember to reset the lamps hours in the display menu: select the icon and pressing... -
Page 18: Features
USER MANUAL 10.3 Why airflow coming out from the air outlet is significantly weaker than before? 1. Check if the pre-filter is dirty, if so, clean the pre-filter. 10.4 Why the display still show the alert icon of replacing filter/lamp even after it is just replaced? 1. -
Page 19: Recycling
Follow local rules for the separate collection of electrical and electronic products. 14. Service For all service needs, please contact your local authorized dealer or Light Efficient Design customer service. Our contact details are: Light Efficient Design 188 S. Northwest Highway.Cary,IL 60013 TEL.(847)380-3540.FAX:(978)913-3317 E-mail:sales@led-llc.com For more energy efficient products, visit us online: www.
