Safety – Operation – Maintenance
Keep this document in a safe place
Read and understand this manual before operating your vacuum

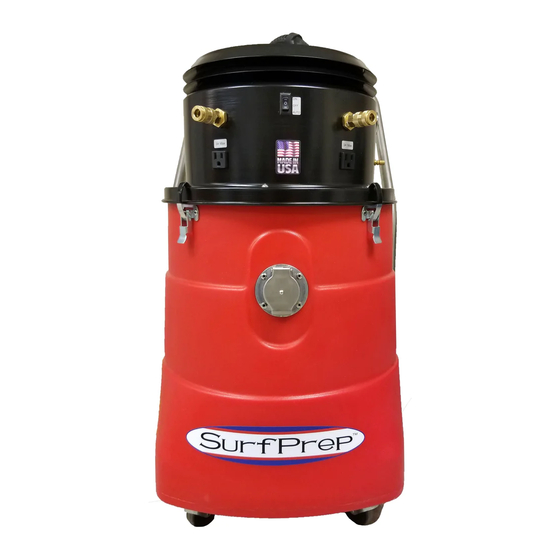

SurfPrep Vacuum System
120V with Electric/Pneumatic Tool Sync
Model: SPPV15-A/E
• Designed for general cleanup, housekeeping, vacuum sanding
• Dry Recovery Only
WARNING
SAFETY LEGEND
Read and understand operator's man-
ual before using this equipment.
Hearing protection is recommended
when operating this equipment.
• A HEPA Filter must be installed in this vacuum at all times
• If this vacuum is used to collect hazardous material, personal protective equipment should be used when opening the vacuum or
emptying its contents
• If this vacuum is intended for Dust Ignition Proof Operation, it must be used with supplied or recommended accessories from
SurfPrep Associates
• Any alteration to this equipment by a third party will nullify its warranty
WARNING
WARNING
WARNING
Eye protection is required when oper-
ating this equipment.
WARNING
Respiratory protection is recommend-
ed when operating this equipment.
September 2019
Advertisement
Table of Contents
Related Manuals for SurfPrep SPPV15-A/E
Summary of Contents for SurfPrep SPPV15-A/E
- Page 1 Safety – Operation – Maintenance Keep this document in a safe place Read and understand this manual before operating your vacuum SurfPrep Vacuum System 120V with Electric/Pneumatic Tool Sync Model: SPPV15-A/E • Designed for general cleanup, housekeeping, vacuum sanding • Dry Recovery Only...
-
Page 2: Important Safety Instructions
Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adapter should be used with this appliance • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com... -
Page 3: Table Of Contents
Do not use this equipment for cleaning or extracting fuel residues from any vehicle or equipment Do not use this equipment for cleaning or extracting live sparks or burning embers • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com... -
Page 4: What's Included
WHAT’S INCLUDED SurfPrep Power Heads ship with the following items: • SurfPrep Power Head • HEPA 12 Month Timer Card SurfPrep Vacuum Tanks ship separately and include Bags, Filters, and other components. These instructions assume you have both a Power Head and one of the following SurfPrep Vacuum Tanks SPECIFICATIONS &... -
Page 5: Compressed Air Fittings
• Remove the compressed air coupler with a 3/4in (19mm) open end wrench • Install a new compressed air coupler • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com... -
Page 6: Pneumatic Tool Sync
• Pneumatic Tool Sync will work with one or two tools simultaneously • Pneumatic Tool Sync will work in conjunction with Electric Tool Sync • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com... -
Page 7: Electric Tool Sync
• Each time a tool draws power the vacuum head may activate. Some electronic tools may draw power when initially connected, to light LEDs, when powered up, AND when activated. This may trigger the vacuum multiple times and is expected. • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com... -
Page 8: Before Each Use
This vacuum is equipped with Manual Mode (ON Mode) which activates the vacuum when the switch is set to ON • Toggle the Power Switch to the ON Position • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com... -
Page 9: Bag Filter Change
• Rotate the Power Head so that the switch on the Power Head is in line with the inlet port on the vacuum tank • Latch the Power Head to the tank • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com... -
Page 10: Pre-Filter Change
• Attach the new HEPA timer card with a zip tie (included) to the top handle of the vacuum • Follow the directions on Timer Card to activate • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com... -
Page 11: Illustrated Parts Breakdown
NUT 1/4-20 HEX LOCK SS SP-6SE162005-PPSM-Z SCREW, 1/4-20 X 5/16 PH, SS SP-6SE162064-HHSM-Z SCREW 1/4-20 X 4IN SS HEX • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com Page 11... - Page 12 WASHER .203ID X .500OD .047H ROUND STAINLESS STEEL SP-6WE481803-RZSZ SHIM .750 ID X 1.125 OD X .048 ROUND STAINLESS • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com Page 12...
- Page 13 SP-6911-803-6 ENCLOSURE FOAM 1 SOUND CONTROL SP-6911-803-7 ENCLOSURE FOAM 2 SOUND CONTROL SP-6911-803-8 ENCLOSURE FOAM 3 SOUND CONTROL • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com Page 13...
- Page 14 SP-6927-08L-04F FTG ELBOW 1/2PC TO 1/4FNPT SP-6927-08MA-04 1/2 PC X 1/4 MPT STRAIGHT FTG SP-6927-08Y UNION Y, 1/2PC • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com Page 14...
-
Page 15: 20 Year Limited Warranty Terms And Conditions
O-rings, seals, gaskets, motor brushes, and other wearable parts. Repair within the Continental US During the first 90 days of the warranty period, SurfPrep will provide parts and labor to the customer’s site at no charge or pay freight costs associated with returning the products for repair to a SurfPrep selected service location and repair the product at no charge. - Page 16 SurfPrep products are proudly made in the USA • • • Repair or Warranty Contact SurfPrep 571 Birch Street Lake Elsinore, CA 92530 P.+1-951-245-4200 F.+1-951-245-4299 • www.SurfPrepSanding.com info@SurfPrepSanding.com Page 16...
