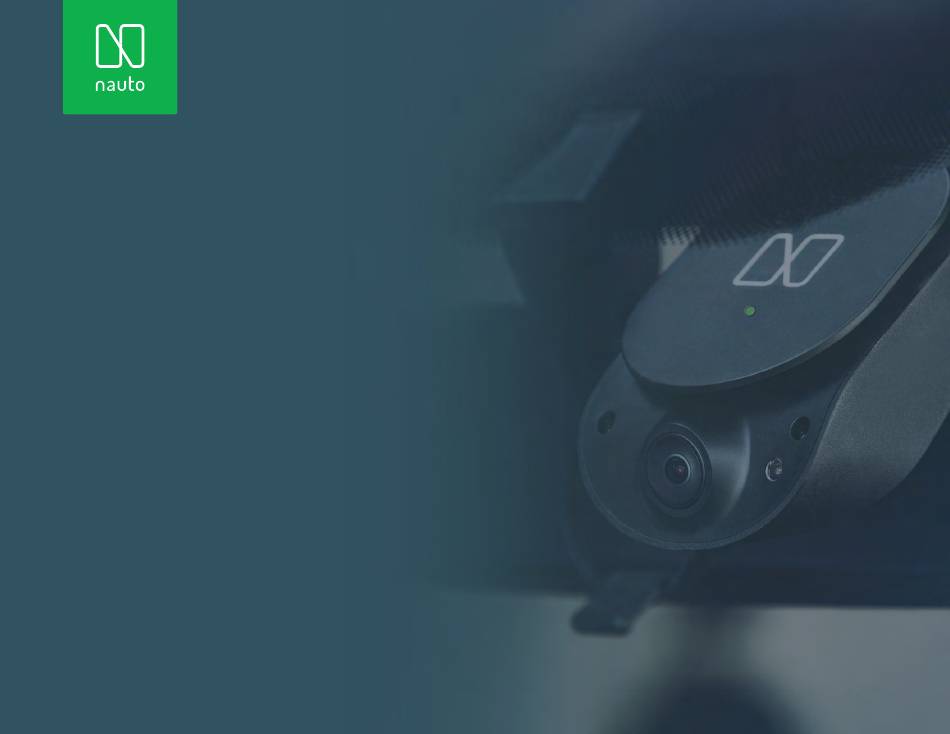

- Page 1 Installation Guide Nauto® 3 Device US Installation Guide June 2021...
- Page 2 Table of Contents Overview Installation Tool List and Components Installation OBD Connection/Power Cable Connection Device Registration Device Installation Vehicle Information Additional Resources © Nauto 2020. All RightsReserved.
- Page 3 Nauto 3 Device for your specific vehicle. Improper wiring may cause injury or damage and void the warranty. Any changes or modification to the Nauto 3 Device not expressly approved by Nauto or the entity responsible for This equipment should not be operated in aircraft or in close proximity to medical equipment.
- Page 4 Installation Tool List The following tools are recommended to perform installation of the Nauto 3 Device: Digital multimeter with sharp leads Trim panel removal tool (or wire piercing leads) T5 Torx driver with handle Crimp Connectors Electrical tape Zip/Nylon ties...
- Page 5 Probe the wires you suspect of being the constant and ignition power sources. result from the use of a test light causing a short circuit. Note: The Nauto 3 Device can support vehicles with a 24-volt power source Constant +12V or 24V Power Connection (Nauto 3 Device Red Wire) Find a source of constant +12V or 24V under the dashboard of the driver side of the car.
- Page 6 4. If there was an existing device in the vehicle’s OBD port, reconnect it utilizing the Nauto Y-cable. 5. Plug the male end of the Nauto Y-cable into the vehicle’s OBD port. Ensure ignition is off when connecting. 6. Zip tie all connections to help ensure plugs will not disconnect.
- Page 7 Installation | Device Registration Download the Nauto Installer App from the App Store or Google Play store. 3. Scan QRCode. 4. Review and confirm fleet name. 2. Select “NewInstallation”. 1. Login The QR code is located on the Note: if this unit was removed from Your username and password will device.
- Page 8 See next page the power connections made if for more details. hardwired. If connected via OBD, take photo of OBD connection. Once taken the app will ask you to confirm the photo. © Nauto 2020. All RightsReserved.
- Page 9 1. Connect the Nauto 3 Device to power. Insert the power cable end that extends from under the headliner into the device’s power port. The Nauto 3 Device will now boot up. 2. Check for green lights on the device.
- Page 10 Check the live images on the app. If your view is properly aligned, gently press the whole assembly to the windshield. - Ensure that the top of the Nauto 3 Device is not touching the headliner - If necessary for optimal placement, only allow a portion of the...
- Page 11 Press and hold the complete mount to the windshield for at least 15 seconds. 15 seconds is the minimum time for the adhesive to adhere properly. Failure to properly secure the Nauto 3 Device may cause it to detach from the windshield, which may lead to catastrophic damage or injury.
- Page 12 Once taken the app will ask you to Once taken the app will ask you to for this information. confirm the photo. confirm the photo. © Nauto 2019. All RightsReserved.
- Page 13 Red: Possible Hardware issue (contact support) Dim Red: Commonly confused as LEDS. These are infrared sensor for night mode. Installation Video https://www.nauto.com/install For any questions orsupport 888.628.8690 support@nauto.com Nauto Support is available Mon - Fri 6AM - 6PM PST. © Nauto 2020. All RightsReserved.
