- Page 1 Comfy Go Mobility Folding Electric Scooter MS|9000 Operating Manual Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com, Tel:+1 844 755 5055...
-
Page 2: Table Of Contents
Comfy Go Mobility Contents Introduction..........................1 Specifications........................2 Major Parts...........................3 Contents in Scooter Carton....................4 Specification Diagram......................5 Main Operational Parts Function..................6-8 Folding and unfolding......................9 Battery and Charging....................10-12 Battery Safety and Life Guide....................13 Instruction of Operation......................14 Trouble shooting and maintenance................15-16 Warranty..........................17 Warranty Card........................18 Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com, Tel:+1 844 755 5055... -
Page 3: Introduction
Comfy Go Mobility Introduction Dear User, Thank you for choosing the MS|9000 Electric Scooter for your transportation needs. It is important to read through this manual before operating your MS|9000 Electric Scooter to become familiar with its features as well as its limitations and safety information. You will find the operation and care of your MS|9000 Electric Scooter simple and easy. -
Page 4: Specifications
Comfy Go Mobility Specifications Model MS|9000 Material Aluminum alloy unFolding size L 940 W 470 H 920 mm Folding size L 720 W 470 H 365 mm Packing size L 550 W 440 H 820 mm Color Red , Orange , Blue Motor 24 V 180 W Battery charger... -
Page 5: Major Parts
Comfy Go Mobility Major Parts 1 Directional Control Lever 9 Transaxel 16 Side Seat Support Frame 2 Steering Post 10 Rear Wheel Cover 17 Rear frame 3 Tiller Angle Fixing Knob 11 Rear wheel 18 Middle Sliding Frame Cover 4 Front Wheel Cover 12 Batter Holder 19 Seat Cushion 5 Front wheel... -
Page 6: Contents In Scooter Carton
Comfy Go Mobility Contents in Scooter Carton Upon receipt of the scooter, please open carton packing and check if ther followings are included: Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com, Tel:+1 844 755 5055... -
Page 7: Specification Diagram
Comfy Go Mobility Specification Diagram Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com, Tel:+1 844 755 5055... - Page 8 Comfy Go Mobility Main Operational Parts Function Handle Bar Set The handle bar set including Control Panel ,Key Switch, Speed Setting Knob and Delta Handle, Directional Control Lever. The major operational functions are set. Control Panel Notice: Humidity of ambient environ ment significantly affect on the opera tional function main parts.
- Page 9 Comfy Go Mobility Dispay Battery Power is shown on display while power is turned on. Direction Control Lever Forward and backward control is under Control Lever. a. Gently hold handle with both hands. b. Scooter go forward by pulling lever on the right with fingers.
-
Page 10: Main Operational Parts Function
Comfy Go Mobility Controller Located under rear cover which transfer the signal from control panel to motor, brake and hub. Notice: Keep controller under low moisture environment and make sure it is in dry condition before operation. Electric / Manual Mode Switch Lever MAIN OPERATIONAL PARTS FUNCTION Hand Brake on and off can be done by switching the lever for manual or electric control. -
Page 11: Folding And Unfolding

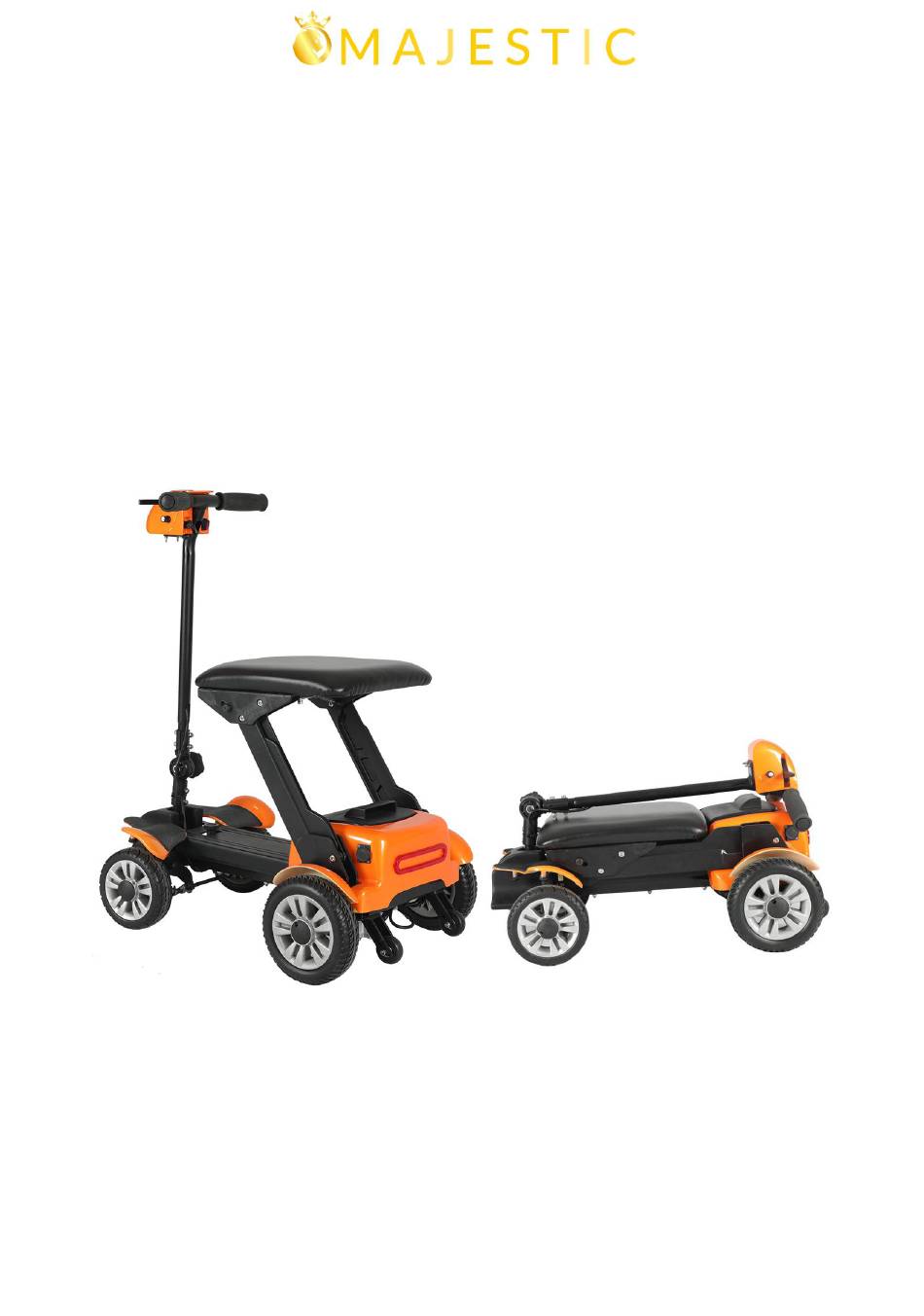

Comfy Go Mobility Folding and unfolding 1. Folding and unfolding of the scooter is only applied through manual operationa. 2. First lift up and rotate the nob in the middle of frame for sliding in the frame to minimum length through pushing the front post towards center with one hand, the other hand pushing from back of scooter to center at the same time. -
Page 12: Battery And Charging
Comfy Go Mobility Battery and Charging The scooter is designed for maintenance free with long usage of Lithium Ion Battery. It is suitable to be Charged with 24 V 10 Ah charger. 1. Fully charge the battery 5 hours is good for battery usage. At least charge once in every 3 month. 2. - Page 13 Comfy Go Mobility 5. Full charge time is around 5 hours duration. The battery can be charged directly with house poer source, simple connect the termial of battery with power source, charging can be started. 1. Flip open the charger port protectoron the front of battery. 2.
- Page 14 Comfy Go Mobility Normally red light will be off in a few seconds if disconnected to power source, it is normal for red light to snuff out whille battery voltage is up to level. Other type of charger The charger is designed for battery of the scooter. Strongly suggest do not use other type of charger from original manufacturer.
-
Page 15: Battery Safety And Life Guide
Comfy Go Mobility Battery Safety and Life Guide The reason of weak on new battery The scooter use deep-cycle battery under special chemical technology that allow battery quick to be charged with longer time use after full charge. Battery along with scooter packing is charged full, however, the performance of initial power will be reduced in the process of transportation, such as temperature variation. -
Page 16: Instruction Of Operation
Comfy Go Mobility Instruction of Operation Before operating instruction A. Make sure battery is fully charged. B. Familiar with the route condition including crowd, animal and potential obstacles. C. Always keep away from uneven and sloppy terrain. D. Check if is fully inserted and the brake lever switch is pushed. E. -
Page 17: Trouble Shooting And Maintenance
Comfy Go Mobility Trouble shooting and maintenance The controller contains programs for identifying problem points and troubleshooting. When the diagnostics detects problems and errors. The LED lights shine continuously in the form of a flash until the fault is eliminated. Example: The number of flashes is “1-9” . Users can try to solve the problem as follows. - Page 18 Comfy Go Mobility Insufficient capacity of battery or dropped on performance The decline issue of battery capacity or performance mostly can be sorted out as follows: A.Inspect whether key is fully inserted and at ON position. B.Make sure battery is fully charged. C.Increase the charging cycle and time while battery capacity is dropped.
-
Page 19: Warranty
Comfy Go Mobility Warranty The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes: ※ Scooter frame: 3 years ※ Motors: 1 year ※ Controller and CPU system: 1 year ※... -
Page 20: Warranty Card
Comfy Go Mobility Warranty Card User Name ID No. Address Phone No. Model MS|9000 Product No. Purchasing Date (month) (day) (year) Manufacturer Distributor (stamp or signature) Distributor (Phone,Address) Web:www.ComfyGoMobility.com, Email: info@comfygomobility.com, Tel:+1 844 755 5055...
