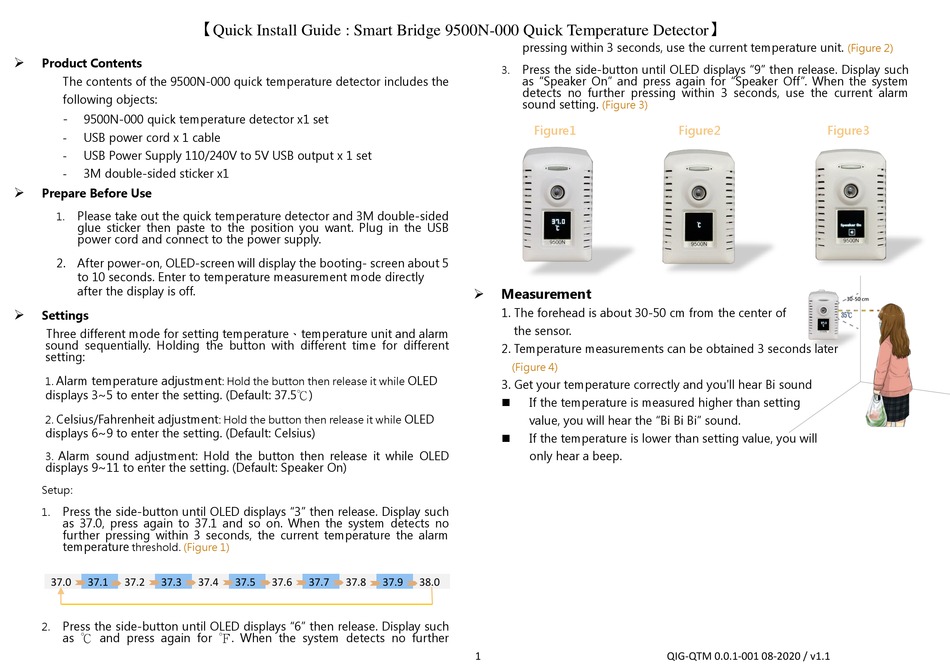

【Quick Install Guide : Smart Bridge 9500N-000 Quick Temperature Detector】
Product Contents

The contents of the 9500N-000 quick temperature detector includes the
following objects:
9500N-000 quick temperature detector x1 set
-
USB power cord x 1 cable
-
USB Power Supply 110/240V to 5V USB output x 1 set
-
3M double-sided sticker x1
-
 Prepare Before Use
Please take out the quick temperature detector and 3M double-sided
1.
glue sticker then paste to the position you want. Plug in the USB
power cord and connect to the power supply.
2. After power-on, OLED-screen will display the booting- screen about 5
to 10 seconds. Enter to temperature measurement mode directly
after the display is off.
Settings

Three different mode for setting temperature、temperature unit and alarm
sound sequentially. Holding the button with different time for different
setting:
Alarm temperature adjustment
1.
displays 3~5 to enter the setting. (Default: 37.5℃)
Celsius/Fahrenheit adjustment
2.
displays 6~9 to enter the setting. (Default: Celsius)
Alarm sound adjustment: Hold the button then release it while OLED
3.
displays 9~11 to enter the setting. (Default: Speaker On)
Setup:
Press the side-button until OLED displays "3" then release. Display such
1.
as 37.0, press again to 37.1 and so on. When the system detects no
further pressing within 3 seconds, the current temperature the alarm
temperature
threshold. (Figure 1)
37.0 37.1 37.2 37.3 37.4
Press the side-button until OLED displays "6" then release. Display such
2.
as ℃ and press again for ℉. When the system detects no further
: Hold the button then release it while
: Hold the button then release it while
37.5 37.6 37.7 37.8 37.9
pressing within 3 seconds, use the current temperature unit.
Press the side-button until OLED displays "9" then release. Display such
3.
as "Speaker On" and press again for "Speaker Off". When the system
detects no further pressing within 3 seconds, use the current alarm
sound setting.
Figure1
Measurement

1. The forehead is about 30-50 cm from the center of
the sensor.
2. Temperature measurements can be obtained 3 seconds later
(Figure 4)
OLED
3. Get your temperature correctly and you'll hear Bi sound
If the temperature is measured higher than setting

OLED
value, you will hear the "Bi Bi Bi" sound.
If the temperature is lower than setting value, you will

only hear a beep.
38.0
1
(Figure 3)
Figure2
QIG-QTM 0.0.1-001 08-2020 / v1.1
