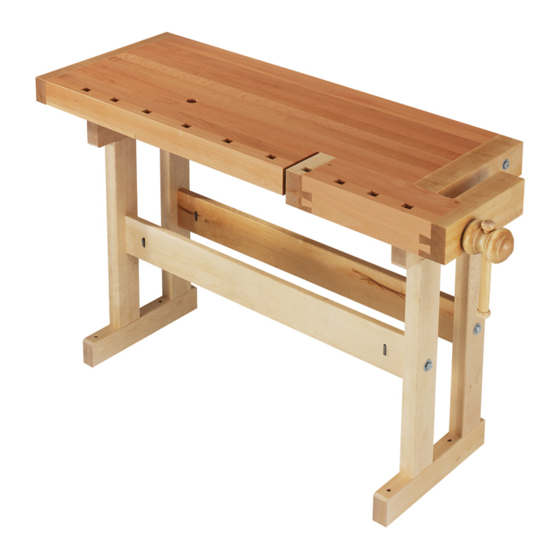

Sjobergs ORIGINAL 1100 Assembly Instructions

Sjobergs ORIGINAL 1100 Assembly Instructions

Wood trestle

Advertisement

Quick Links

Utfärdare:
Art.nr:
701229
PIBL

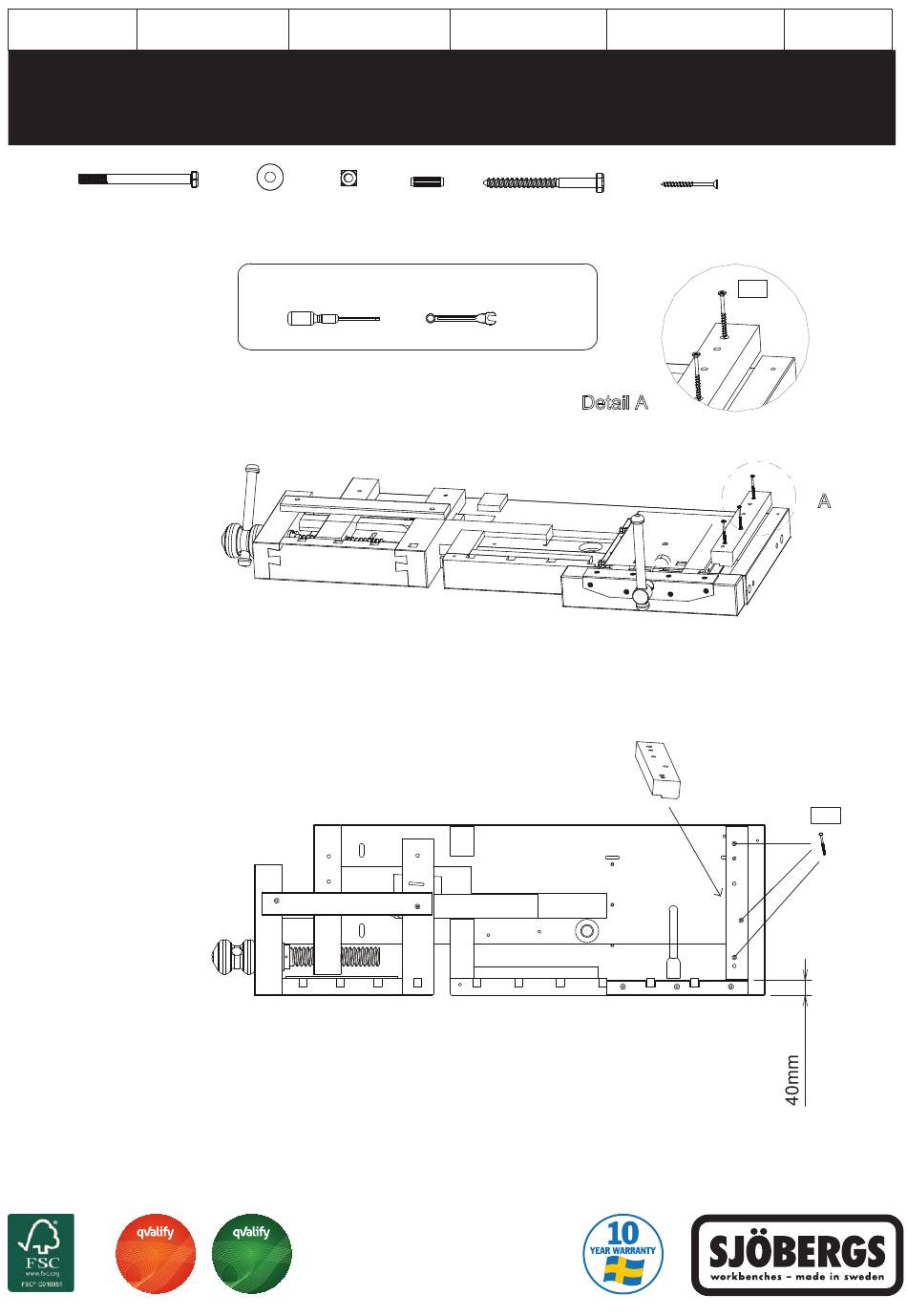

Monteringsanvisning / Assembly Instructions / Aufbauanleitung
Monteringsanvisning - Aufbauanleitung - Assembly Instructions
SJÖBERGS ORIGINAL 1100, TRÄSTATIV • WOOD TRESTLE • HOLZ-UNTER
Trä Underrede / Holz-Untergestell / Trestle
M10x120 (x4)
Om Art. 33160 Lös Framtång
ska monteras på bänken ska
det ske innan monteringslisten
skruvas fast i bänkskivan.
Soll an der Arbeitsplatte auch
die Vorderzange 33160
montiert werden, muss dies
vor dem Anschrauben der
Montageleisten geschehen.
If Art. 33160 VISE should be
assambled on the bench, it
should be done before the strip
is screwed into the bench top.
Montering av list till skiva 33110.
Montera listen enligt måtten på bilden.
Montage der Leiste der
Arbeitsplatte 33110.
Legen Sie die Leisten
konform mit den
abgebildeten Abständen
an die Kante der Platte.
Die Abmessung der
Leiste passt genau auf
die Arbeitsplatte 33110
und die vordere
Bankhakenreihe bleibt
unberührt.
ISO
9001
Datum:
2020-03-31
11x28 (x7)
M10 (x4)
Verktyg som behös för montering. Ingår ej.
Tools needed for assembling. Not included.
Werkzeuge für die Montage sind nicht Teil des Lieferumfanges.
Torx 20
Assemble the strip to the bench top 33110.
Assemble the strip according to the picture.
SJÖBERGS WORKBENCHES AB
ISO
SE- 576 95 Stockaryd • Sweden
14001
Tel +46 (0)382-257 00
office@sjobergs.se • sjobergs.se
Dokumentnamn:
MB. 76
10x120 (x3)
8x35 (x8)
17 mm
Utgåva:
08
GESTELL
5x60 (x3)
5x60
Sida:
1-2
5x60
