Force V2 48-Channel Video Transmitter
The Force V2 is a 48-channel 5.8GHz video transmitter (VTX) for use with FPV drones. The V2 is
supplied as standard with later versions of the Tyrant-S racing drone used in the Airgineers
competition.

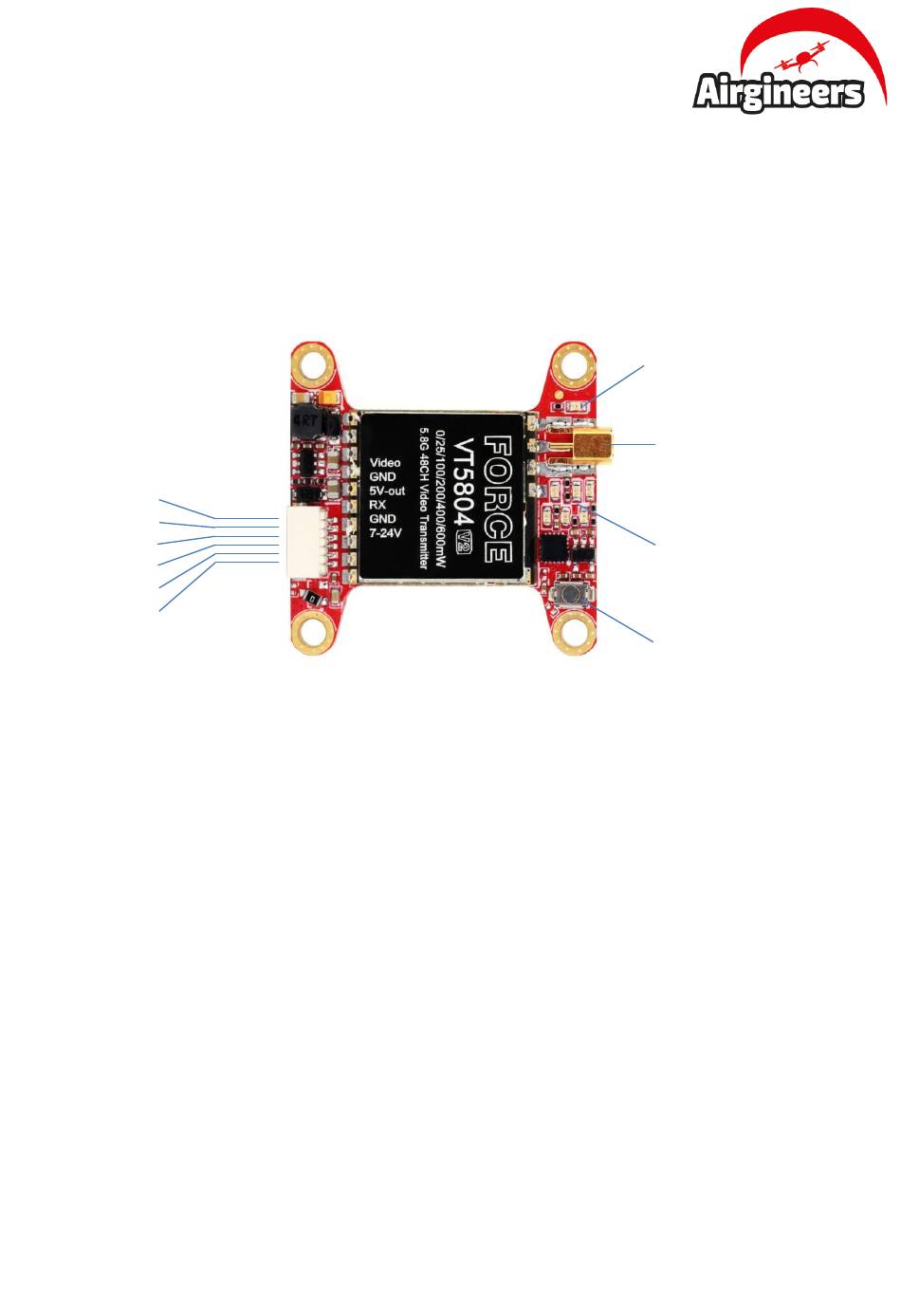

PCB Layout
Connector
Video out
GND
5V out
RX
GND
Vin (7-24V)
Specification
Frequency
Operating voltage
Output voltage
Supply current
RF output power
Weight
Dimensions (mm)
*
Important – 200mW and 600mW transmissions are not permitted in the UK or in the
1
Airgineers competition. When using in the UK, please ensure 25mW mode is selected.
5.3GHz – 5.95GHz
7V – 24V
5V
Up to 300mA
0/25/200/600mW *
6g (excluding antenna adaptor cable)
36 x 36 x 5mm
1
Power indicator
(see fig. 1)
Antenna output
Band/Channel
indicator LEDs
(see fig. 2)
Control button
