Edge Quick Start Guide
Installation Overview
Step 1
Wire the 24 VAC/VDC ±10% 4-pin
power input connector for earth and
redundant power connections.
Keep in mind to daisy chain other
Setra infrastructure components.
Step 2
Edge can operate two networks at
the same time.
Connect ETH0 to Setra subnetwork.
Connect ETH1 to IT corporate
network.

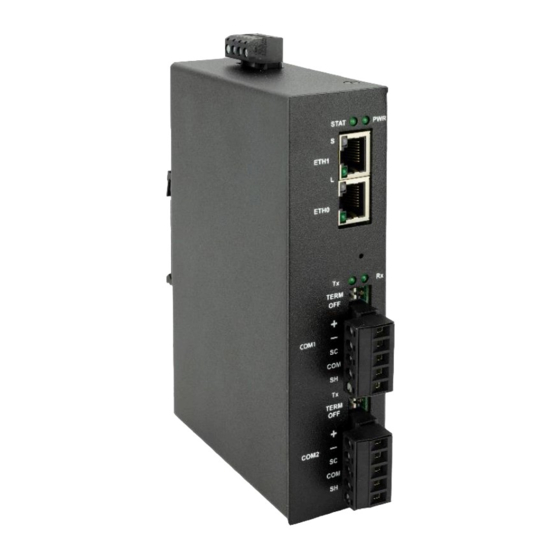

Setra EDGE
Step 3
After Edge is fully wired, secure in
controlled environment such as an
IT closet or cabinet.
The storage temperate is 32°F to
140°F and relative humidity is 10%
to 95%.
