Summary of Contents for Dorman MULTI-FIT

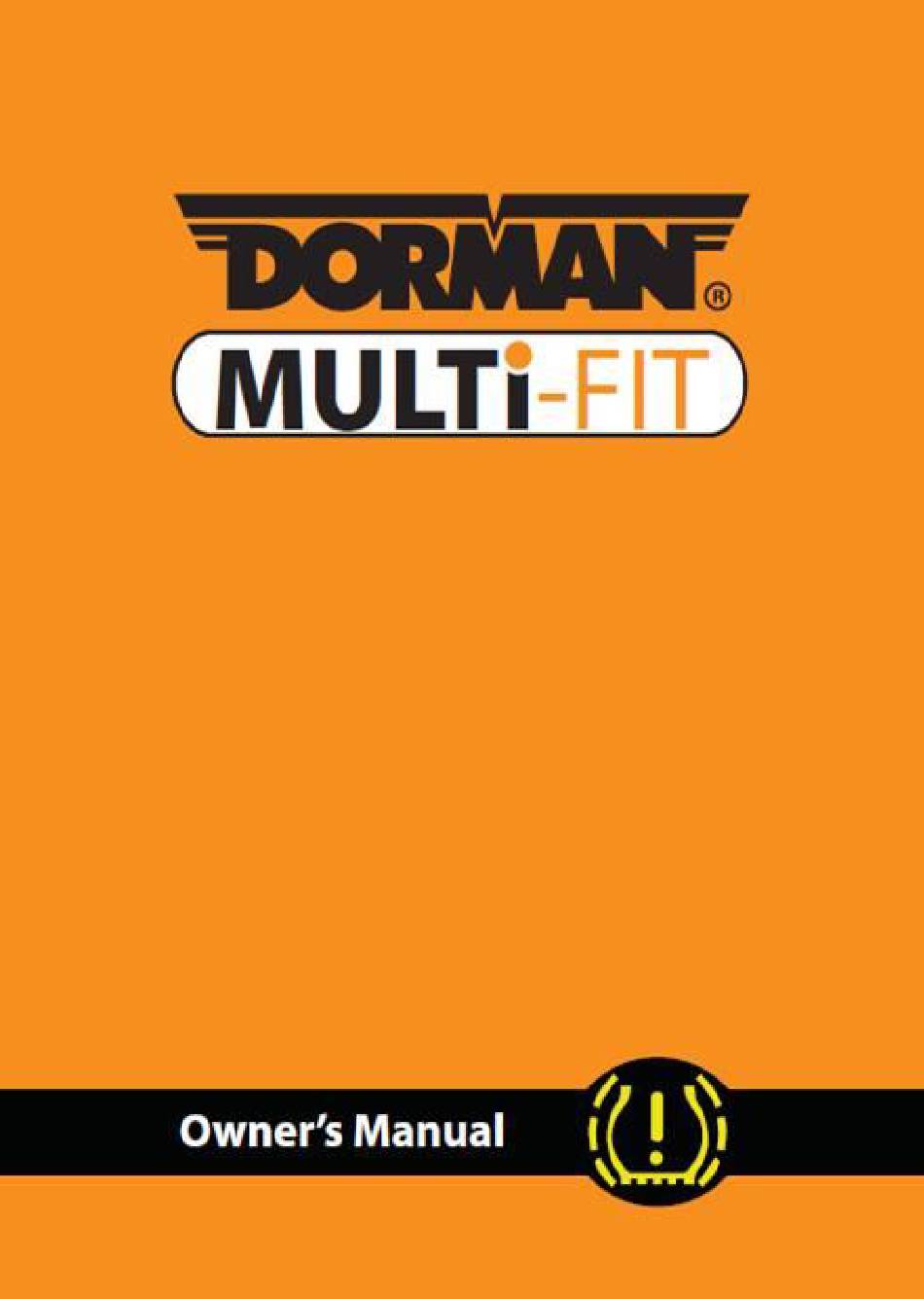

- Page 1 Owner's Manual...
-
Page 2: Lcd Display
Introduction MULTi-FIT Tool 1 TPMS Programmer MULTi-FIT Tool 1 TPMS Programmer is designed to program Dorman MULTi-FIT TPMS Sensors. Sensor Cradle LCD Display Indicators Keypad USB Connector... -
Page 3: Keypad Functions
Keypad Functions MULTi-FIT Tool 1 TPMS Programmer Keypad Summary Power On / Off Navigate through menus and parameters by pressing up and down keys Enter key, press to select function or validate a parameter Esc key, press to return to the previous menu... - Page 4 Keypad Functions MULTi-FIT Tool 1 TPMS Programmer Power On The Device Press and hold the power key to power on the device During power on, the device displays the Dorman logo. Software revision number is located below the MULTi-FIT logo.
-
Page 5: Application Selection
Application Selection MULTi-FIT Tool 1 TPMS Programmer Application Selection Use arrow key to scroll up and down between maker Make selection: MAKE SELECTION arrow A B C D E F G H I J to highlight the first letter of the vehicle make, press the "Enter"... - Page 6 Application Selection MULTi-FIT Tool 1 TPMS Programmer Application Selection cont'd 5 SERIES Year selection: Use the arrow key to highlight the year(s) and press 2011-12 (433) the "enter" key to select. 2006-09 (433) 2010-09 (433)
- Page 7 Manual Duplicate MULTi-FIT Tool 1 TPMS Programmer Manual Duplicate an O.E. Sensor This function is designed to manually duplicate an O.E Sensor's unique ID and to bypass relearning the sensor to the vehicle. 5 SERIES Function selection: Use the arrow key...
- Page 8 Manual Duplicate MULTi-FIT Tool 1 TPMS Programmer ID Locator: This will show you where the ID is located on the O.E. Sensor. Some manufacturers may have m o r e than one type of sensor. Use the arrow to browse.
- Page 9 2 short beeps to confirm programming completion. ** Note: The MULTi-FIT Sensor is now ready to install and the vehicle will not need to go through a relearn. The MULTi- FIT sensor is programmed as an exact duplicate of the O.E.
-
Page 10: Program Blank Sensor
↵ (Esc) : BACK ( ) : PROGRAM completion. ** Note: Once the Program function is complete, the MULTi-FIT Sensor can be installed into the tire and the appropriate re-learn procedure must be performed to register the replacement ID(s). -
Page 11: Device Setting
MULTi-FIT Tool Settings Device Setting Press Esc to go in to setting at maker selection menu SETTING ID Format: Change the ID format between decimal and hexadecimal with the ID FORMAT: Auto “Enter” key AUTO OFF: 3min ** Note: The preset is AUTO... - Page 12 MULTi-FIT Tool Settings Device Setting Press Esc to go in to setting at MAKE SELECTION menu SETTING Device S/N: The device’s serial number is used to update the device's BUZZER: firmware via CD or internet. DEVICE S/N: ITM00730 ** Note...
-
Page 13: Software Update
Software Update Software Installation 1. Insert the CD, supplied with instrument, into the PC drive and click on the Dorman icon to start the installation 2. The following screen will appear. Click " Install " * * N o t e... - Page 14 Software Update 1. Connect the USB cable from MULTi-FIT Tool to the Click on the Dorman TPMS update icon to start the program. 2. The following screen appears. When "USB Connect" is displayed, Click "Open File" to select the newest update file either downloaded from the web or on a CD.
- Page 15 Software Update Device Software Update 4. The update process should look like the following window, the update status light will flash yellow light during the update. 5. When the update is completed the update status light will be solid green. Discover other TPMS sensors on our website.
