- Page 1 QUICK GUIDE IMMUVIEW READER ® ENGLISH (UK) Instrument for automated interpretation of results for ImmuView ® lateral flow test...
- Page 2 ® IMMUVIEW READER Introduction ® This short ImmuView Reader Quick Guide provides an overview of how to perform a test with the ImmuView ® Reader, and an ImmuView ® strip. The ImmuView ® ® Reader is an instrument for automated interpretation of results for ImmuView lateral flow test.

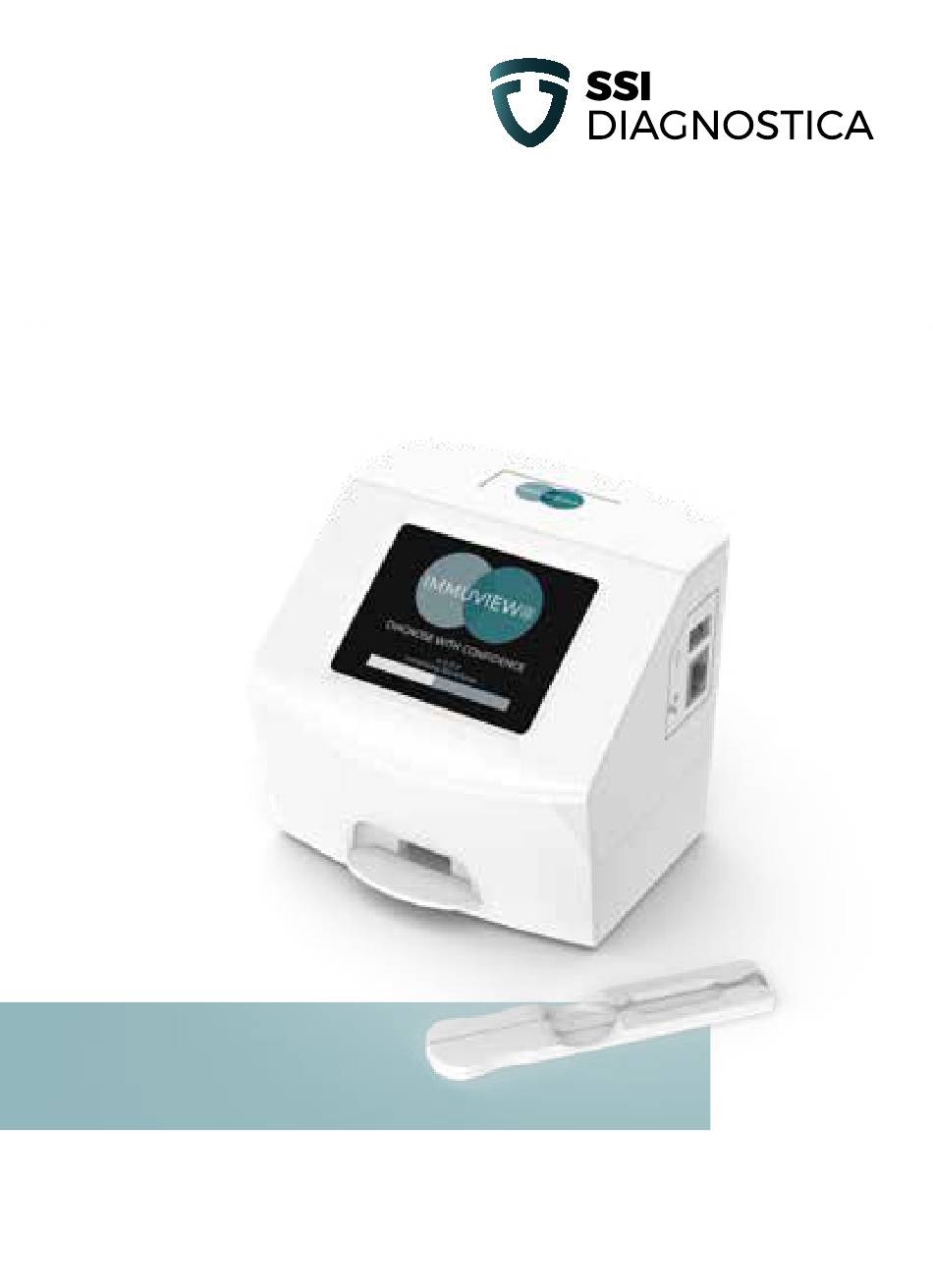

- Page 3 ® The ImmuView Reader, consumables, and its ports Figure 1 ImmuView Reader - Front View ® CONNECTION TFT-LCD COLOUR DISPLAY & TOUCH SCREEN LED STATUS INDICATOR CARTRIDGE/STRIP CARRIER SLOT ETHERNET CONNECTION Figure 2 ImmuView Reader - Rear View ® CONNECTION COMPANY LOGO RATING LABEL AUDIO SPEAKER...
- Page 4 Start up the ImmuView Reader ® Turn on the reader by pressing and holding the power button for 2-3 seconds (until a tone sounds). The power button is found on the left side of the ImmuView ® Reader (see picture of reader on page 3). The start-up sequence is an automated test that is performed to verify correct internal system functionality of the reader.
-
Page 5: How To Run A Test
How to run a test Step 1: Press “TEST” on the Screen The Test menu shows the different types of tests that ® can be performed on the ImmuView Reader: • Perform Test • Instrument Check For further test settings, please refer to section 8.7 in the user manual Step 2: Press “Perform Test”... - Page 6 Step 4: Insert the strip into the Strip Carrier Back Front Strip placement Make sure ”P&L” is visible & placed as shown in the picture. Please refer to the section “How to insert the ImmuView ® strip in the Strip Carrier”, at the end of this quick guide, for a detailed description.
- Page 7 You can remove the Strip Carrier from the ImmuView ® Reader now. ® ImmuView Reader results outcomes: A positive result will display a “Red Plus” next to the text. A negative result will display a “Green Minus” next to the text. Boil &...
- Page 8 Other essential features Performing an Instrument Check To perform an Instrument Check: Follow step 1 and in step 2 [on page 5 in this Quick Guide] press the ‘Instrument Check’ . Unpack the Instrument Check Cartridge. Follow Step 5 and insert the Instrument Check Cartridge Instrument Check Cartridge in the reader.
- Page 9 ® How to insert the ImmuView strip in the Strip Carrier Step 1: Follow the Sample addition Add running buffer Add test and wait and whirl gently 15 minutes procedure as described in the ImmuView ® 3 drops 2 drops (120 µL) (90 µL) S.
- Page 10 Next, follow step A, B and C, and you are ready to insert the Strip Carrier in the ImmuView Reader ® Gently insert the ImmuView strip in the Strip Carrier. Make sure “arrows” ® go in first, and the “P&L” text is at the back. Continue to gently push the ImmuView ®...
- Page 11 Cleaning the Strip Carrier: Cleaning with 70% Isopropanol and 10% Bleach. See manual for further details. Quality certificate SSI Diagnostica’s development, production and sales of in vitro diagnostics are quality assured and certified in accordance with ISO 13485. 18344 Information and ordering SSI Diagnostica A/S - Herredsvejen 2 - 3400 Hillerød - Denmark...
