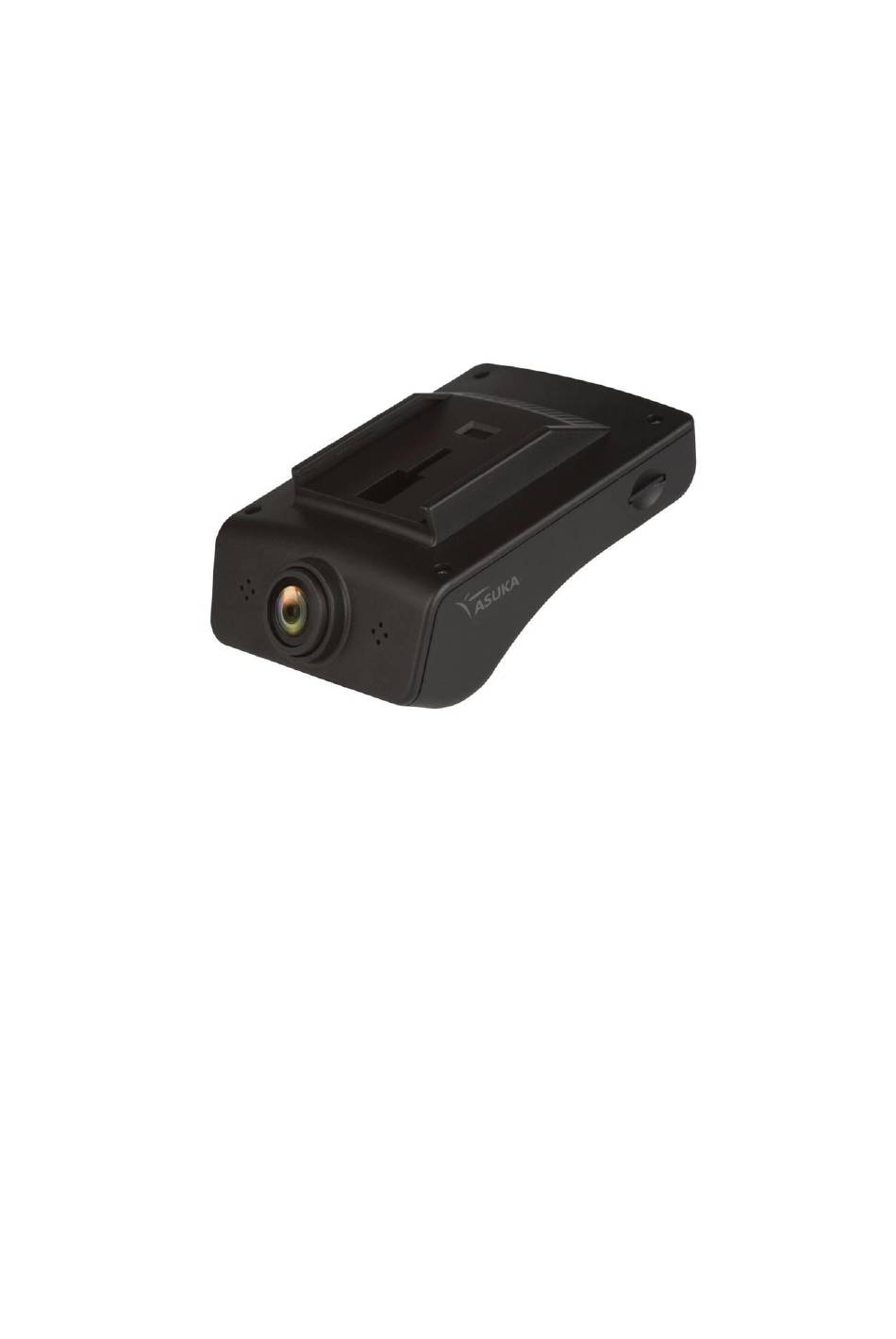

- Page 1 Full-HD Drive Recorder Model: BK-200 User Manual...
-
Page 2: Table Of Contents
III.2 Rear Camera (Optional accessory) ......................6 III.3 Interconnection Cables ..........................6 Installation ........................7 Initial Setting ......................10 Using BK-200 ......................11 VI.1 Recording ............................... 11 VI.1.1 Recording Modes ..........................12 VI.2 Menu ..............................13 VI.2.1 Options Setting ..........................13 VI.2.2 Playback Mode .......................... -
Page 3: Product Overview
1920 x 1080, rear 1280x720). ◼ Seamless integration with ASUKA Car TV Receiver and 2-Din Headunit For users who already had the ASUKA Car TV receiver such as HR-600 & HR-630, BK-200 can be directly connected to HR-600/HR-630 via dedicated DVR input port and operated BK-200 as an integral part of TV receiver using the same remote controller. -
Page 4: Contents Of Package
II. Contents of Package The package of BK-200 contains the standard accessories as shown below. If you wish to buy the optional accessories, please contact local distributor for further purchase. Standard Accessory: 1. Main Unit 2. Interconnection Cable for 3. Adjustable Stand with... - Page 5 Description of button key & LED status: Buttons Buttons description Functions Multi-function Under Recording mode Under Menu mode Enter system MENU Exit system MENU Switch on/off the WiFi (Optional) Move selection upward Move selection downward Start/Stop the recording Enter/Confirm the selection Start/Stop emergency recording mode 3-color LED LED status indicators...
-
Page 6: Iii.2 Rear Camera (Optional Accessory)
III.3 Interconnection Cables There are two different types of interconnection cable available for your application. ◼ HR-630 Interconnection cable: This is the specific cable prepared for connecting BK-200 with ASUKA Car TV receiver( i.e. HR-630) and PTA series Headunit (i.e. PTA-100). -
Page 7: Installation
Connect to HR-630 or in-dash head unit. STEP 1: Select a suitable position Select a suitable position for BK-200 main unit installation. A suitable position is a place around the windshield & WITHOUT tinted film on it. The place behind the mirror is the best position for installation. - Page 8 Windscreen Track of stand STEP 4: Route the “Interconnection Cable” from BK-200 to Car TV receiver, or the general-type power cable from BK-200 to head unit. STEP 5: Select a preferred position for Rear Camera Choose a preferred installation position for Rear Camera and ensure the adhesive tape can be easily adhered.
- Page 9 Case 1: Connect to ASUKA Car-TV. (Suitable for using DVR along with HR-630 or HR-600) BK-200 can be powered, controlled, and monitored by the ASUKA Car TV once they are properly connected. To do so, just use the interconnection cable provided to set up the connection.
-
Page 10: Initial Setting
: Enter/Confirm the selection. : Move the selection downward. Note: If the BK-200 DVR is connected by ASUKA Car-TV, one could press “SRC” key in the remote controller to change the TV mode to DVR mode and start DVR operation. -
Page 11: Using Bk-200
After the device is powered up, it will automatically enter the recording mode to perform recording operation. At this mode, the options available will appear as follows to allow users control or monitor the operation of BK-200. Current date Front/Rear Camera &... -
Page 12: Vi.1.1 Recording Modes
Once you switch off the engine, the recording file will be automatically saved and then shutdown BK-200. As time goes, when the SD card memory is full of recorded files, the most recent recorded file will “overwrite” the oldest recorded file. This is so-called “... -
Page 13: Vi.2 Menu
VI.2 Menu In the system menu, one could either enter other operating mode or configure the device settings. VI.2.1 Options Setting ◼ Camera: Adjust camera display mode. ◼ Movie Size: Adjust preferring resolution. ◼ File Length: Adjust recording file length. ◼... -
Page 14: Vi.2.3 System Setting
Video Play After a file is selected from the File Browser screen, it will start playing the video. When the current file reaches its end, the next file will be played automatically. Playing progress Video file name Button key’s operation in video play mode: : Go back to File Browser screen. -
Page 15: Vi.3 Software Update
VI.3 Software Update After acquiring a new version of BK-200 software, please follow below steps to upgrade your device. Unzip the upgrade file and then copy it to the root folder of a micro-SD card Insert the micro-SD card into BK-200, and then power on the device The confirmation dialog will show up. -
Page 16: Specification
VII. Specification VII.1 Main Unit Lens & CMOS Sensor 4-megapixel sensor with best-in-class low-light sensitivity and high dynamic range. Optical imaging lens containing built-in 6 glasses with wide F/1.8 aperture and 4M pixels resolution. Wide view angle: 122 °(H), 63°(V), 160°(D) Supported recording mode Automatic and loop recording Emergency recording: built-in 3-axies G-sensor for crash detection and data lock... -
Page 17: Vii.2 Rear Camera
VII.2 Rear Camera Lens & CMOS Sensor 4-megapixel sensor with best-in-class low-light sensitivity and high dynamic range. Optical imaging lens containing built-in 6 glasses with wide F/1.8 aperture and 4M pixels resolution. °(H), 63°(V), 160°(D) Wide view angle: 122 Video Quality Max.
