1/48 scale detail set for RODEN kit •sada detailù pro model RODEN 1/48
FE283
ORIGINAL KIT PARTS
PÙVODNÍ DÍLY STAVEBNICE
OV-1A Mohawk
OV-1A Mohawk
I.
2 pcs 31C
2 pcs 32C
16C
2.)
9
2 pcs
47
A
B
15
39
12
11
All manuals and user guides at all-guides.com
OV-1A Mohawk
PHOTO-ETCHED PARTS
LEPTANÉ DÍLY
II.
37C
22C
15
11
54
Film
2 sets
1.)
24
45
55
36C
56
3.)
14
A
B
eduard
APPLY EXPRESS MASK AND PAINT BEFORE GLUING
POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM
SYMETRICAL ASSEMBLY
SYMETRICKÁ MONTÁŽ
REMOVE
BEND
ODSTRANIT
GRIND
?
OBROUSIT
REPLACE
DRILL HOLE
VRTAT OTVOR
PARTS TO BE REMOVED
DÍLY K ODSTRANÌNÍ
11C 16C, 17C, 22C
31C, 32C, 37C
Kit part 14C not used !
45
46
38
FE283
OHNOUT
OPTION
VOLBA
NAHRADIT
plastic
= 0,3mm
l = 1mm
49
16
13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eduard Zoom OV-1A Mohawk
Summary of Contents for Eduard Zoom OV-1A Mohawk

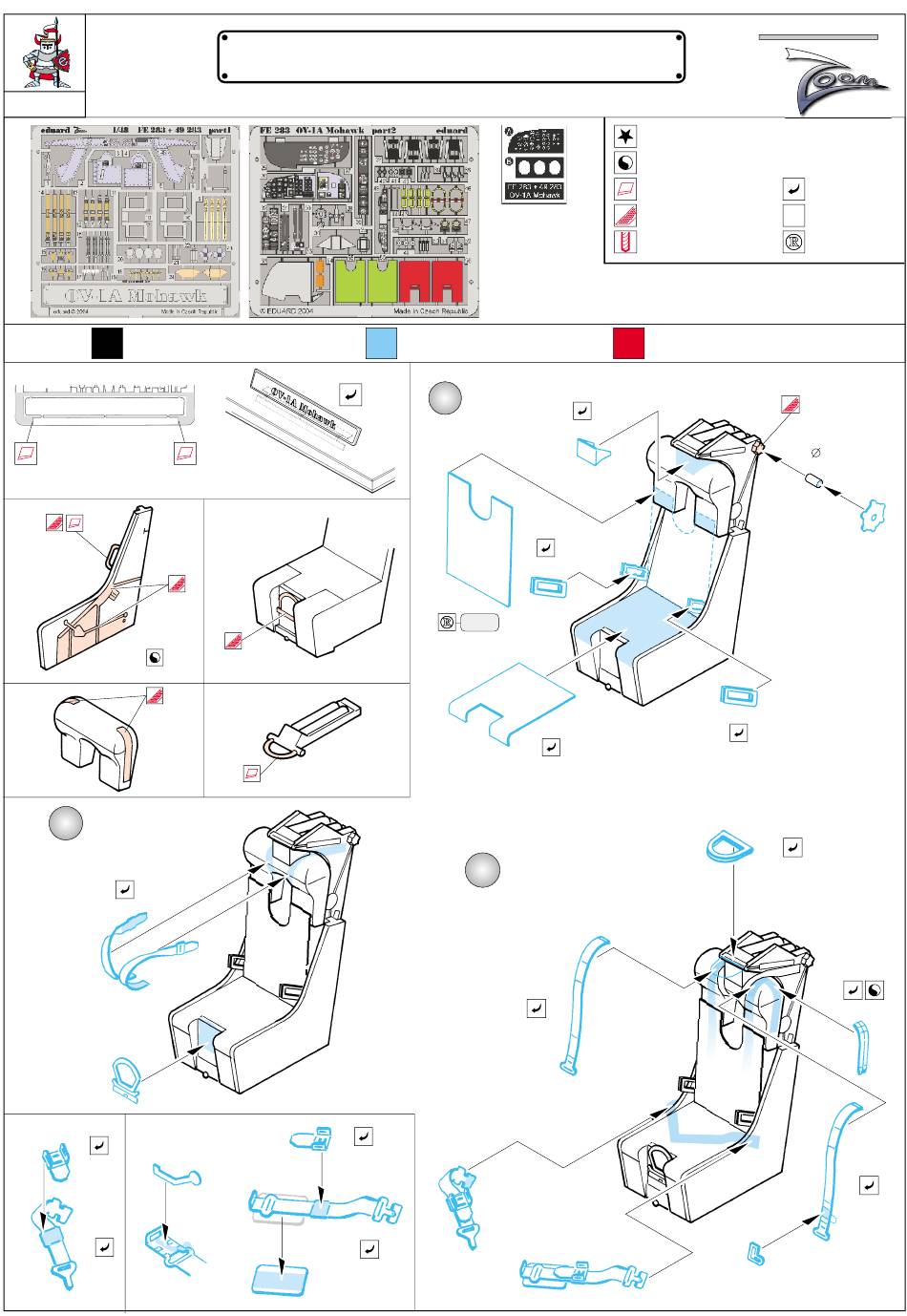

- Page 1 FE283 eduard All manuals and user guides at all-guides.com OV-1A Mohawk 1/48 scale detail set for RODEN kit •sada detailù pro model RODEN 1/48 FE283 APPLY EXPRESS MASK AND PAINT BEFORE GLUING POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM SYMETRICAL ASSEMBLY SYMETRICKÁ...
- Page 2 FE283 All manuals and user guides at all-guides.com 1D, 34D 1D, 34D plastic = 1mm l = 13mm 2D, 5D, 35D plastic = 0,7mm l = 1mm 2 pcs 2 pcs plastic = 0,7mm l = 1mm 33D, 42D, 43D...
- Page 3 FE283 All manuals and user guides at all-guides.com 56D, 6G 56D, 6G 13C, 20C 1,3mm plastic Film A 13C, 20C Film B References : http://www.ov-1.com/73rd_SAC Made in Czech Republic © EDUARD M.A. 2004 www.eduard.com...
