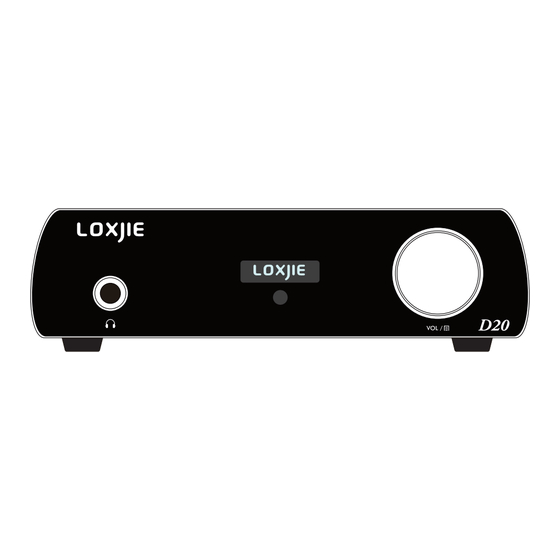

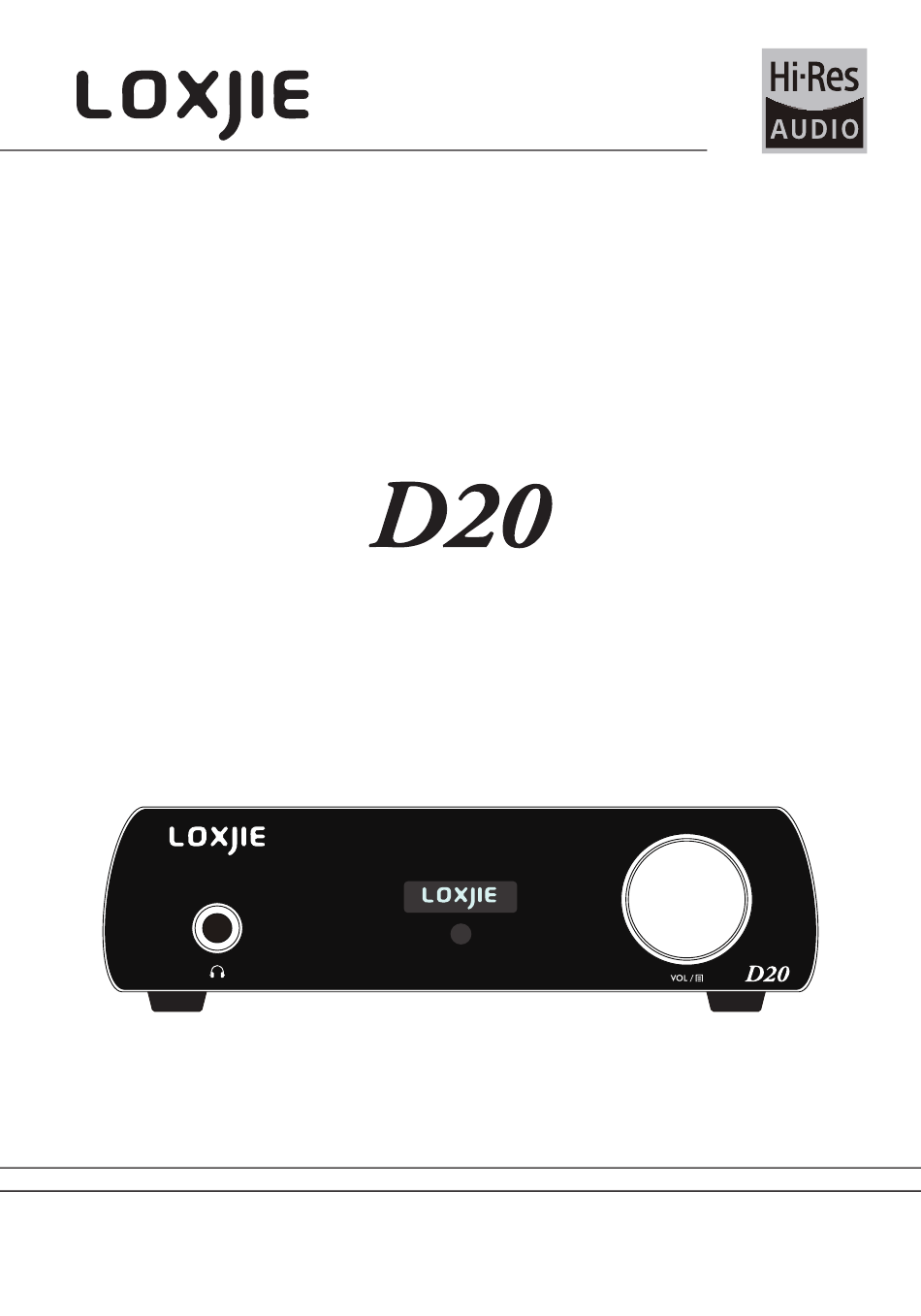

  • Page 2 简介 D20是Loxjie(乐士杰)品牌推出的首款桌面式线性电源解码耳放一体机!采 用了AKM公司的旗舰音频解码芯片AK4497,超高信噪比,超低失真度支持硬解 DSD512 ! 精心的性能优化和声音调校,使D20成为完美的桌面耳机搭档! 特点 AKM公司的旗舰音频解码芯片AK4497,超高信噪比,超低失真度,支持硬解 DSD。 第二代XMOS方案,PCM最高支持32bit/768kHz,DSD最高支持DSD512。 内置多种PCM格式的数字滤波器。 分立元件AB类大功率电流驱动耳放电路设计。 医疗级密封环形变压器加精心设计的电源电路,使用多组低噪声LDO供电。 大量使用发烧音频元件。 全铝CNC加工外壳,做工十分精细壳。 人性化的操作,并具有开关机记忆功能。 精心调校的性能和声音。 超低相位噪声时钟系统。...
  • Page 3 部件介绍 H I-RES D AC HEA DPHONE AMPLI FIER I NPUT USB输入 多功能旋钮 遥控接收窗 光纤输入 显示屏 同轴输入 6.35mm耳机输出 线路输出 电源插座...
  • Page 4 关于遥控器 注意: 如果遥控器距离本机很近时操作仍无效, 请用新电池更换。 如果要长时间不使用遥控器, 请取出遥控器的电池。 按照电池处置的地方性法规处置废旧电池。 遥控器请使用2节7号(AAA)电池。 遥控器使用距离5-8米。 开关机 显示亮度调节 静音 无功能 菜单 功能切换 无功能 无功能 无功能 无功能 输出切换 输入源切换 音量 + 无功能 音量 -...
  • Page 5 功能及操作说明 多功能旋钮: 旋钮长按开/关机,短按菜单 左右旋转为音量调节/切换菜单功能 主界面: 输入方式显示 输出方式显示 LINE 20 音量显示 44.1 kHz 采样率显示 注:当前用静音时此处显示MUTING; 当无信号输入时此处显示No signal 菜单 : 页面名称,用于设置 Input 当前页,总共5页 2 Optical 设置状态 输入模式: Input 2 Optical Optical (光纤输入) Coaxial (同轴输入) 输出模式: Output Line out (线路输出,支持音量控制) 1 Line out HP out (6.35mm耳机输出)
  • Page 6: Filter Off

    功能及操作说明 数字滤波模式(只对PCM信号起作用): Sharp r-off (陡峭滚降) Filter Slow r-off (缓慢滚降) 1 Sharp r-off SD Sharp (短延时陡峭滚降) SD Slow (短延时缓慢滚降) Super Slow (超低延时缓慢滚降) Short delay (短延时) 音色菜单: Default Sound Current MAX Default Current MID Current MIN 亮度调节: Auto turn-off (5秒后自动息屏,任何操作点亮) Dimmer Brightness 1 (低亮度) Auto turn-off...
  • Page 7 技术参数 输入方式 ................USB、光纤、同轴 输出方式 ................6.35mm耳机、线路 THD+N: 线路输出 ..................0.0004% 耳放输出 ..................0.002% 动态范围 ....................122dB 信噪比: 线路输出 ..................112dB 耳放输出..................105dB USB传输方式 ..................异步传输 USB兼容性 ..............Windows 7 / 8 / 8.1 / 10 OSX10.6以上、Linux 位深: USB ..................1bit ~ 32bit 光纤/同轴 ................16bit ~ 24bit 采样率: USB .................PCM: 44.1 ~ 768kHz DSD: DSD64 ~ DSD512 光纤、同轴...
  • Page 8 USER MANUAL...
  • Page 9 Introduction The D20 is the first desktop digital to analog converter and headphone amplifier from the Loxjie brand! Adopting AKM's flagship audio DAC chip AK4497, ultra-high signal-to-noise ratio, ultra-low distortion, and fine-tuned circuits and sound performance make it perfect for desktop audiophile application!
  • Page 10: Parts Names

    Parts Names H I-RES D AC HEA DPHONE AMPLI FIER I NPUT Knob USB input Remote window Optical input Display Coaxial input 6.35mm headphone jack Audio Out Power inlet...
  • Page 11: Remote Control

    Remote control Note: Install 2 x AAA batteries as instructions. When using the remote control, point it toward the remote con-trol signal receiver on the main unit from a distance of 5 m (16 ft) or less. Do not place obstructions between the main unit and the remote control.
  • Page 12 Function and operation instructions Knob : Hold to POWER ON/OFF the unit, Press to switch Menus. Rotate to adjust the Volume or Menu items. Main Display: Input Source Output Mode LINE 20 Current volume level 44.1 kHz Sampling rate Note: Display "NO SIGNAL" when for no inputs Menu: Current page name Input...
  • Page 13: Sound Off

    Function and operation instructions PCM Filter: Sharp r-off Filter Slow r-off 1 Sharp r-off SD Sharp SD Slow Super Slow Short delay Sound(Sound Mode): Default Sound Current MAX Default Current MID Current MIN Dimmer: Auto turn-off (In this mode display will turn off Dimmer in 5 senconds and will turn on Auto turn-off...
  • Page 14: Specification

    Specification Input ..............USB / Optical / Coaxial Output ............Line / 6.35mm Headphone THD+N: Line ................0.0004% Headphones ..............0.002% Dynamic range ................122dB SNR: Line ...................112dB Headphones................105dB USB transmission ............Asynchronization USB compa bility ..........Windows 7 / 8 / 8.1 / 10 OSX10.6以上、Linux Bit depth: USB ................1bit ~ 32bit Optical/coaxial ............1bit ~ 24bit Sampling rate:...
