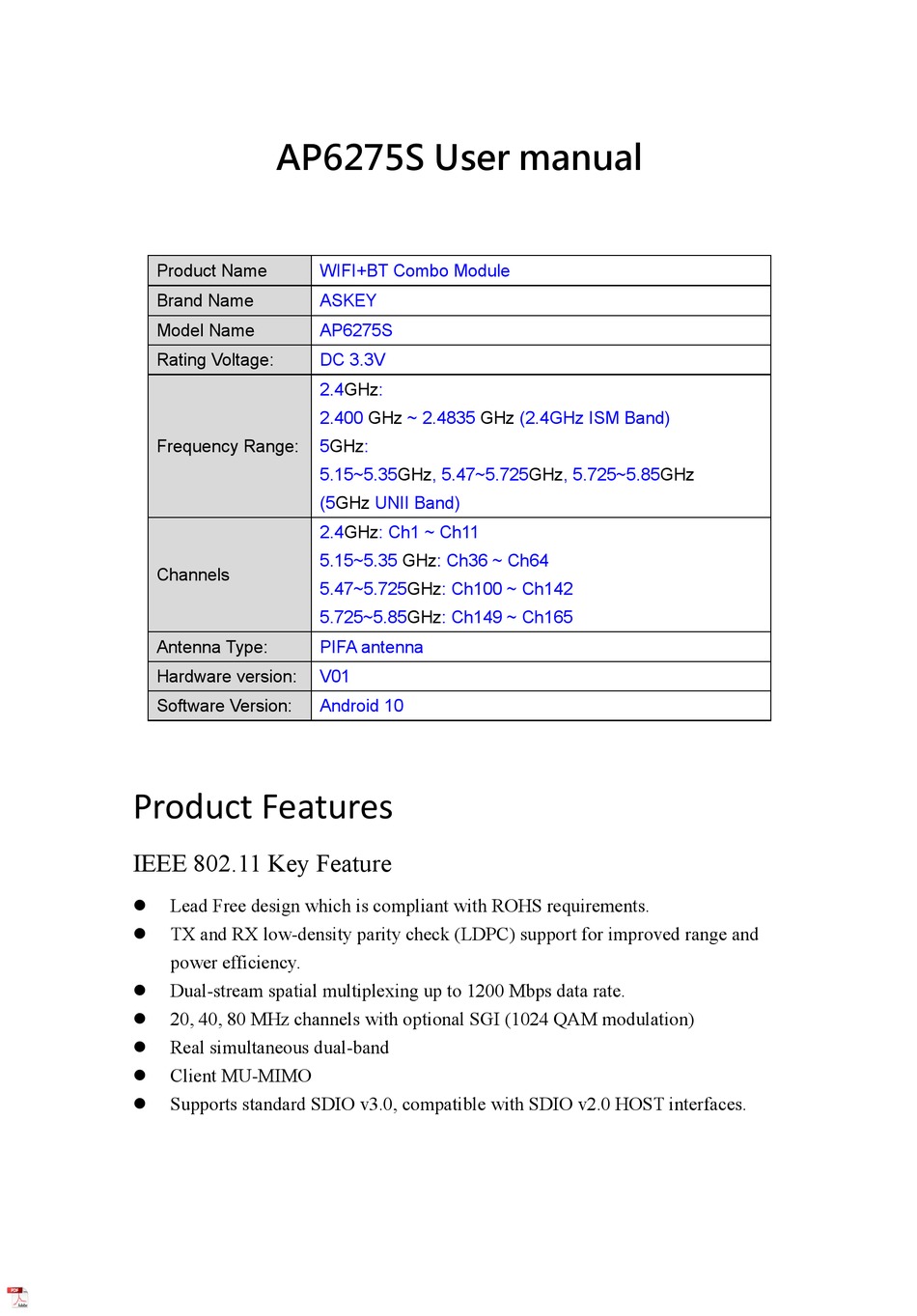

AP6275S User manual

Product Name

Brand Name

Model Name

Rating Voltage:

Frequency Range:

Channels

Antenna Type:

Hardware version:

Software Version:

Product Features

IEEE 802.11 Key Feature

Lead Free design which is compliant with ROHS requirements.

⚫

TX and RX low-density parity check (LDPC) support for improved range and

⚫

power efficiency.

Dual-stream spatial multiplexing up to 1200 Mbps data rate.

⚫

20, 40, 80 MHz channels with optional SGI (1024 QAM modulation)

⚫

Real simultaneous dual-band

⚫

Client MU-MIMO

⚫

Supports standard SDIO v3.0, compatible with SDIO v2.0 HOST interfaces.

⚫

WIFI+BT Combo Module

ASKEY

AP6275S

DC 3.3V

2.4GHz:

2.400

GHz

~ 2.4835

GHz

5GHz:

5.15~5.35GHz, 5.47~5.725GHz,

(5GHz

UNII Band)

2.4GHz: Ch1 ~ Ch11

5.15~5.35 GHz: Ch36 ~ Ch64

5.47~5.725GHz: Ch100 ~ Ch142

5.725~5.85GHz: Ch149 ~ Ch165

PIFA antenna

V01

Android 10

(2.4GHz ISM Band)

5.725~5.85GHz

Table of Contents

Need help?

Do you have a question about the AP6275S and is the answer not in the manual?

Questions and answers

Summary of Contents for Askey AP6275S

Page 1 AP6275S User manual Product Name WIFI+BT Combo Module Brand Name ASKEY Model Name AP6275S Rating Voltage: DC 3.3V 2.4GHz: 2.400 ~ 2.4835 (2.4GHz ISM Band) Frequency Range: 5GHz: 5.15~5.35GHz, 5.47~5.725GHz, 5.725~5.85GHz (5GHz UNII Band) 2.4GHz: Ch1 ~ Ch11 5.15~5.35 GHz: Ch36 ~ Ch64 Channels 5.47~5.725GHz: Ch100 ~ Ch142...
Page 2 Bluetooth Key Feature BT host digital interface: ⚫ - HCI UART (up to 4 Mbps) - PCM for audio data Complies with Bluetooth Core Specification Version 5.0 with provisions for ⚫ supporting future specifications. With Bluetooth Class 1 or Class2 transmitter operation.
Page 3: Ghz Rf Specification
Wi-Fi RF Specification 2.4GHz RF Specification Frequency Range: 802.11b/g/n-HT20/ax-HE20: 2412 ~ 2462MHz Channel Number: 802.11b/g/n-HT20/ax-HE20: 11 Type of Modulation: 802.11b: DSSS 802.11g/n: OFDM 802.11ax: OFDMA 5GHz RF Specification Frequency Range: For 802.11a/n-HT20/ac-VHT20/ax-HE20: 5180~5240MHz, 5260~5320MHz, 5500~5720MHz, 5745~5825MHz For 802.11n-HT40/ac-VHT40/ax-HE40: 5190~5230MHz, 5270~5310MHz, 5510~5710MHz, 5755~5795MHz For 802.11ac-VHT80/ax-HE80: 5210MHz, 5290MHz, 5530MHz, 5610MHz, 5690MHz, 5775MHz Type of Modulation:...
Page 4: External Clock Reference
External clock reference...
Page 5: U.s. Fcc Statement
U.S. FCC Statement FCC ID: H8N-AP6275S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 6 Canada (IC) Notices IC: 1353A-AP6275S CAN ICES-003(B) / NMB-003(B) This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device.
Page 7 Notice that any deviation(s) from the defined parameters of the antenna, as described by the instructions, require that the host product manufacturer must notify to Askey that they wish to change the antenna trace design. In this case, a Class II permissive change application is...
Page 8 Antenna (1) The antenna must be installed such that 20 cm is maintained between the antenna and users. (2) The transmitter module may not be co-located with any other transmitter or antenna. In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC/IC authorization is no longer considered valid, and the FCC ID/IC Certification Number cannot be used on the final product.
Page 9 List of applicable FCC rules This module has been tested and found to comply with part 15 requirements for Modular Approval. The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and that the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification.
Page 10: Radiation Exposure Statement
This device is intended only for OEM integrators under the following conditions: (For module device use) 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required.
Page 11: Industry Canada Statement
Industry Canada Statement This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Page 12: Important Note
This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains IC: 1353A-AP6275S”.
Page 13: Plaque Signalétique Du Produit Final
être installée de telle sorte qu'une distance de 20cm peut être maintenue entre l'antenne et les utilisateurs. Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante: " Contains IC: 1353A-AP6275S ". Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates...
Page 14 Dimensions...
Page 15 Label...
Page 16: Recommended Reflow Profile
Recommended Reflow Profile...
Page 17: Package Information
Package Information...
