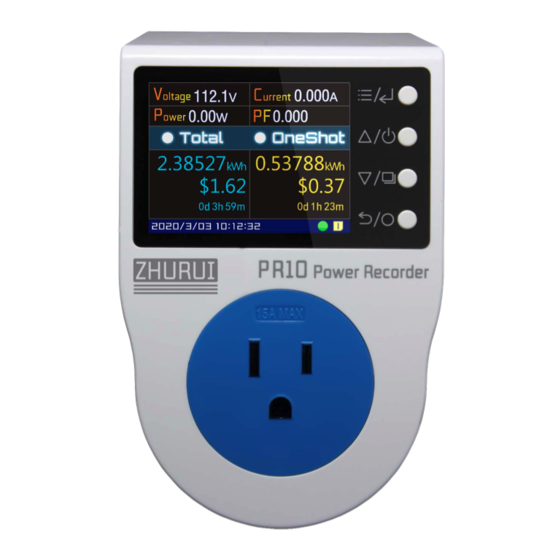

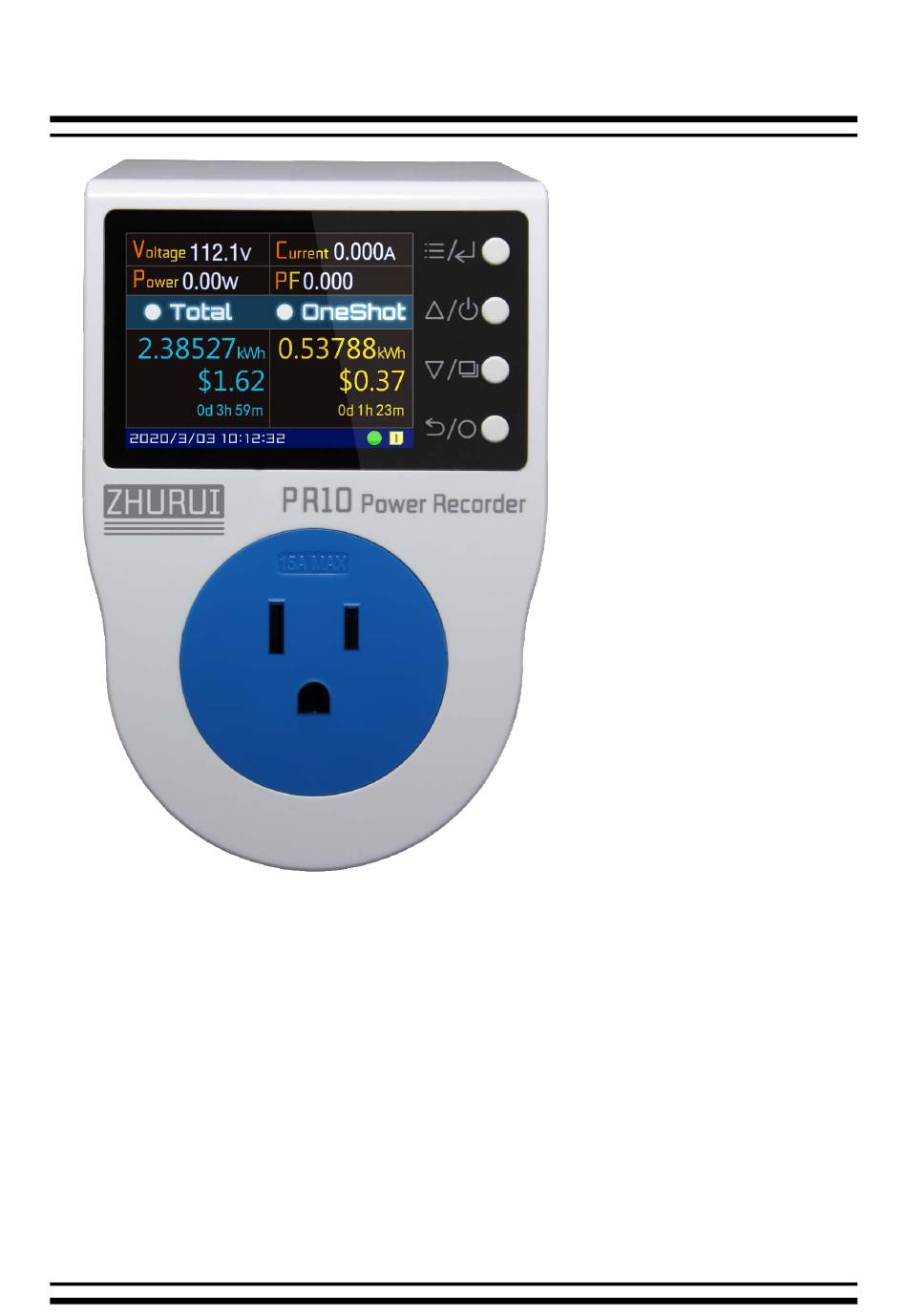

- Page 1 ZHURUI User Manual PR10-E Power Recorder Shenzhen Zhurui Technology Co.,Ltd.
- Page 2 ZHURUI Shenzhen Zhurui Technology Co.,Ltd. Thank you for purchasing this ZHURUI "PR10 Power Recorder". To get the maximum performance from the unit, please read this manual first, and keep this at hand. Packing Lists 1.PR10 Power Recorder ………………………………………………………………………………………………………………1 Set 2.User Manual ……………………………………………………………………………………………………………………1 Copy 3.Warranty Card …………………………………………………………………………………………………………………1 Copy 4.Product Certification ……………………………………………………………………………………………………………1 Copy If the machine fails, do not open the machine and...
-
Page 3: Product Overview
ZHURUI Shenzhen Zhurui Technology Co.,Ltd. Product Overview PR10 Power Recorder is displayed by 2.4 inch TFT color LCD, and it can measuring a variety of electrical equipment’s power, power factor, voltage, current, frequency, accumulated electricity consumption, accumulated electricity bill, accumulated electricity time, one shot electricity consumption, one shot electricity bill and one shot electricity time. -
Page 4: Technical Index
ZHURUI Shenzhen Zhurui Technology Co.,Ltd. Power Factor Measuring Record View by Annual Charts Alarm ● ● ● Frequency Measuring Record View by Annual Lists Output Protect ● ● ● Accumulated Electricity Consumption Record View by Monthly Charts Switch State Can Be Setting ●... - Page 5 ZHURUI Shenzhen Zhurui Technology Co.,Ltd. PR10 Exterior PR10-E Front PR10-E Back Interfaces Home page Overview Page One Shot Page Real-time Parameters Page Status bar icons Warning：The icon flashes when there is an alarm event; Timer: The icon appears in the status bar when the timer is turned on.
-
Page 6: Key Functions
ZHURUI Shenzhen Zhurui Technology Co.,Ltd. Key Functions Keys Function In Main page In Setting page Press this key to show the If confront digits to confirm the number, then jump to next setting, if confront checkbox to check or System Menu. not check, if confront radiobox to check the radiobox or not where the cursor on, and jump to next setting, then confirm it. -
Page 7: Function Settings
ZHURUI Shenzhen Zhurui Technology Co.,Ltd. Year-Chart Year-List Function Settings Process of entering into setting page. Press “ ” key in main pages, to pop up the main menu. Press “ ” key to select the menu item that needed, now the item is white letters on blue. - Page 8 ZHURUI Shenzhen Zhurui Technology Co.,Ltd. Currency settings See the “Process of entering into setting pages”, enter the currency setting page; Press “ ” key or “ ” key to move the cursor to the currency which is needed; Press “ ”...
- Page 9 ZHURUI Shenzhen Zhurui Technology Co.,Ltd. The date formats setting See the “Process of entering into setting pages”, enter the date format setting page; Press “ ” key or “ ” key to select the needed date formats; Press “ ”...
- Page 10 ZHURUI Shenzhen Zhurui Technology Co.,Ltd. Timer setting ( common timer(timers 3-9)setting) See the “Process of entering into setting pages”, select “timer3” to “timer9” submenu item and enter the general timer setting page. Press “ ” key to set the timer, now the “Enabled” checkbox is blue. Press “...
- Page 11 ZHURUI Shenzhen Zhurui Technology Co.,Ltd. Output protection settings See the “Process of entering into setting pages”, enter the Output Protect setting page. According to the alarm settings, complete the output protection parameter settings of voltage, current, power and temperature. If needed, press “...
-
Page 12: Frequently Asked Questions
ZHURUI Shenzhen Zhurui Technology Co.,Ltd. Enter the help page See the “Process of entering into setting pages”, enter the help page. The help page has some prompt of simple operation. *During setting, long press “ ” key or “ ”... -
Page 13: Legal Notices
ZHURUI Shenzhen Zhurui Technology Co.,Ltd. Legal Notices All Rights Reserved © Shenzhen Zhurui Technology Co., Ltd. 2016. Without permission of Shenzhen Zhurui Technology Co., Ltd. any unit or individual will not be allowed to extract, copy parts or all of this manual and transmit in any form.
