- Page 1 IPEX6000TC-C Install Guide Rev 200311 11675 Ridgeline Dr. Toll-Free: 800-530-8998 Colorado Springs, CO 80921 Fax: 719-260-0075 supportlibav@libav.com...
-
Page 3: Product Features

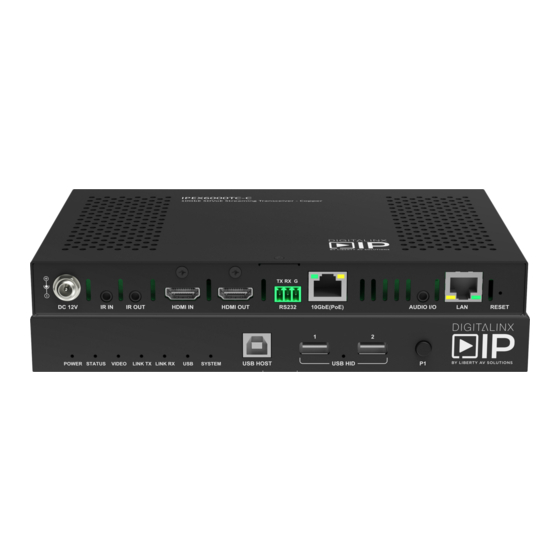

IPEX6000TC-C Install Guide Product Features IPEX6000TC-C Transceiver The IPEX6000TC-C is an AVoIP PoE powered A/V transceiver integrated with both encoder and decoder configuration which can transmit and receive video signals simultaneously. The DigitalinxIP IPEX6000TC-C supports IP-based switching and extension of true 4K/60Hz (4:4:4) video with zero frame latency up to 100 meters when using CAT6A F/UTP cabling. -
Page 4: Front And Rear Panels
IPEX6000TC-C Install Guide Front and Rear Panels IPEX6000TC-C Front Panel Status / Diagnostic LEDs • POWER: • ON; device is on • OFF; device is off • STATUS: • ON; device has entered HDMI config mode • BLINKING; The device is working in default mode •... - Page 5 IPEX6000TC-C Install Guide IPEX6000TC-C Rear Panel 12V DC power input IR receiver input IR emitter output HDMI input HDMI output RS232 / serial connection 10GBaseT AV Network connection with PoE support Analog audio input/output 10/100/1000BaseT LAN connection Factory RESET button •...
-
Page 6: System Installation Instructions
IPEX6000TC-C Install Guide System Installation Instructions Connect Transceivers to Network Switch Configure a 10GbE managed PoE network switch for multicast video operation. Note: A 1G network switch cannot be used with the 6000 series due to the high port speed requirements of the IPEX6000TC-C, a 10GbE managed network switch is required. -
Page 7: Connecting Hdmi Devices
IPEX6000TC-C Install Guide Connecting HDMI Devices Use only high quality High Speed HDMI cables rated for 18Gbps, do not exceed HDMI cable lengths over 5m/15’ for transceiver HDMI connections to AV sources and displays. Connecting Audio Devices The 3.5mm analog audio I/O connection can be configured as an input or an output and is configured in the Arranger server. - Page 8 IPEX6000TC-C Install Guide Device / System Control Arranger is an AVoIP server application that will configure and manage the 6000 series on an AV IP Network. Arranger is licensed per endpoint for one AV Network and a license unlock code should have been provided upon purchase of the Arranger DigiIP 6000 series license.
-
Page 9: Application Diagrams
IPEX6000TC-C Install Guide Application Diagrams Note: Transceiver modes as notated (encoder, decoder or both) can be configured by the Arranger server Point to Point AV Extender Note: Both transceivers must be connected to local power AC outlet with the supplied DC power supplies, the point to point application does not support PoE. - Page 10 IPEX6000TC-C Install Guide A/V Network Multi-view and Video Wall A/V Network Transceiver Mode...
- Page 11 IPEX6000TC-C Technical Specifications Input/Output Connections HDMI Input One (1) HDMI Type A Receptacle HDMI Output One (1) HDMI Type A Receptacle 10GbE: One (1) 8P8C port (Shielded RJ45) LAN: One (1) 8P8C port (Shielded RJ45) Power One (1) 5.5 mm OD, 2.1 mm ID Threaded Barrel RS232 Port One (1) 3-pin Removable Terminal Block Connector USB Device / Client...
- Page 12 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
