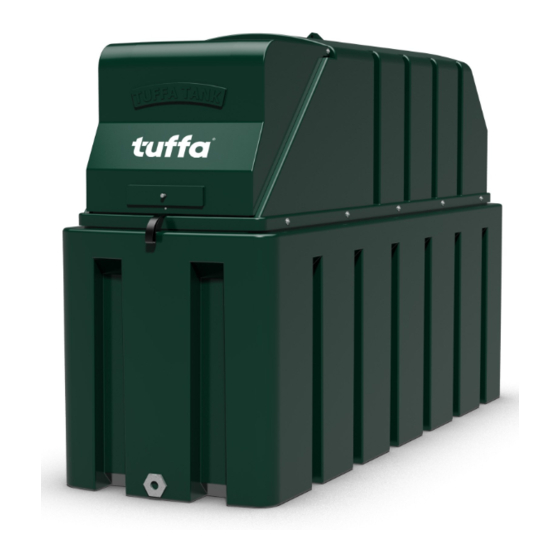

TUFFA TANKS 1350SL Installation, Operation And Servicing Manual
  1. Manuals
  2. Brands
  3. TUFFA TANKS Manuals
  4. Water Heater
  5. 1350SL
  6. Installation, operation and servicing manual

TUFFA TANKS 1350SL Installation, Operation And Servicing Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation, Operation and Servicing Manual Version 1.0.0
Models:
SINGLE SKIN: 1350SL | 1400V | 2500V | 2500H | 3500V | 6000V | 10000V | 15000V | 20000V
BUNDED: 1350SLB | 1400VB | 2500HB | 3500VB | 6000VB | 10000VB | 15000VB
FIRE PROTECTED: 1350SLBFP30 | 1400VBFP30 | 2500HBFP30 | 1350SLBFP60 | 1400VBFP60 | 2500HBFP60
TUFFA
OIL
TANKS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1350SL and is the answer not in the manual?

Questions and answers

Summary of Contents for TUFFA TANKS 1350SL

  • Page 1 Installation, Operation and Servicing Manual Version 1.0.0 Models: SINGLE SKIN: 1350SL | 1400V | 2500V | 2500H | 3500V | 6000V | 10000V | 15000V | 20000V BUNDED: 1350SLB | 1400VB | 2500HB | 3500VB | 6000VB | 10000VB | 15000VB...

  • Page 3: Table Of Contents

    Electrical wiring diagram Operation of the system 7.1 Using the system 7.2 Summary of main parts 1350SLB / 1400VB / 2500HB 7.3 Summary of main parts 1350SLBFP / 1400VBFP / 2500HBFP 7.4 Summary of main parts 3500VB / 6000VB / 10000VB / 15000VB 7.5 Summary of main parts 1350SL / 1400V / 2500H / 2500V 7.6 Summary of main parts 3500V / 6000V / 10000V / 15000V / 20000V 7.7 Filling Tuffa fuel tank 7.7 Equipment controls Maintenance of the TUFFA TANKS 8.1 System maintenance tasks 8.2 Inspection by competent person 8.3 Internal examination and cleaning 8.4 Troubleshooting 8.5 Tank maintenance record 8.6 Fuel delivery log Warranty Contact Guarantee Registration...

  • Page 4: Introduction

    1. INTRODUCTION | 2. CONDITIONS OF USE 1. Introduction This manual contains specific instructions and information relating to the installation, operation and maintenance of Tuffa Tanks systems. 2. Conditions of use • Read this manual before installing this system. • Tuffa Tanks accepts no liability for personal injury or property damage resulting from working on or adjusting the equipment incorrectly or without authorisation. • Tuffa Tanks accepts no liability for direct, indirect, incidental, special, or consequential damages resulting from failure to follow any warnings, instructions, and procedures set out in this manual. • Tuffa Tanks reserves the right to change the specifications of its products or the information in this manual without necessarily notifying its users. • Variations in installation and operating conditions may affect the Tuffa Tank systems performance. Tuffa Tanks makes no representations or warranties concerning the performance of the tank system under the operating conditions prevailing at the installation. • Only parts supplied by or approved by Tuffa Tanks must be used and no unauthorised modifications to the hardware or software should be made. The use of non-approved parts or modifications will void all warranties and approvals and could lead to hazardous safety conditions. • Unless otherwise noted, references to brand names, product names, or trademarks constitute the intellectual property of the owner thereof.

  • Page 5: Safety

    3. SAFETY 3. Safety PLEASE READ THIS MANUAL CAREFULLY BEFORE USE & COMPLY WITH ALL INSTRUCTIONS BELOW. THIS MANUAL SHOULD BE KEPT WITH THE EQUIPMENT AT ALL TIMES. 1. The major hazard involved with installing and operating the unit is electrical shock. This hazard can be avoided if you adhere to the procedures in this manual and exercise all due care. 2. Installation and use of this product should only be carried out by properly trained and approved personnel. 3. Please refer to storage media MSDS which should be supplied by the proprietor of this system which will detail the PPE required for handling and emergency procedures. 4. The user of this product is responsible for the safe and correct use of this product. 5. This product is only suitable for storage and/or dispensing of the liquid media referenced at the point of sale.

  • Page 6: Product Description

    4. PRODUCT DESCRIPTION 4. Product description Tuffa’s oil tanks are designed solely for the storage of fuels. The static bunded systems enable safe fuel storage in an outdoor environment and ensures you meet all stringent fuel storage regulations. The high standard of specification ensures optimum safety and functionality. This product’s standard specification is not approved for the resale of fuel. 4.1 Product identification The identification plate is located within the cabinet of each system and will detail the capacity, serial number, model number and year of manufacture.

  • Page 7: Product Specification

    4. PRODUCT DESCRIPTION 4.2 Product specification 4.2.1 Single skin tanks 1350SL 1400V 2500H 2500V 3500V 6000V 10000V 15000V 20000V Capacity 1350 1400 2500 2500 3500 6000 10000 15000 20000 litres litres litres litres litres litres litres litres litres Length 2060 mm - 2105 mm -...
  • Page 8 4. PRODUCT DESCRIPTION 4.2.3 Bunded tanks (no cabinet) 1350SLB 1400VB 2500HB 3500VB 6000VB 10000VB 15000VB Capacity 1350 litres 1400 litres 2500 litres 3500 litres 6000 litres 10000 litres 15000 litres Length 2680mm 2840mm Width 870mm 1520mm Diameter 1585mm 2013mm 2550mm 2890mm 2890mm Height 1665mm 1740mm 1630mm 2520mm 2585mm 2590mm 3500mm...

  • Page 9: Product Dimensions

    4. PRODUCT DESCRIPTION Product dimensions 1350SL 2060 mm 670 mm 1400V DESIGNED BY CHECKED BY APPROVED BY DATE MATERIAL DATE J Shenton 11/06/2020 10/06/2020 Rob Smith J Shenton LLDPE 1350 SINGLE SKIN ISSUE SHEET 1 / 1 DESIGNED BY CHECKED BY...
  • Page 10 4. PRODUCT DESCRIPTION 2500H 2105 mm 1255 mm DESIGNED BY CHECKED BY APPROVED BY DATE MATERIAL DATE 2500V J Shenton 11/06/2020 10/06/2020 Rob Smith J Shenton LLDPE 2500H SINGLE SKIN ISSUE SHEET 1 / 1 DESIGNED BY CHECKED BY APPROVED BY DATE MATERIAL DATE...
  • Page 11 4. PRODUCT DESCRIPTION 3500V 6000V DESIGNED BY CHECKED BY APPROVED BY DATE MATERIAL DATE J Shenton 11/06/2020 10/06/2020 Rob Smith J Shenton LLDPE 3500 SINGLE SKIN ISSUE SHEET 1 / 1 MATERIAL DESIGNED BY CHECKED BY APPROVED BY DATE DATE J Shenton 11/06/2020 10/06/2020 Rob Smith...
  • Page 12 4. PRODUCT DESCRIPTION 10000V DESIGNED BY CHECKED BY APPROVED BY DATE MATERIAL DATE 15000V J Shenton 11/06/2020 10/06/2020 Rob Smith J Shenton LLDPE 10000 SINGLE SKIN ISSUE SHEET 1 / 1 DESIGNED BY CHECKED BY APPROVED BY DATE MATERIAL DATE J Shenton 11/06/2020 10/06/2020 Rob Smith...
  • Page 13 4. PRODUCT DESCRIPTION 20000V DESIGNED BY CHECKED BY APPROVED BY DATE MATERIAL DATE J Shenton 11/06/2020 10/06/2020 Rob Smith J Shenton LLDPE 20000 SINGLE SKIN ISSUE SHEET 1 / 1...
  • Page 14 4. PRODUCT DESCRIPTION 1350SLB | 1350SLBFP30 | 1350SLBFP60 2680 mm 870 mm DESIGNED BY CHECKED BY APPROVED BY DATE MATERIAL DATE J Shenton 11/06/2020 10/06/2020 Rob Smith J Shenton LLDPE 1400VB | 1400VBFP30 | 1400VBFP60 1350 BUNDED ISSUE SHEET 1 / 1 DESIGNED BY CHECKED BY APPROVED BY...
  • Page 15 4. PRODUCT DESCRIPTION 2500HB | 2500HBFP30 | 2500HBFP60 2840 mm 1520 mm 3500VB (with cabinet) MATERIAL DESIGNED BY CHECKED BY APPROVED BY DATE DATE J Shenton 11/06/2020 10/06/2020 Rob Smith J Shenton LLDPE 2500 BUNDED ISSUE SHEET 1 / 1 1200 mm 2613 mm DESIGNED BY...
  • Page 16 4. PRODUCT DESCRIPTION 6000VB (with cabinet) 1200 mm 3150 mm DESIGNED BY CHECKED BY APPROVED BY DATE MATERIAL DATE 10000VB (with cabinet) J Shenton 21/10/2020 21/10/2020 Rob Smith J Shenton LLDPE 6000 BUNDED WITH CABINET ISSUE SHEET 1 / 1 1200 mm 3490 mm DATE...
  • Page 17 4. PRODUCT DESCRIPTION 15000VB (with cabinet) 1200 mm 3460 mm DESIGNED BY CHECKED BY APPROVED BY DATE MATERIAL DATE J Shenton 11/06/2020 10/06/2020 Rob Smith J Shenton LLDPE 15000 BUNDED WITH CABINET ISSUE SHEET 1 / 1...

  • Page 18: Transport & Storage

    5. TRANSPORT & STORAGE 5. Transport & storage DO NOT TRANSPORT WITH LIQUID INSIDE THE TANK During transportation the flip lid and cabinet doors are secured by 1 x R clip. The R clip must be installed prior to transportation. Loading and off-loading must be carried out by a competent person using suitable rated and maintained equipment, either a forklift with extended forks/tines or a crane. If lifting slings are used, they must be attached to the lifting points as shown in the pictures below using a steel lifting eye insert. If lifting from below use a suitable rated forklift with extended forks. If lifting from above use a suitable rating lifting slings / chains. 1350SLB | 1350SLBFP30 | 1350SLBFP60 | 2500HB | 2500HBFP30 | 2500HBFP60 - Lift with main lifting eye highlighted in red in the image below or forklift from the side. 1400VB | 1400VBFP30 | 1400VBFP60 | 3500VB | 6000VB | 10000VB | 15000VB - Lift with x4 equal spaced lifting brackets as highlighted in red in the image below or forklift from one side using a ratchet strap to secure the tank to the forklift mast. Tuffa fuel tanks must never be pushed or rolled. During transport and storage, the flip lid or cabinet doors must be closed and secured. Loading, transport and storage areas must be smooth and free of sharp edges.

  • Page 19: Installation & Commissioning

    6. INSTALLATION & COMMISSIONING 6. Installation & commissioning 6.1 Installation guidelines The proprietor of the Tuffa fuel tank is responsible for complying with all legal requirements relating to the installation and use of this product, as well as the guidelines issued by local firefighting authorities and environmental authorities. Once the Tuffa fuel tank has been received on site, check that no damage has occurred while in transit. Locate the tank in the desired location using either a crane, forklift or rollers. Please refer to the British Standard guidelines for instructions on specific intallation requirements for your type of location and use. 6.2 System installation System foundation The system must be installed and fully supported on a smooth levelled concrete base built in accordance with good building standards and engineering principles. It is recommended that tanks be installed on a concrete base at least 100mm thick which extends out 300mm on all sides of the tank. Please refer to diagram below: 6.3 System location The location of the system should be positioned by a road or passing with sufficient width, and loading capacity to accommodate a tanker delivering fuel. Provision for the U-turn of a tanker should be considered. Potential obstacles in the form of tree branches, high voltage lines, or parked vehicles must be minimized. The space around the system should allow free and collision-free movement of served vehicles. Provision should be made to protect tank from impact damage.

  • Page 20: Electrical Requirements

    6. INSTALLATION & COMMISSIONING 6.4 Electrical requirements (for 3500 litres and above models only containing mains supply equipment) Only a suitably qualified electrician according to applicable regulations may work on the elec- tric wiring installation. The system components under service, maintenance, and repair work must be disconnected from the power supply before any work in undertaken. System power requirements: • 220 - 240 Volts, 50 Hz +/- 10% • 13 amp circuit breaker recommended • Power cable recommendation: 3 Core 2.5mm flex cable 6.5 Electrical wiring diagram 6.5.1 3500VB / 6000VB / 10000VB / 15000VB PUMP SWITCH MCB1 6A PUMP MCB2 2A GAUGE 3C X 0.5 @ 1MTR LONG Dunford & Pearson PANEL LAYOUT...

  • Page 21: Operation Of The System

    7. OPERATION OF THE SYSTEM Operation of the system The system and its components are intended for fuel only and for the purposes described below. Use of this system in a means other than described below is regarded as mis-use of the system, the user of the system will be liable for any defects that occur due to its unintended use. 7.1 Using the system The operation and maintenance personnel must be suitably trained to use the system, the user must make sure they fully understand the operation and maintenance sections of this manual. 7.2 Summary of main parts 1350SLB / 1400VB / 2500HB Bunded oil tank Vent Clock Gauge Fill Point Watchman (if selected) Inspection Hatch...
  • Page 22 7. OPERATION OF THE SYSTEM Bunded oil tank (top outlet) Vent Clock Gauge Fill Point Watchman (if selected) Inspection Hatch Top Outlet...

  • Page 23: Summary Of Main Parts 1350Slbfp / 1400Vbfp / 2500Hbfp

    7. OPERATION OF THE SYSTEM 7.3 Summary of main parts 1350SLBFP / 1400VBFP / 2500HBFP Fire protected oil tank Spark Clock Gauge Arrestor Vent Watchman Fire Blanket Fill Point Bottom Outlet Oil filter valve assembly (bottom outlet models only)
  • Page 24 7. OPERATION OF THE SYSTEM Fire protected tank (top outlet) Spark Clock Gauge Arrestor Vent Watchman Top Outlet Fire Blanket Fill Point...

  • Page 25: Summary Of Main Parts 3500Vb / 6000Vb / 10000Vb / 15000Vb

    7. OPERATION OF THE SYSTEM 7.4 Summary of main parts 3500VB / 6000VB / 10000VB / 15000VB Level Gauge & Mains Junction Tank Alarm Fill Point...
  • Page 26 7. OPERATION OF THE SYSTEM 7.4 Summary of main parts 3500VB / 6000VB / 10000VB / 15000VB (230V) Level Gauge & Mains Junction Tank Alarm Fill Point...

  • Page 27: Summary Of Main Parts 1350Sl / 1400V / 2500H / 2500V

    7. OPERATION OF THE SYSTEM 7.5 Summary of main parts 1350SL / 1400V / 2500H / 2500V Vent Fill Point Clock Gauge Inspection Hatch Bottom Outlet...

  • Page 28: Summary Of Main Parts 3500V / 6000V / 10000V / 15000V/ 20000V

    7. OPERATION OF THE SYSTEM 7.6 Summary of main parts 3500V / 6000V / 10000V / 15000V/ 20000V Vent Inspection Hatch Watchman Fill Point Bottom Outlet...

  • Page 29: Filling Tuffa Fuel Tank

    7. OPERATION OF THE SYSTEM 7.7 Filling Tuffa fuel tank 1. Filling should be performed only under constant supervision of an authorised person. 2. This tank can only be filled by a tanker equipped with a 2” female BSP coupling. 3. On 3500 / 6000 / 10000 / 15000 models before filling the tank with fuel, please check the level of the tank and make note of the tank level before filling, ensure the high-level alarm indicator functions correctly. 4. Fit tanker delivery hose to 2” BSP fill coupling on tank. 5. Engage tanker pump and begin to fill. Stop filling when desired amount has been dispensed into tank, or when high-level indicator is activated. 6. During the tanker fill always observe tank level gauge throughout the duration of the filling process. The tanker driver must observe the tank being filled at all times during this process. 7. Once complete disconnect delivery hose from tank coupling.

  • Page 30: Equipment Controls

    7. OPERATION OF THE SYSTEM 7.8 Equipment controls A. Tuffa FMS gauge and bund alarm (230V) - 3500 litre models and above The Fuel Level Monitoring System is a 240v combined digital tank level indicator and bund and high-level alarm that is designed to provide both visual and audible alarms whenever a predetermined level in a storage tank is reached. The FMS gives a content readout in both litres and a percentage. a. Full alarm Activation of this alarm indicates that the tank is full. This alarm is shown through visual LED’s and audible siren. Note: This audible and visual alarm will remain triggered for a short period of time after it sounds. The audible can be muted using the mute button on the keypad. THE PUMP WILL CONTINUE TO DISPENSE IN THIS ALARM MODE. b. High level alarm Activation of this alarm indicates the tank has reached a high capacity and close attention must be paid to the diesel inside the tank. This alarm is shown through visual LED’s and audible siren. Note: This audible and visual alarm will remain triggered for a short period of time after it sounds. The audible can be muted using the mute button on the keypad. THE PUMP WILL CONTINUE TO DISPENSE IN THIS ALARM MODE.
  • Page 31 7. OPERATION OF THE SYSTEM c. Low level alarm Activation of this alarm indicates the tank has reached a low level. This alarm is shown through visual LED’s and audible siren. Note: This audible and visual alarm will remain triggered for a short period of time after it sounds. The audible can be muted using the mute button on the keypad. THE PUMP WILL CONTINUE TO DISPENSE IN THIS ALARM MODE. d. Empty alarm Activation of this alarm indicates the tank is empty and needs filling. This alarm is shown through visual LED’s and audible siren. Note: This audible and visual alarm will remain triggered for a short period of time after it sounds. The audible can be muted using the mute button on the keypad. THE PUMP WILL CONTINUE TO DISPENSE IN THIS ALARM MODE. e. Bund alarm Activation of this alarm indicates that there is product in the bund cavity. This alarm is shown through visual LED’s and audible siren. Note: This audible and visual alarm will remain triggered constantly until muted or until the product is removed. The audible can be muted using the mute button on the keypad. In the event of this it is advised the bund cavity is checked and drained as soon as practicable. f. FMS Wiring diagram...
  • Page 32 7. OPERATION OF THE SYSTEM B. Watchman Sonic 1. CHECK LEVEL, DISTANCE AND HEIGHT Ensure before you start your install that the tank the WatchmanSonic is to be fitted to is: 1. On a flat level base. 2. Within a 200 metre range from receiver position. 3. A maximum actual tank height of 3 metres. 50 metre effective range (200 metre clear line of sight). 4. Tank must be fitted in accordance with manufacturers guidelines & instructions. NB: Any radio frequency signal may be seriously inhibited if positioned underground. Please check that the transmitter / receiver link works in the desired location before installation. 2. TANK PREPARATION Please note- it is important to keep all items dry during installation. A) PRE-DRILLED TANKS. There may already be a 32mm pre-drilled opening in the tank top and possibly a tube fitted. If so, remove the cover by undoing the two screws holding it in place, and dispose of the tube in accordance with local government guidelines. NB – Ensure the hole is a minimum DIAMETER 30mm. Ensure that the space beneath the WatchmanSonic unit is free of any obstacles and that the ltrasonic beam path is clear of obstructions. (See Picture 2) B) UN-DRILLED TANKS. Where drilling is required to fit the transmitter, choose a flat level point that is at the same level and no lower than any opening at the top of the tank (filling point etc.). (See Picture 3)
  • Page 33 7. OPERATION OF THE SYSTEM The Transmitter can’t sit at an angle as this gives an incorrect level reading on the receiver. Take care not to choose an area on which water could gather i.e. a dent/depression or a position directly above any restricted area inside the tank. (See Picture 4) NB: For tanks with window corrugations or internal braces please ensure that the WatchmanSonic is not positioned above or within 15 cm of the area of the WINDOW or the edge of the tank. (See Picture 5). Ensure that the sonic path is clear to the bottom of the tank as per pic 2. Drill a hole in the place that you have selected on the tank’s top surface using a 32mm hole-saw. (shown in Picture 6) Warning: If you are unsure if you should drill the tank please check with the tank manufacturer first. 3. FITTING TRANSMITTER BASE For tanks with pre-drilled holes. Ensure guidelines from points 4 & 5 are adhered to. • Remove cap from the hole (Picture 7) and insert transmitter base, ensuring the weather seal is securely in place (Picture 8 & 9). • Tighten the WatchmanSonic base (Part E) on to the tank with 2 stainless steel self-tapping, counter sunkscrews supplied (Part C). Do not over tighten!
  • Page 34 7. OPERATION OF THE SYSTEM 4. DEFINE THE SONIC HEIGHT Accurately measure the sonic height making note of this measurement. The permissible maximum tank height is 3 metres from the base of your tank to the position of the WatchmanSonic (which should be no lower than the fill point). (Seen in Picture 10). • Height does not include the base/piers which tank sits on. 5. SETTING THE SWITCHES ON THE RECEIVER Using the tank height chart (see section 9), read across to the relevant multi switch setting using tank measurements you took down earlier. The multi switches are located in a recess at the back of the receiver above the pins. Using a screwdriver or tip of a ballpoint pen, flip the relevant switch (e.g.) upwards (= ON). NOTE: Switches 1 & 2 are factory set switches and are no relevance to the end user. If you wish to set the audible ring feature the Switch1 needs to be moved up. Switch one if set in the on (up) position will cause the unit to bleep in the event of a low level reading. 6. MATCHING RECEIVER AND TRANSMITTER You should match the receiver (Part A) with the transmitter (Part D) so that the system code is unique to your tank. Plug receiver into a suitable and convenient electrical socket and switch on.
  • Page 35 7. OPERATION OF THE SYSTEM Hold the transmitter against the receiver right hand side, as shown (Picture 13), so that the white dot on the transmitter is touching the black dot on the receiver (important!) for about 20 seconds to allow unique code to be transferred. Bars will increase up the display screen and you will hear a clicking sound. When all 10 bars are shown they will flash to indicate that the unique code is transferred. When matched the transmitter must immediately be placed on the tank. • If you are installing more than one WatchmanSonic unit please wait 15 minutes between each matching. 7. FITTING THE TRANSMITTER TO THE BASE Screw the transmitter (Part D) into the base (Part E). Ensure the transmitter is vertical on top of the tank and level. Ensure that the WatchmanSonic unit is screwed correctly into the base and that the threads have not crossed, to give a secure seal.
  • Page 36 7. OPERATION OF THE SYSTEM C. Hytek battery bund / overfill alarm Battery version - Battery 3 channel alarm. - Each channel can be used as an overfill, low level or bund alarm. - High power alarm sounder. - No zenon beacon, but individual channel LED’s. - Test button checks float switches as well as batteries & sounder. - Battery life depends on number of test & alarm incidents. Power status BATTERY VERSION: The Battery LED will flash every 2 seconds to indicate that there is battery power to the unit. If the battery charge is too low, then the sounder will activate intermittently to indicate this. Alarm condition When a high or low-level alarm condition occurs the corresponding channel LED on the tank alarm lid is illuminated and the sounder/beacon will activate. The external relay will also be activated. Float switch fault indication If any of the channel LEDs flashes repeatedly then this indicates a fault with the float switch. Alarm mute Pressing the mute button for 1.5 seconds will silence the sounder when an alarm condition is occurring, the beacon will continue to flash until the alarm condition has been rectified. This will not de-activate any relays (if fitted). The relays will only be de-activated when float switch returns to its normal position. If the mute button is not depressed the sounder will silence after 20 minutes leaving the beacon and channel LED on. The channel LED will remain on until the alarm condition has been rectified (float switch returns to its normal position). Alarm test To test the Tank Alarm, push and hold the test button on the lid. If the Tank Alarm is functioning correctly the sounder should activate, the beacon will flash (if fitted) and all activated channel LEDs will illuminate.
  • Page 37 7. OPERATION OF THE SYSTEM If any of the channel LEDs flashes repeatedly then this indicates a fault with the float switch. Battery version: If no sounder is heard and no channel LED’s illuminate, check batteries and change as necessary. NB: Always push the Tank Alarm test button before filling the tank. Fitting dimensions...
  • Page 38 7. OPERATION OF THE SYSTEM D. Tank top Installing the Tanktop THE TANKTOP MUST BE FITTED IN CONJUNCTION WITH A DEAERATOR OR AN OIL LIFTER Fitting on a Plastic Tank (If the plastic tank has a moulded 1” insert, use the steel tank fitting instructions above). 1. Drill a 30mm hole in a flat area on top of the primary tank. 2. Thread the float and suction pipe through the 30mm hole. 3. Orientate the 10mm hydraulic or compression fitting to the desired pipe direction, screw the 3 legs down with the screws provided. 4. Cut the 10mm oil line to be used, with a tube cutter NOT a hacksaw. 5. Insert the 10mm pipe into the hydraulic or compression fitting (if using compression fittings make sure a support tube is used) making sure the pipe is fully home. 6. Having fitted all ancillary equipment in the line (using support tubes in all joints) to the pressure jet burner (including a de-aerator and the bypass screw in the burner pump) fire up the burner. The burner should be able to pull the fuel through but if the pipe is long with a lift to the burner the prime button can be pressed whilst the burner is running to open all the Tanktop valves. This will bypass the anti-siphon valve making it easier for the burner to prime the line. TIP: Always use support tubes TM4172 inside soft copper oil lines to ensure air tight joints when using compression joints. Fitting on a Steel Tank 1. With the back nut still on, dress the Tanktop 1” BSP thread with PTFE tape.Thread the float and suction pipe through the 1” BSPP nipple on the top of the tank and screw home. 2. Position the Tanktop so the oil line fitting is pointing in the desired direction and nip the back nut down onto the tank nipple.
  • Page 39 7. OPERATION OF THE SYSTEM Replacing the Tanktop Filter 1. If fitted remove Tanktop cover. 2. Remove the three M4 socket cap head bolts. 3. * Using a flat screw driver insert into slot above the oil line fitting and gently twist to separate the filter housing. 4. Remove the two O-rings and the filter. 5. Fit the new large O-ring from the filter kit. 6. Fit the new filter from the filter kit. 7. Fit the new small O-ring ring from the filter kit. 8. Replace the top back into the body ensuring that the screw driver slot is over the oil line fitting. 9. Refit the three M4 socket cap head. * NOTE: This filter chamber will be full of fuel.

  • Page 40: Maintenance Of The Tuffa Tanks

    8. MAINTENANCE OF THE TUFFA TANKS 8. Maintenance of the TUFFA TANKS Keep this manual stored in a place of use so it can be obtained for future reference. All persons who install, commission, maintain, and operate the system must be deemed competent by their employers and have the adequate knowledge and training required to carry out any required tasks which are recommended by this manual, it is recommended that any persons carrying out work on the system have fully read and understood the instructions set out by this manual. It is advised that no changes nor conversions with potential impact on safety may be performed on this system, any spare parts which are used must comply with the technical requirements which are defined in this manual or directly by the manufacturer. ATTENTION Please make sure prior to any maintenance work that power supply is turned OFF and that there is not an inadvertent chance to reconnect the system to power supply. WARNING System warranty will become void if any repairs are made by technicians not authorised by the manufacturer, the same applies to works with hazardous or potentially hazardous equipment. ATTENTION Do not use jet cleaners to clean the system. You can clean the system with water and household cleaners. Do not use an excessive amount of water when cleaning near any electrical items as this can cause a short circuit to occur potentially permanently damaging the equipment.

  • Page 41: System Maintenance Tasks

    8. MAINTENANCE OF THE TUFFA TANKS 8.1 System maintenance tasks Activity Frequency of Task Keep equipment in good working order by returning to its original position After every use Visually inspect operation of gauge equipment Weekly Visually inspect exterior condition of tank Monthly Physically check bund alarm by activating the float switch in bund cavity 3 Months (audible alarm) Check electrical cables and cable connection points 3 Months Visually inspect and if required maintain the tank id plate and warning labels 3 Months Check and replace filter if necessary 3-6 Months Physically check fixings and bracket stability 6 Months Visually inspect inner tank and bund cavity 6 Months 8.2 Inspection by competent person Inspections should be undertaken by a competent person that is receiving a delivery of product on every fill prior to and whilst filling. This inspection should include: • The fill point arrangement for soundness and leaks...

  • Page 42: Troubleshooting

    8. MAINTENANCE OF THE TUFFA TANKS 8.4 Troubleshooting Symptom Possible Causes Solutions No power 1. Local distribution board fuse 1. Check local distribution board RCD 2. Power cable damaged 2. Check condition of power cables 3. Power cable connection broken 3. Check power cable connections 4.
  • Page 43 8. MAINTENANCE OF THE TUFFA TANKS 8.4 Troubleshooting Symptom Possible Causes Solutions Inner tank has lifted 1. Fuel inside bund is causing inner tank to 1. Refer to manufacturer up and ruptured float bund lid Tank exterior 1. Impact from external force 1.
  • Page 44 8. MAINTENANCE OF THE TUFFA TANKS 8.4 Troubleshooting Watchman Sonic - Technical Information TRANSMISSION If the receiver detects a transmission not heard for a long time the symbol NOT HEARD outlined in Pic 16 is displayed on the LCD. This starts approximately 12 hours from the last received good signal. (Shown in picture 16). To rectify this re-site the receiver in a location where the transmission is heard. Rematch receiver and transmitter as per point 6. NO ECHO If the receiver detects a No Echo Condition the following message is displayed CONDITION on the LCD. Warning triangle constantly flashing plus indication bar 5 on. (Shown in picture 17). To rectify this situation check that the transmitter unit is correctly positioned on the tank and no interference is present from a tank wall, corrugation or window.

  • Page 45: Tank Maintenance Record

    8. MAINTENANCE OF THE TUFFA TANKS 8.5 Tank maintenance record Date Description of works Comments Site representative / contractor details...
  • Page 46 8. MAINTENANCE OF THE TUFFA TANKS 8.5 Tank maintenance record Date Description of works Comments Site representative / contractor details...

  • Page 47: Fuel Delivery Log

    8. MAINTENANCE OF THE TUFFA TANKS 8.6 Fuel delivery log Date of Time Amount Tanker driver Drivers comments delivery delivered signature (litres)
  • Page 48 8. MAINTENANCE OF THE TUFFA TANKS 8.6 Fuel delivery log Date of Time Amount Tanker driver Drivers comments delivery delivered signature (litres)

  • Page 49: Warranty

    9. WARRANTY 9. Warranty Subject to the conditions below, your product is supplied with a warranty against material defects in workmanship or materials from the date of delivery or invoice Tax point date, whichever is earliest for the following warranty period: PRODUCT WARRANTY PERIOD IF WARRANTY PERIOD IF REGISTERED NOT REGISTERED Single skin 2 years 12 months Bunded 10 years 5 years ACCESSORIES WARRANTY PERIOD Ancillary equipment and pipe work 1 year The warranty is subject to the following conditions: To qualify for the extended warranty period this product must be registered and installed by a registered competent person in accordance with prevailing statutory requirements. The period of the warranty will commence from the date of delivery or invoice Tax point date, whichever is earliest. The warranty is provided to the original purchaser only. Proof of purchase and evidence of annual inspection by a registered competent person will be required in the event of a claim. To obtain the extended warranty period for your product, you must register the purchase and installation of your product with us within 21 days from date of purchase. To register, please complete and submit our registration form. Registration forms can be obtained and submitted online at www.tuffa.co.uk. Failure to register the purchase and installation of your product (or incomplete registration) within the 21 day period will mean that the shorter warranty period (above) only will apply to your product. During the warranty period, any component of your product which is proved to contain any material defect in workmanship or materials will be exchanged or repaired, at our sole discretion, by us free of charge for material or labour. In respect of your product, the warranty does not cover (and we will not accept responsibility for) any consumable items, any component which has not been manufactured by us (please refer to the manufacturer’s warranty supplied with the relevant component), fair wear and tear, or any fault: • in respect of any component not forming part of your product; or...

  • Page 50: Contact

    10. CONTACT | 11. GUARANTEE REGISTRATION • caused by alteration or repair by you or by a third party who is not one of our authorised repairers; or • caused by non-observance of either any applicable statutory requirement or any of the instructions contained in the installation and operating instructions appropriate to your product, and in this respect, we would draw particular attention to the fact that your product must not be used in conditions which are either below -17°C or which are above 35°C without protection from exposure to direct sunlight. Your product has been used only for the purpose for which it is designed, and that any terms and conditions held with your installer have also been adhered to. To the maximum extent permitted by UK law: • the warranty is given in lieu of all other warranties, express or implied by statute or common law, including implied warranties or conditions of satisfactory quality and fitness for a particular purpose, provided that this warranty is in addition to your legal rights in relation to goods that are faulty or not as described; and • we shall not in any circumstances be liable to you or any other party, whether in contract, tort (including for negligence and breach of statutory duty howsoever arising), misrepresentation (whether innocent or negligent), restitution or otherwise, for any special, indirect or consequential loss or damage. 10. Contact Tuffa UK Limited Tel: +44 (0) 1889 567700 Dovefields Industrial Estate Web: www.tuffa.co.uk Derby Road Email: sales@tuffa.co.uk Uttoxeter Staffordshire ST14 8SW 11. Guarantee registration To register your tank warranty please visit the link to our website as below. The guarantee card must be completed online within 21 days of the date of the tank delivery to the first purchaser (namely the person or entity buying direct from Tuffa UK Limited).
