Summary of Contents for Solt GGSWC193

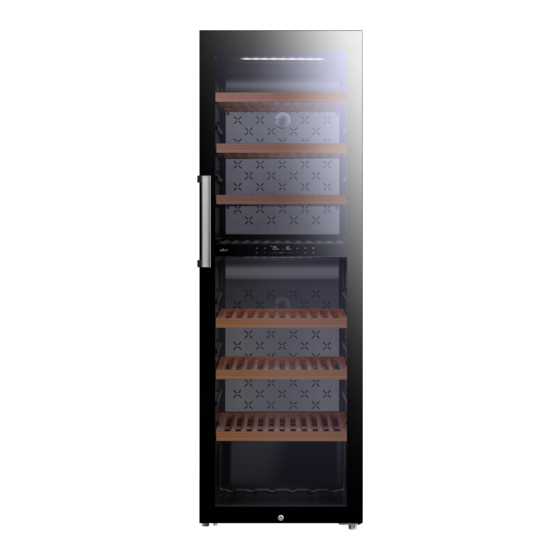

- Page 1 MODEL GGSWC193 V 1.0 | 0821 User Manual 193 Bottle Dual Zone Wine Cabinet...
- Page 2 Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE PRODUCT DETAILS MODEL NO.
-
Page 3: Table Of Contents
2 Purchase Details Contents 5 Welcome 6 General Safety Instructions 10 Your Wine Cabinet 11 Getting Started 12 Installation 18 Operating Instructions 20 Bottle Arrangement 21 Tips for Wine Storage 22 Cleaning & Maintenance 23 FAQ's & Troubleshooting 24 Technical Specifications 25 Attach Your Receipt 26 Warranty Information Customer Care... - Page 4 This page is intentionally left blank...
-
Page 5: Welcome
You can use our online Support Centre at anytime by Sôlt — visiting http://support.residentiagroup.com.au, or you can Online. contact us via calling us on 1300 11 HELP (4357). www.solt.house — Instagram. It is important that you read through the following use and /solt.house —... -
Page 6: General Safety Instructions
You may not be able to claim on the Solt manufacturer’s In Queensland, the authorised service person MUST hold warranty in the event that your product fault is due to a Gas Work Authorisation for hydrocarbon refrigerants failure to adhere to this manual. - Page 7 WARNING: Do not use mechanical devices or other • Earthing: This appliance should be properly earthed means to accelerate the defrosting process, other than for your safety. The power cord of this appliance those recommended by the manufacturer. is equipped with a three-prong plug for use in •...
- Page 8 General Safety Instructions (Cont.) INSTALLATION Children: Do not give packaging and other components Heavy: This appliance is heavy, take care when moving to children to play with. The bending board and it. To avoid back or other injury, consider a two person plastic film may lead to suffocation! Children should lift or mechanical aid when installing it.
- Page 9 WARNINGS RELATED TO PLACING ITEMS • Objects: Do not place heavy objects on the top of the Wine Cabinet considering that objects may fall when open or close the door, and accidental injuries might be caused. • Items in the cooler: Do not put flammable, explosive, volatile and highly corrosive items in the cooler to prevent damages to the product or fire accidents.
-
Page 10: Your Wine Cabinet
Your Wine Cabinet PRODUCT OVERVIEW Figure 1- Diagram of your Solt wine cabinet layout. Note: The diagram in Figure 1 above is for general reference only and your physical appliance may differ. Tip! We recommend that the upper and lower zones of your wine cabinet are set at 12ºC for improved energy efficiency. -
Page 11: Getting Started
Getting Started UNPACKING • Packaging materials: This appliance has been packaged to protect it against transportation damage. Remove all packaging materials from around and inside the appliance including the bottom cushions, foam pads, tapes inside the cooler, tear off the protective film on the door and the cooler body. Keep the original packaging carton and materials in a safe place. -
Page 12: Installation
Installation Floor surface: This appliance must be properly DO NOT install/use the appliance in the following positioned on a dry, sturdy, level surface that is strong locations/situations: enough to support it when it is fully loaded. Rotate left • In moist areas or areas of high humidity (i.e. or right to adjust the levelling feet if unstable. - Page 13 REVERSING THE DOOR If you would like to reverse the hinging of your Wine Cabinet door, please follow the steps below. Parts to be used when reversing the door: Table 1- Parts to be used when reversing the door.
- Page 14 Installation (Cont.) Follow these steps to reverse your Wine Cabinet door hinging. Important! The glass door is heavy and this process will require at least two able bodied people to safely undertake. Unscrew the two screws (1) holding the Upper Right Hinge Cover (2) in place. Also unscrew the one screw (4) securing the Top Cover (3) in place.
- Page 15 Take the Lower Left Hinge (10) from the accessory package and fix it into place using the 3 screws removed from the right side in step 4. Figure 7 – Reversing the door: Step 5. Remove the 2 screws (1) on the lower side of the door, remove the Door right limit (18) on the right side of the door, as well as the anti-collision block (19) installed on the left side.
- Page 16 Remove the humidification filter cover installed on the zone partition board (the filter cover clicks into place) and take out the humidification filter from its housing. Replace the filter purchased from Solt or an equivalent distributor and reinstall the filter cover.
- Page 17 This page is intentionally left blank...
-
Page 18: Operating Instructions
Operating Instructions TEMPERATURE CONTROL Figure 12 – Touch control panel. Note: Figure 12 above is for general reference only and your physical appliance may differ. Standby button Light button Temperature display for the upper zone Temperature display for the lower zone Increase button Decrease button Zone selector (Upper or Lower) - Page 19 This page is intentionally left blank...
-
Page 20: Bottle Arrangement
Bottle Arrangement BOTTLE ARRANGEMENT: • To maintain good air circulation in the cooler, do not let any bottles touch the back wall of wine cooler. • The bottle number here may be different from bottles in different shape and size. •... -
Page 21: Tips For Wine Storage
Tips for Wine Storage PRACTICAL WINE STORAGE TIPS • Do not store bottled wine in a box or case within the wine cabinet. • The cork of an old bottle should always be soaked in the wine when storing in a wine cabinet. Air space is not recommended between wine and cork. -
Page 22: Cleaning & Maintenance
Cleaning & Maintenance DISCONNECTING THE WINE COOLER Unplug power plug to disconnect the cooler. WHEN NOT USING YOUR WINE CABINET FOR A SHORT PERIOD OF TIME (14 DAYS) Simply unplug the unit. WHEN NOT USING YOUR WINE CABINET FOR A LONG PERIOD OF TIME (IE. IN STORAGE) •... -
Page 23: Faq's & Troubleshooting
FAQ's & Troubleshooting If an issue or fault is detected by your Wine Cabinet, an error code may be displayed on your display. These error codes are described below. Table 3 – Error codes and the fault descriptions. Table 4 – Troubleshooting guide for common issues. -
Page 24: Technical Specifications
Technical Specifications Model Code GGSWC193 Total Storage Volume 430L Dimensions (W x D x H) 595 x 705 x 1845mm 88.6kg / 95.4kg Weight (Net/Gross) Features 193 Bottle Storage Capacity 5 –18˚C Temperature Range Dual Zone Maintains Humidity at 50 –80%... -
Page 25: Attach Your Receipt
Attach your receipt to this page... -
Page 26: Warranty Information
Warranty Information WARRANTY TERMS & CONDITIONS IN THIS WARRANTY ‘acceptable quality’ as referred to in clause 10 of this This document sets out the terms and conditions of the warranty has the same meaning referred to in the product warranties for Residentia Group Appliances. It is ACL;... - Page 27 You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group in Australia, the Appliances come with a Group or its ASR. If you reside outside of the service guarantee by Residentia Group that cannot be area, you will bear the cost of: excluded under the Australian Consumer Law.
-
Page 28: 1300 11 4357 | E. Support@Residentiagroup.com.au
An initiative by Residentia Group T. 1300 11 4357 E. support@residentiagroup.com.au www.solt.house...
