Kobelco ACERA GEOSPEC SK 125SR Assembly Instructions

Undercarriage block assembly instructions
● Undercarriage
A-１ ４
A-4
Window
Slit
A-7
Important̶
be careful not to cut it off
A-１ ５
Overlap with A-14
A-１ ６
Roll into a cylinder Roll into a cylinder
A-１ ６
What to prepare
● Print-out paper
● Utility knife
● Ruler
● Ballpoint pen that can no longer write,
A-１ ２
● Adhesive (such as glue)
● Letʼs get creative with tools that you can
Slit
A-１ ３
Overlap with A-12
● Parts for swinging
Used when gluing to
the upper structure
skewer, be careful not to cut your
hands or feet!
skewer, be careful not to scratch the
table or floor!
understand, ask an adult for help.
(Special paper that is about as thick
as a postcard is best)
or stylus
use easily on your own, like tweezers,
a bamboo spatula, and bamboo skewers.
Slit
The front is the gluing tab
The back is the gluing tab
The front is the gluing tab,
but it will be used when assembling
The back is the gluing tab,
but it will be used when assembling
Cut-out line
Mountain fold
Valley fold
When using a utility knife or bamboo
When using a utility knife or bamboo
If the instructions are hard to

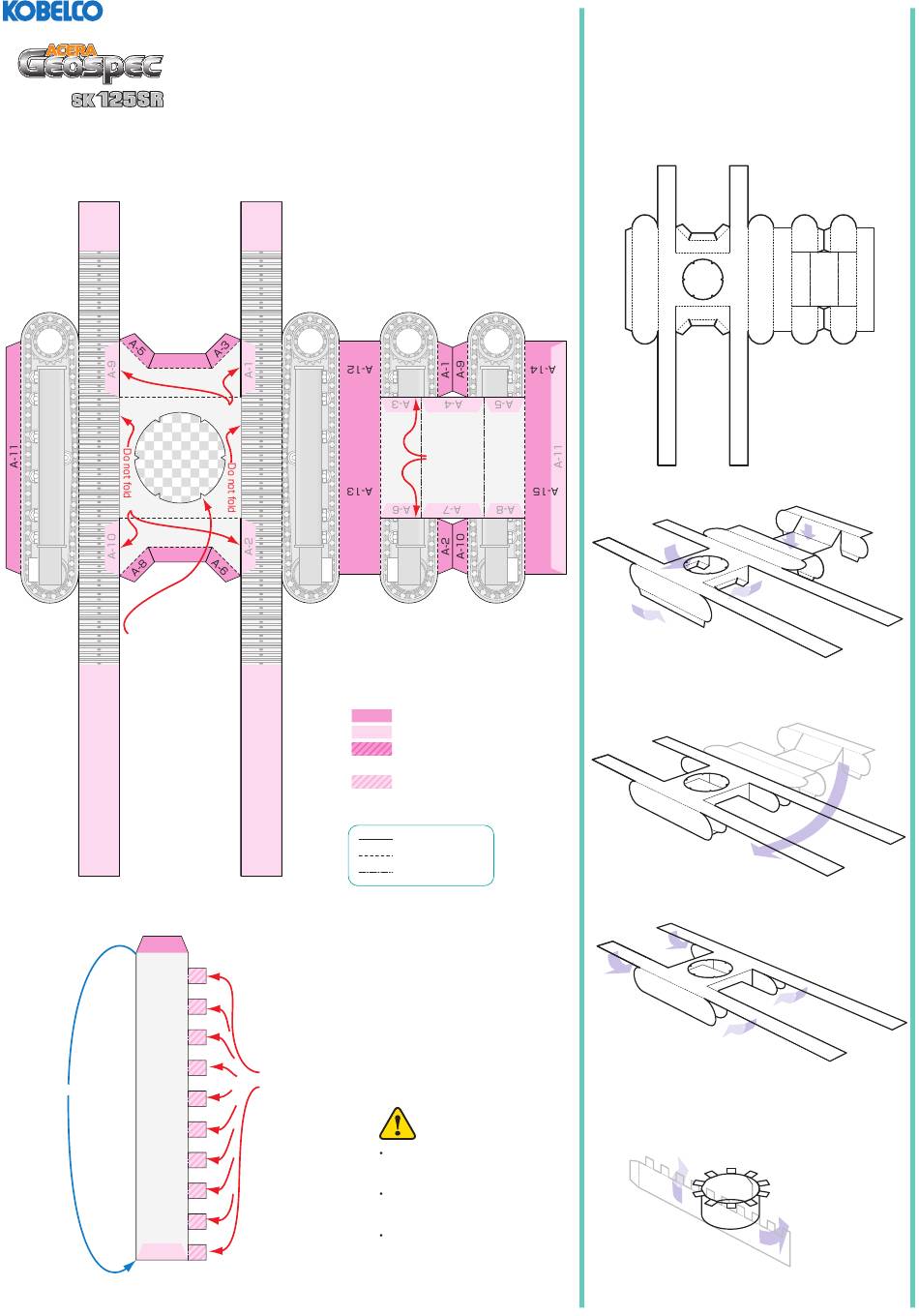

Assembly procedure
① Before cutting, use a ballpoint pen that can no longer
write, or a stylus, to press hard and make creases along
the lines of the mountain folds and valley folds first, so
that the paper can be folded easily.
After making the creases, carefully cut the paper along
the cutting lines with a cutter, etc. Cutting through will
be easier if you start by cutting the slits, window
openings, etc. first.
②
Make temporary creases for folding on the entire parts,
while paying attention to whether the folds are
mountain or valley folds.
③
Gluing will be easier if you paste in order starting from
the narrow portions and progressing toward the wider
portions.
Paste in the order of the numbers of the gluing tabs.
④
Lastly, paste it so that it wraps around the shoe.
Since it was made with a little extra length, overlap it
so that no white background is visible.
⑤
Prepare the part that connects the upper structure to
the undercarriage, too. Roll it into a cylinder and paste it
together accurately so that the white margin does not
stick out.
The square section attaches to the bottom of the upper
structure, so open it outwards and fold it.
