Q.P.T.I. QPI-1 User Manual

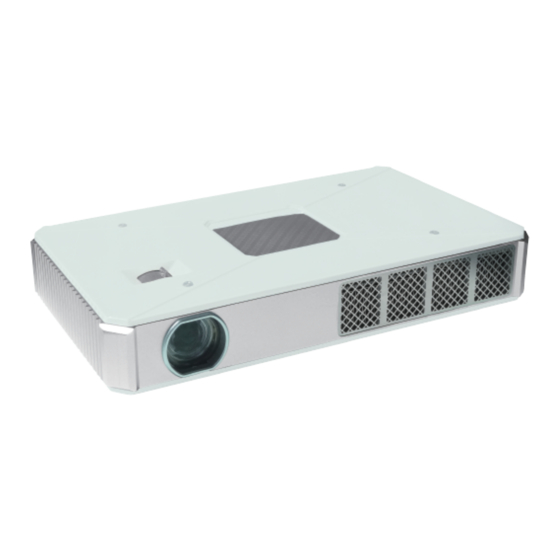

Android smart pc projector
Hide thumbs

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
4F., No.90, Xinhu 1st Rd., Neihu Dist.,
Taipei City 11494, Taiwan (R.O.C.)
Tel:+886-2-2790 6308
Fax:+886-2-2790 6318
http://www.qpointek.com/

Advertisement

loading
Need help?

Need help?

Do you have a question about the QPI-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Q.P.T.I. QPI-1

Summary of Contents for Q.P.T.I. QPI-1

  • Page 1 All manuals and user guides at all-guides.com 4F., No.90, Xinhu 1st Rd., Neihu Dist., Taipei City 11494, Taiwan (R.O.C.) Tel:+886-2-2790 6308 Fax:+886-2-2790 6318 http://www.qpointek.com/...
  • Page 2 All manuals and user guides at all-guides.com Android Smart PC Projector QPI-1 0.45 230LM User Manual...
  • Page 3 All manuals and user guides at all-guides.com Index Content Product Features Product Description Remote Control Android V ideo mode, HDMI Operation Instruction Language Setup, Input method setup W i-Fi Connection LAN Connection Bluetooth Connection Miracast Connection DLNA USB Devices connection instruction 10.1 Devices 10.2 Hard drive instruction Personalize...
  • Page 4 1.Content Before you start using your Q-Light Engine, please check the box have the following contents, if any are missing, please contact your retailer. 1.QPI-1 Projector 2.Adaptor 3.Remote Control 2. Product Features WIFI:Connect to Internet via W i-Fi connection for internet surfing, online videos, APP download etc.
  • Page 5 All manuals and user guides at all-guides.com 3.Product Description Name Function Projector W indow HD Projected W indow Adjustment focus Adjusting focus of the projector Touch-pad Mouse operation pad Left button Select and confirm Right button Return and Cancel Power Power on/off, standby mode DC 5V DC 5V input...
  • Page 6 All manuals and user guides at all-guides.com 4.Remote Control power hibernate mode confirm volume VGA mode mute rotate screen stop adjust brightness play/pause...
  • Page 7 All manuals and user guides at all-guides.com 5. Android V ideo mode, HDMI You can easily switch Android, V ideo, HDMI mode by using. 1. Remote Control. 2. Main Page function button ” ”.
  • Page 8 All manuals and user guides at all-guides.com 6. Operation Instruction 6.1 Start up 1. Press on the “ ” button until the Red light turns Blue. 2. You should see the start up Logo shown on your TV screen. 3. Please wait a few moment for the system to load up. 4.
  • Page 9 All manuals and user guides at all-guides.com 6.2 Shut Down 1 . C l i c k “ ” B u t t o n . 2 . W h e n t h e p o p u p w i n d o w a p p e a r s t o a s k y o u i f y o u w a n t t o s h u t d o w n o r n o t , p l e a s e c l i c k “...
  • Page 10 All manuals and user guides at all-guides.com 6.5 Main page function 功 能 描 Return back to previous screen 述 Back to Home Review recent used applications and in operating applications Screenshot Volume down Volume up V ideo mode Power off more option / submenu Application button Network connection indicator...
  • Page 11 All manuals and user guides at all-guides.com 7.Setup 7.1 Language Setup Press “ ”Setting > Language setup > Language selection 7.2 Input method setup If you need other input selection please download from the APK apps market.
  • Page 12 All manuals and user guides at all-guides.com 7.3 W i-Fi Connection 1. In Setup screen, press W i-Fi. 2. Connectable W i-Fi will appear on the right hand side. 3. Choose your W i-Fi Connection.
  • Page 13 All manuals and user guides at all-guides.com 7.4 LAN Connection 1. USB RJ45 network card is not included. 2. Connect the internet line into the LAN port. 3. Please confirm your internet is connected. 4. Click on “more option”. 5. Choose Ethernet. 6.
  • Page 14 All manuals and user guides at all-guides.com 7.5 Bluetooth Connection 1. Enter “setup” Click on Bluetooth. 2. After the Bluetooth is turned on it will automatically search for connectable devices. 3. Click on the Bluetooth you want to connect to. NOTE: * If you can not connect to your Bluetooth device, please confirm if your device need to be turned on to...
  • Page 15 All manuals and user guides at all-guides.com 8.Miracast Connection Miracast is a peer-to-peer wireless screencast standard formed via W i-Fi Direct connections in a manner similar to Bluetooth. It enables wireless or wired delivery of compressed standard or high-definition video to or from desktops, tablets, mobile phones, and other devices.
  • Page 16 All manuals and user guides at all-guides.com 8.1 Turning On Miracast 1. Turn on your “Screen share function” on your mobile device. (you should find this function under setting in your Android phone) 2. Press on “ Miracast” to turn on the receiver. 3.
  • Page 17 All manuals and user guides at all-guides.com 4. When connectable Miracast mobile device is found, it will shown on the right hand side screen under usable devices. 5. Click on the device that you would like to connect. 6. W ill connect to the device automatically. 7.
  • Page 18 All manuals and user guides at all-guides.com 9.DLNA DLNA can play movies, display photos, play music. All devices must in under the same network. 1. Click on FireAire to make sure it is turned on. 2. Turn on your mobile device’s DLNA transfer software. 3.
  • Page 19 All manuals and user guides at all-guides.com 10. USB Devices connection instruction The biggest difference of QPI-1 is its compatibility with varies USB devices. Even though there’s only two USB port, through connection of a USB HUB we are able to connect to numbers of USB devices.
  • Page 20 All manuals and user guides at all-guides.com 4. After you enter the File manager you should see your USB device shown below. 5. Click on USB device and you should see all the files in your device.
  • Page 21 All manuals and user guides at all-guides.com 11.Personalize 11.1 Sound Here you can set media volumes and alarm volumes. 11.2 Display Move to “Display”,press to enter into system display settings. There are four functions including Wallpaper, Output mode,Display position and Font size...
  • Page 22 All manuals and user guides at all-guides.com 11.4 Main screen setup Adding application icon to main screen There are totally 5pages on your main screen, you are able to add application icons onto your main screen for ease of use. 1.
  • Page 23 All manuals and user guides at all-guides.com 12.W idget setup 1. Click to enter the application window. 2. Click on the top left of the screen where it says “widgets”. 3. Choose your widget and place it on your main screen.
  • Page 24 All manuals and user guides at all-guides.com 13.Back up and reset Backup: Back up all your data onto your Google account. Restore:Reset to factory setting. NOTE: If you did not back up and restore the device, all your applicationand data will be deleted.
  • Page 25 All manuals and user guides at all-guides.com 14.Remove unused aplication Android 4.2.2 is a multi-functional platform. It enables numbers of application to run at the same time and in the background. These application will not close unless you turn it off in the background, and this may affect the performance of.
  • Page 26 All manuals and user guides at all-guides.com 15.Application management You are able to download applications from either Google play store or other App Stores. After downloading these applications it will prompt you for installation, or automatically install onto your system. NOTE: * Some of the application will automatically add icons to your main page.
  • Page 27 All manuals and user guides at all-guides.com 15.1 Remove unused aplication Android 4.2.2 is a multi-functional platform. It enables numbers of application to run at the same time and in the background. These application will not close unless you turn it off in the background, and this may affect the performance of.
  • Page 28 All manuals and user guides at all-guides.com 16.Upgrading your system QPI-1 will upgrade system occasionally if in need. supports both online upgrade and SD card upgrade. Please contact help center if you are not able to upgrade your system. You will be able to find the system upgrade under “Setting”...
  • Page 29 2. Possibility of system halted, re-insert with power adaptor to restart. 6. NO sound during movies Playback 1. The audio codec may not be supported by the QPI-1 You can change to the supported audio on playing menu. 2. Check the volume setting.
  • Page 30 All manuals and user guides at all-guides.com 18.Safety Usage Guide CAUTION 1. Please keep the device and the power adapter in a well ventilated place. 2. Insert or pull the plug from the socket, be sure to hold tight the power adapter plug part. 3.
  • Page 31 All manuals and user guides at all-guides.com WARNING 1. Please read following notices & this manual carefully before you start to use this device. 2. Don't try to open this device and add additional accessories on your own nor do any change on them. 3.
  • Page 32 All manuals and user guides at all-guides.com Please don't use or put this device in following places: 1. In areas with extreme temperature change（ Such as direct sunlight exposed cars' inside, on the heat pipes or equipment） 2. Humid environment. (such as bathrooms, toilets) 3.
  • Page 33 All manuals and user guides at all-guides.com 20.Specification Main Function Operating System Android 4.2.2 Browser Browser webpage Online video WEB Browser Online Music Connect internet online listen to music VIDEO 1080P (1920*1080)，AVI/ MKV/TS/M2TS/MPG/MOV/ VOB/WMV/RM/RMVB/FLV Frequency MP3/OGG/WMA/AAC/FLAC LANGUAGE Support Multiple Menu Language Picture browsing JPG,JPEG,BMP,PNG,GIF...

  • Page 34: Ddr3 Sdram

    All manuals and user guides at all-guides.com Hardware Standard ARM Cortex A7 Basic frequency 1.8GHz Dual Core 1G DDR3 SDRAM Storage space 16G Nand flash Operating System Android 4.2.2 USB 2.0 HOST×2 Memory card MAX 32GB TF card WIFI Intel 802.11g Bluetooth Control mode USB Mouse, Remote Control,...
