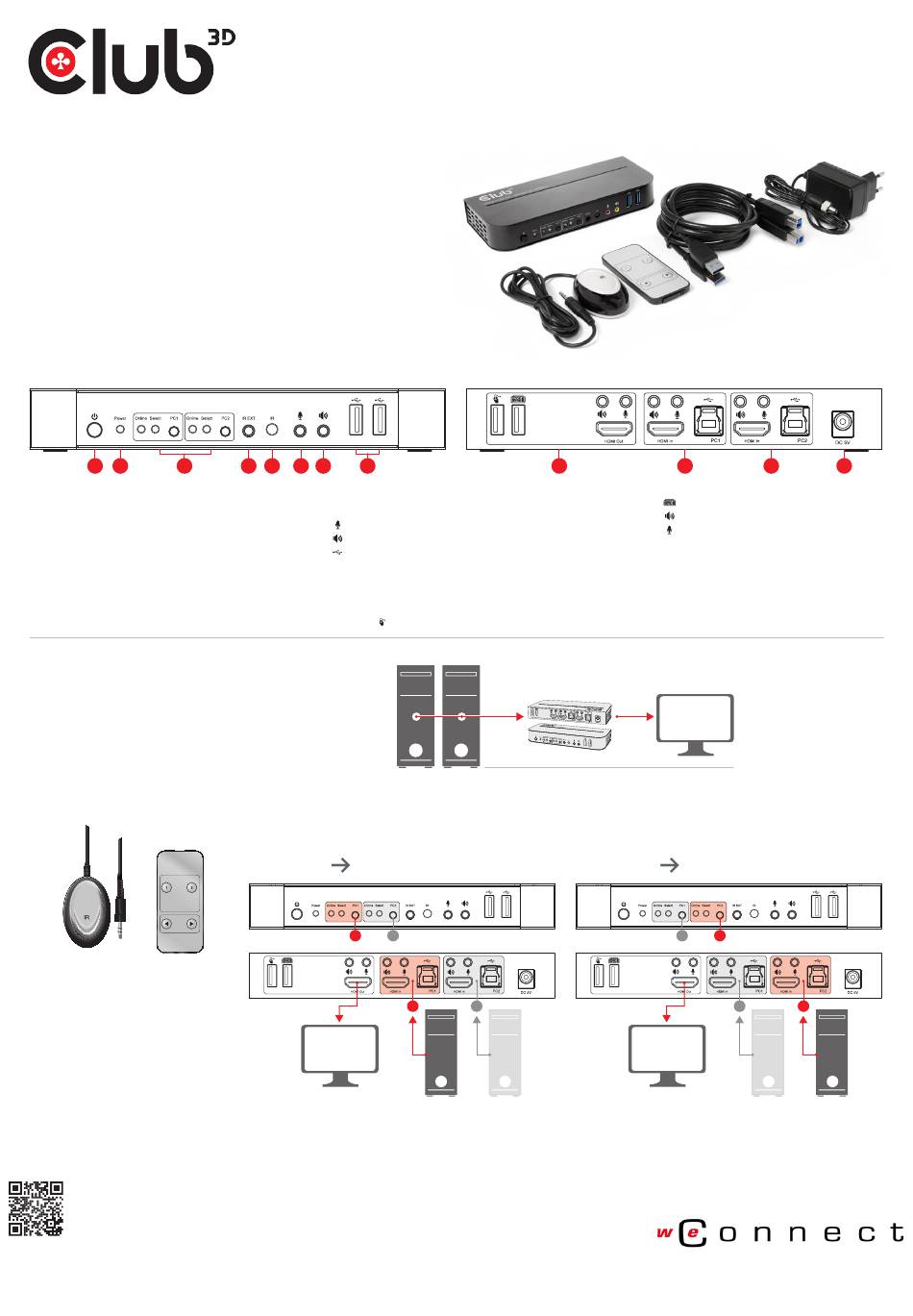

Club 3D CSV-1382 Quick Installation Manual

Thank you for purchasing our CSV-1382 Product. After un-
packing the product, please make sure you have all the items
provided and checked for any damages. In case of any missing/
damaged parts please inform your supplier immediately.
You should have:
• CSV-1382
• 5V/3A Power Adapter x1
• IR Remote Control x1
• IR Extender x1
• USB Gen1-B Male to USB Gen1-A Male Cable x2
• QIG, Quick Installation Guide
1 2
FRONT
Front Panel
1 Power Button: Press to turn on/off the unit.
2 Power Indicator: The LED will light up once the DC/5V
is provided and the unit is turned on.
3 Input Selection: When PC1/PC2 is selected, the cor-
responding "Select" lights up to indicate input selec-
tion("Select" LEDs flash in a loop under automatic
switching mode). "Online" LED lights up when the
corresponding USB-B port is connected.
4 IR EXT: Connect IR Extender to this port for IR signal
How it works!
This is a high-performance HDMI™-
KVM switcher. It routes high definition
video (in multiple resolutions up to
4kx2k@60Hz) and audio from any one
of the several sources to display units.
This HDMI™-KVM switcher not only has
the key-press-switching function, but
also has intelligent function as well as
hot pluggable function.
The IR Extender The IR Remote Control
40x60x25mm 40x87x6.5mm
Switch easily between the two
connected computers.
This can be done using the
PC1 or PC2,
selection buttons
on the front of the unit.
Or user the Remote Controller.
After connecting the IR Extender
to the IR port, you can use the
Remote Control when the CSV-1382
40x60x25mm 40x87x6.5mm
unit is behind the display or computer.
1/2
Disclaimer:
While we endeavor to provide the most accurate, up-to-date information available, the content on this document may be out of date or include omissions, inaccuracies or other errors. Therefore Club 3D does not accept any rights claimed on the content of this document.
Please refer to a full overview of our Legacy Terms and Conditions on www.club-3d.com. All other brand names are trademarks or registered trademarks and are the property of their respective owners. All content is subject to change without prior notice.
CSV-1382 QIG 03-2021
C S V -1 3 8 2 Q U I C K I N S TA L L AT I O N G U I D E
HDMI™ KVM SWITCH FOR DUAL HDMI™ 4K 60Hz
3 4 5 6 7
reception from the remote control.
5
IR: For IR signal reception from the remote control.
6
: 3.5mm MIC input port.
7 : 3.5mm stereo output port.
8
: USB Gen1 ports, mainly used for connecting to
printers, scanners, U-disk, etc.
Back Panel
How it works
9 Output ports:
Connect
1
PC
1
HDMI™™ Display
Output up to: 4Kx2K@60Hz*
CSV-1382 Unit
IR Extender
8 BACK
to a mouse or a keyboard.
PC PC
1 2
Connect two PC's to one HDMI™ Display
to HDMI™ Display
FRONT
2
1 2
PC PC
1 2
IR Remote Control
9 10
Connect to a keyboard or a mouse.
Connect to an amplifier.
Connect to a MIC.
Connect "HDMI™ Out" to HDMI™ display.
10 PC1 input ports: Respectively connect to HDMI™,
USB, MIC, stereo ports of PC1.
11 PC2 input ports: Respectively connect to HDMI™,
USB, MIC, stereo ports of PC2.
DC 5V: Plug the 5V DC power supply into the unit.
12
HDMI™ Display
CSV-1382
2
PC to HDMI™ Display
1
BACK
HDMI™ Display
Output up to: 4Kx2K@60Hz*
Copyright © 2022, Club 3D B.V.
Power Adapter
2x: USB Gen1-B Male to
USB Gen1-A Male Cable
11 12
FRONT
2
BACK
1 2
PC PC
1 2
* Depends on input source resolution.
